Eddy current testing (ECT) has become the industry-standard method for catching these flaws before they cause harm. It's fast, it doesn't damage the part, and it works on the conductive alloys most critical tubing is made from.
This article covers how ECT works, what defects it catches, when to use it, and the different techniques available for stainless steel, titanium, and nickel-alloy tubing.
Key Takeaways
- ECT finds flaws in conductive tubes through electromagnetic induction, with no contact or damage
- Detects cracks, pitting, corrosion, wall loss, and weld defects in seamless and welded tubes
- Conventional, remote field, near field, and array techniques match specific materials and applications
- Sourcing tubing from a certified supplier cuts the risk of downstream ECT rejections
What Is Eddy Current Testing for Tubes?
Eddy current testing is a non-destructive, electromagnetic inspection method. An energized coil generates alternating currents, called eddy currents, in the conductive tube material as the probe passes through or around it.
When the eddy currents hit a flaw, such as a crack, pit, or area of wall loss, the coil's electrical impedance shifts. That shift appears as a signal change on the inspection screen and marks the defect's location and, often, its approximate size.
ECT works best on:
- Non-magnetic conductive metals (stainless steel, titanium)
- Mildly ferromagnetic nickel alloys
- Seamless and welded tube forms
The method is governed by ASTM standards that vary by material. ASTM E426 covers seamless and welded titanium, austenitic stainless steel, and similar alloys for tubes from 0.125 to 5 inches in diameter. ASTM E571 covers nickel and nickel-alloy tubular products up to 2 inches OD.
Both standards call for encircling-coil or probe-coil techniques so results stay consistent and repeatable.
How Is an Eddy Current Test for Tubes Performed?
The tube passes through or near an energized sensor coil. As it moves, any discontinuity in the material disturbs the eddy current flow, creating a measurable signal change.
Coil Configurations
Two main coil setups handle different inspection needs:
- Encircling coils wrap around the full tube circumference, providing complete coverage. These are common for final inspection with offline handling.
- Segment coils target specific areas, such as weld seams, and are often installed directly on manufacturing lines for real-time weld-quality feedback.

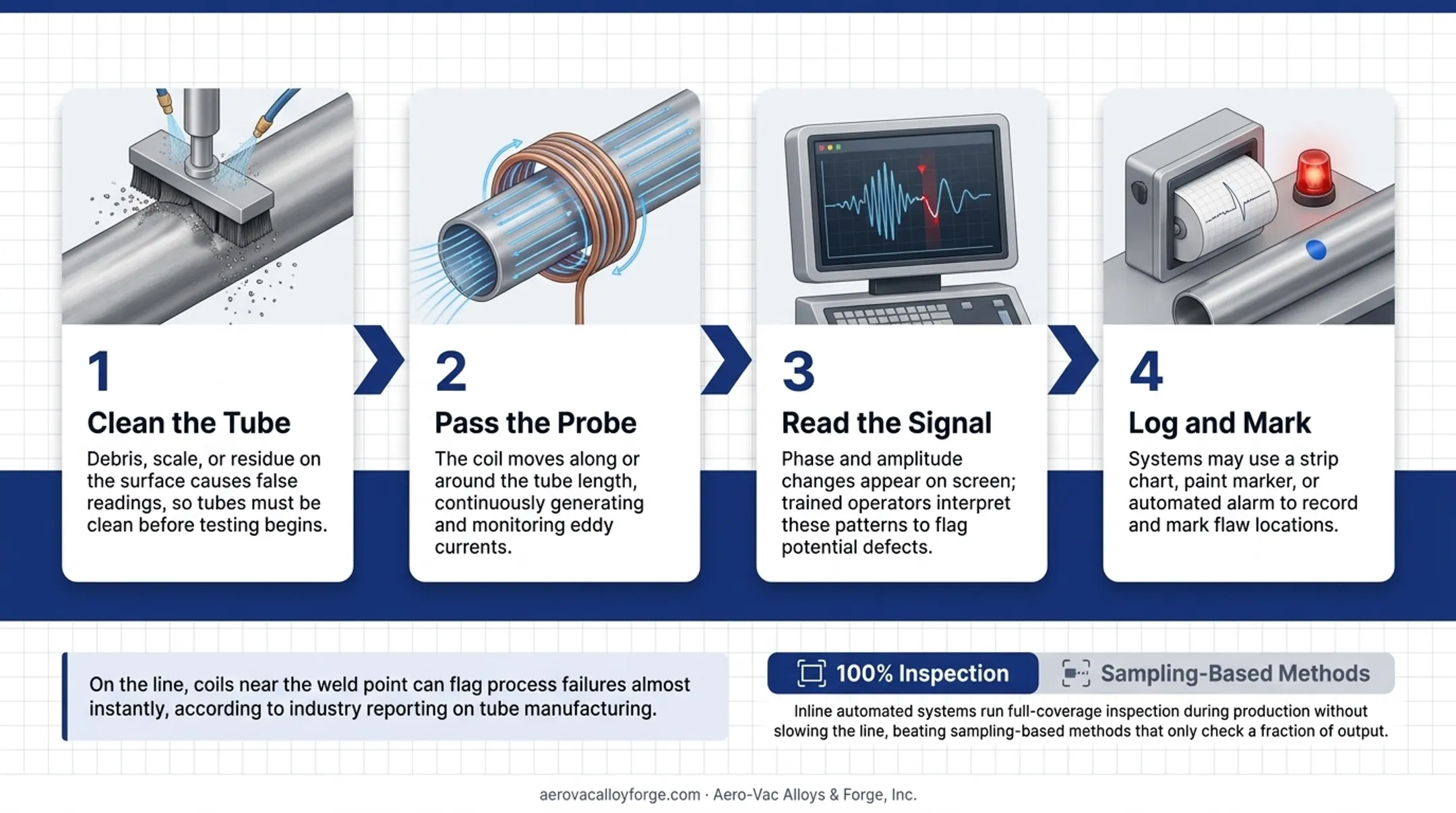

The Inspection Process
- Clean the tube — Debris, scale, or residue on the surface causes false readings, so tubes must be clean before testing begins.
- Pass the probe — The coil moves along or around the tube length, continuously generating and monitoring eddy currents.
- Read the signal — Phase and amplitude changes appear on screen; trained operators interpret these patterns to flag potential defects.
- Log and mark — Systems may use a strip chart, paint marker, or automated alarm to record and mark flaw locations.
On the line, coils near the weld point can flag process failures almost instantly, according to industry reporting on tube manufacturing. Inline automated systems take this further, running 100% inspection during production without slowing the line. That full-coverage approach beats sampling-based methods, which only check a fraction of output.
What Defects Can an Eddy Current Test for Tubes Detect?
ECT is built to find discontinuities that visual inspection cannot catch. According to ASTM E426, the method locates pits, voids, inclusions, cracks, and abrupt structural changes.
Defects in Welded Tubes
- Scarfing cracks along the weld seam
- Porosity from welding current or contact-pressure issues
- Lack of fusion or weak welds
- Misalignment and undercut at the seam
- Inclusions and cold shuts
Defects in Seamless Tubes
- Surface cracks and laps
- Laminations
- Internal voids
- Eccentricity
- Overheating and scale

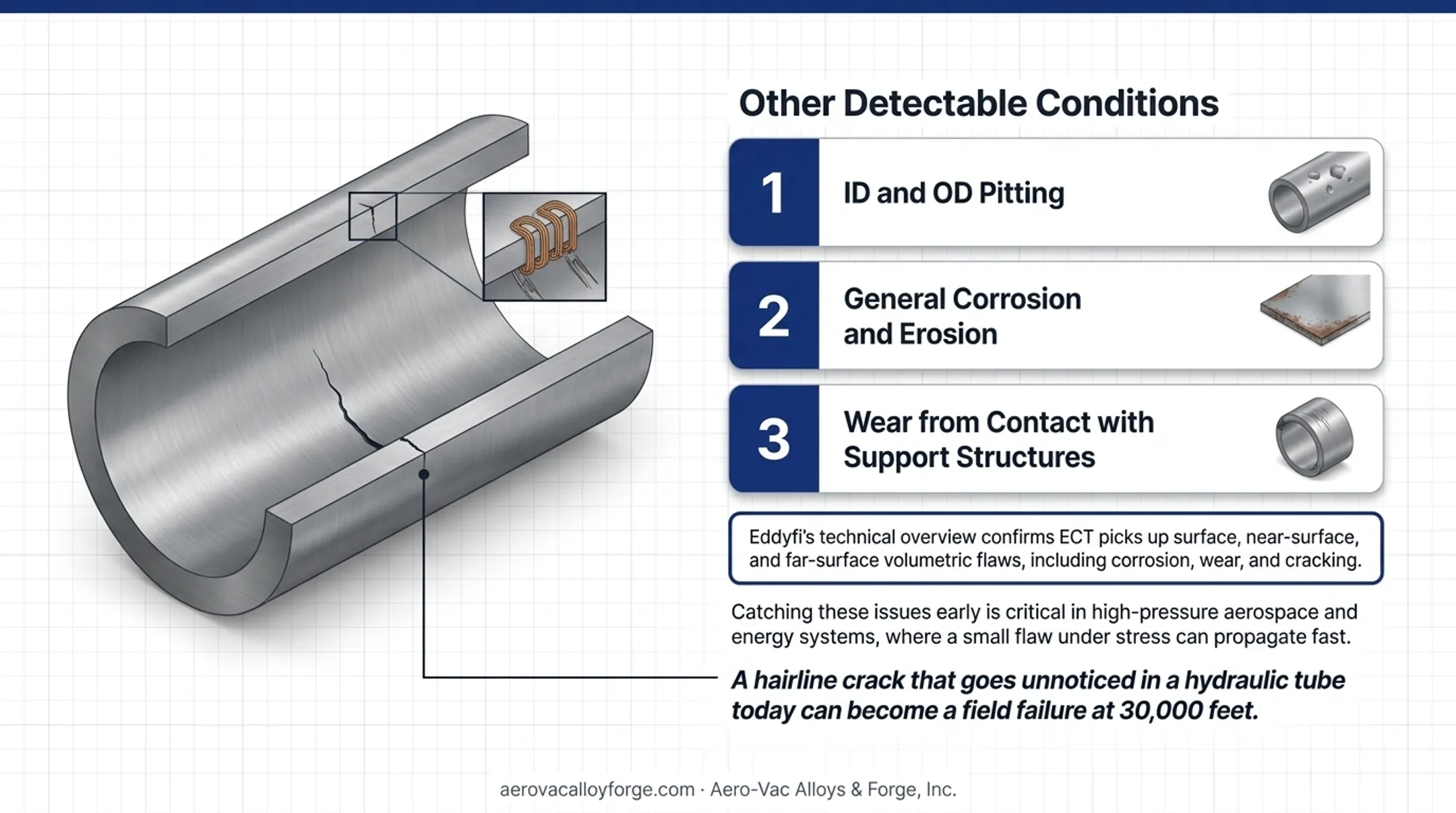

Other Detectable Conditions
- ID and OD pitting
- General corrosion and erosion
- Wear from contact with support structures
Eddyfi's technical overview confirms ECT picks up surface, near-surface, and far-surface volumetric flaws, including corrosion, wear, and cracking.
Catching these issues early is critical in high-pressure aerospace and energy systems, where a small flaw under stress can propagate fast. A hairline crack that goes unnoticed in a hydraulic tube today can become a field failure at 30,000 feet.
When Should You Use Eddy Current Testing for Tubes?
ECT fits into two main use cases: incoming inspection and in-service monitoring.
Incoming inspection should be standard practice for new tube stock, particularly for aerospace and defense applications where a single defective tube can compromise an entire assembly. Verifying material integrity before it enters production saves far more than it costs.
In-service testing applies to tubes already in operation, especially heat exchanger and condenser tubing. EPRI notes that periodic inspection of heat-exchanger and condenser tubes is necessary to maintain plant operability, and that tubing can fail between scheduled outages if degradation goes undetected.
Inspection intervals aren't universal. They depend on:
- The component and its criticality
- Operating environment
- Known degradation mechanisms
ECT makes the most sense whenever you need to verify tube integrity without disassembly or destructive sampling. You get a clear answer on tube condition and keep the part intact.

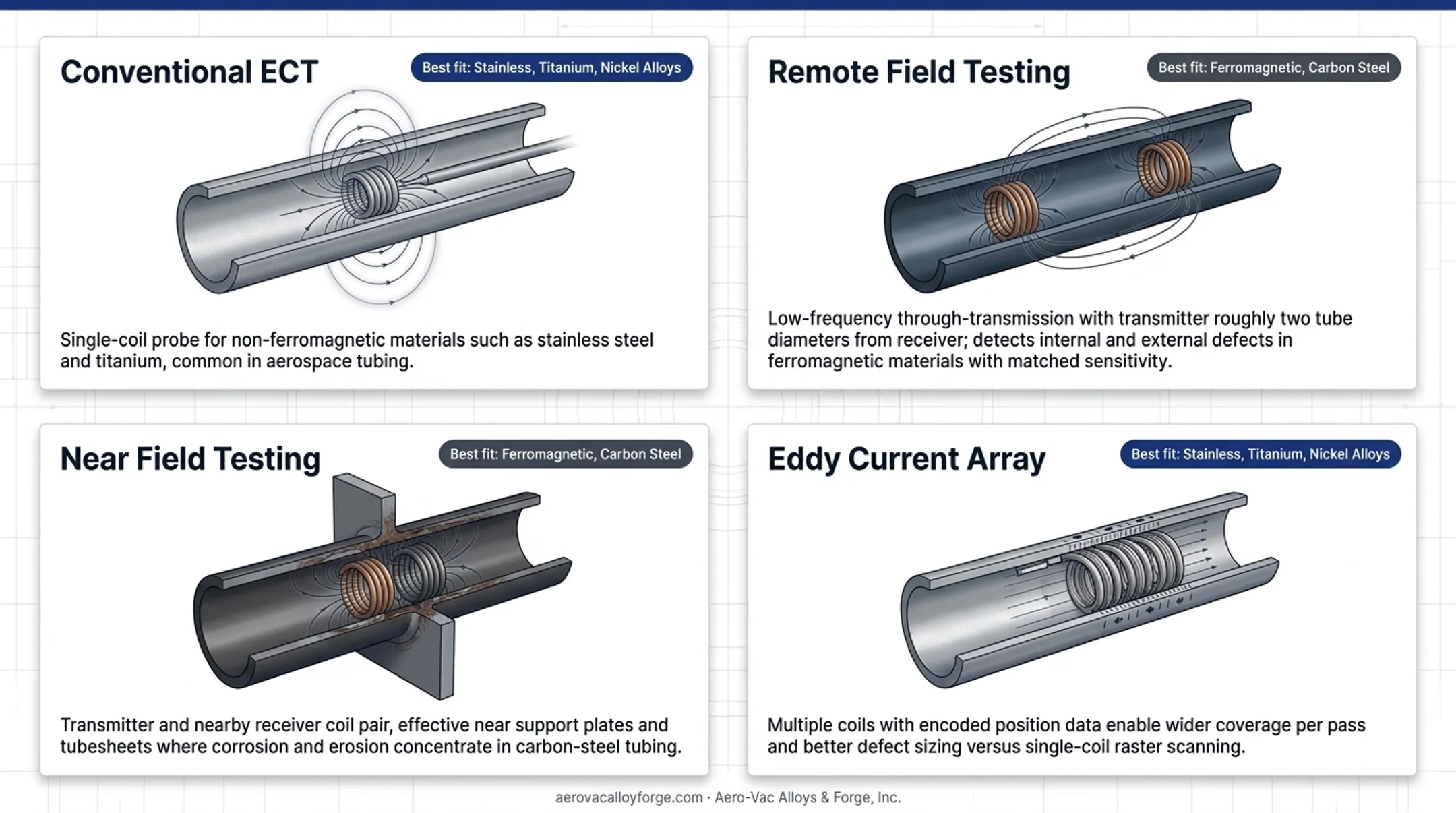

What Are the Different Types of Eddy Current Testing for Tubes?
Not every ECT technique suits every tube material. Here's how the main types break down:
| Technique | Best For | Key Application |
|---|---|---|
| Conventional ECT | Non-ferromagnetic tubes (stainless, titanium) | Surface and near-surface defects |
| Remote Field Testing (RFT) | Ferromagnetic tube materials | Inspecting inner and outer surfaces with equal sensitivity |
| Near Field Testing (NFT) | Ferromagnetic, carbon-steel tubing | Detecting thinning from corrosion/erosion |
| Eddy Current Array (ECA) | Larger-area scanning needs | Faster coverage with detailed defect mapping |
Conventional ECT uses a single-coil probe and works well for the non-ferromagnetic materials common in aerospace tubing, such as stainless steel and titanium.
Remote Field Testing uses low-frequency currents, positioning transmitter coils roughly two tube diameters from the receiver. This through-transmission approach is intended for ferromagnetic materials and detects internal and external defects with matched sensitivity.
Near Field Testing uses a transmitter and nearby receiver coil pair. It's particularly effective near support plates and tubesheets in carbon-steel tubing, where corrosion and erosion tend to concentrate.
Eddy Current Array places multiple coils side by side in one probe assembly, each generating its own signal tied to encoded position data. This means wider coverage per pass and better defect sizing compared to raster-scanning with a single-coil probe.
For stainless, titanium, and nickel-alloy tubing, conventional ECT and ECA are typically the better fit. RFT and NFT are built primarily for ferromagnetic and carbon-steel applications.
How Accurate Is Eddy Current Testing, and Why Tube Quality Matters

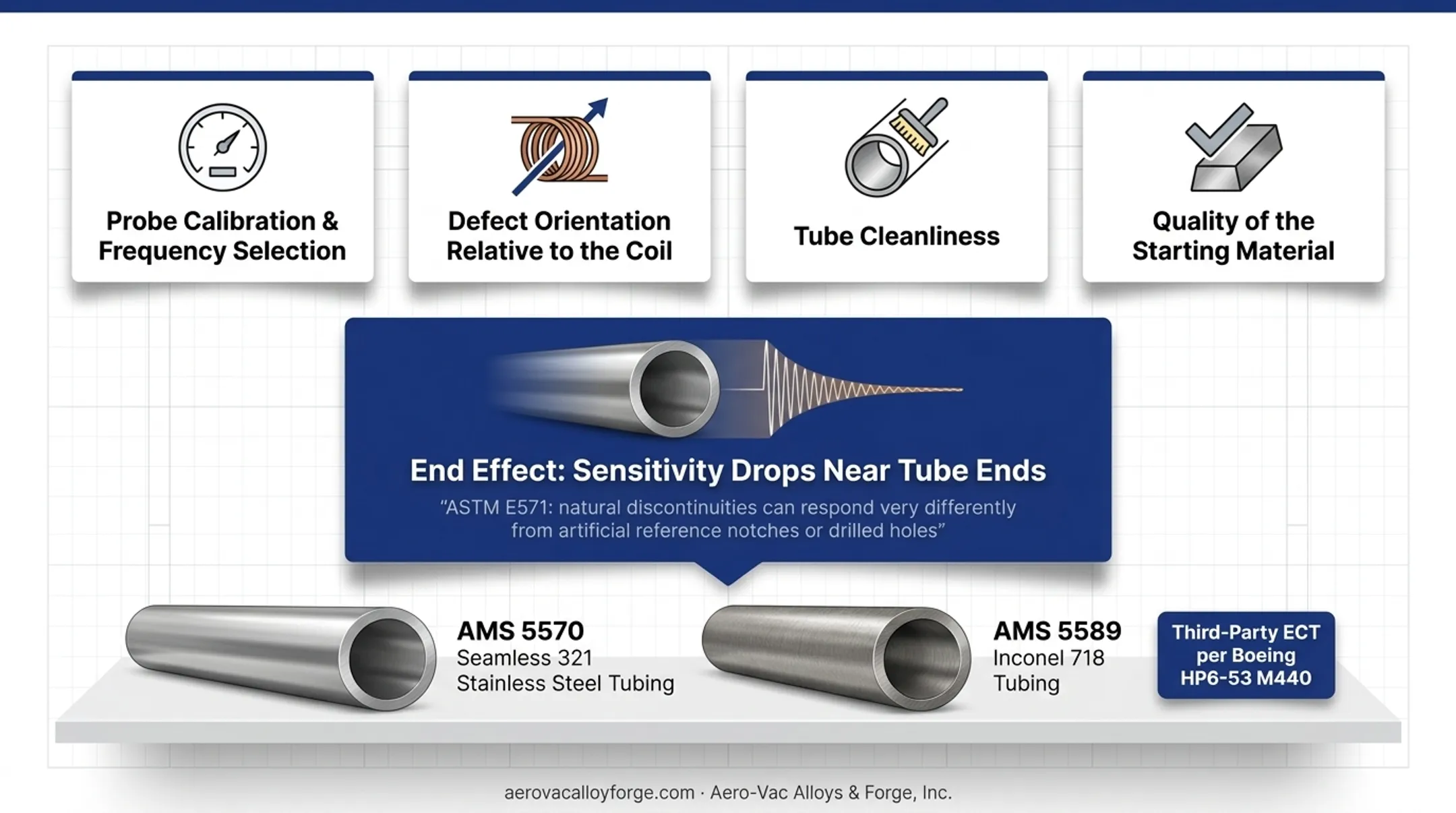

ECT accuracy isn't a fixed number. It depends on several factors:
- Probe calibration and frequency selection
- Defect orientation relative to the coil
- Tube cleanliness
- Quality of the starting material
ASTM E571 cautions that natural discontinuities can respond very differently from the artificial reference notches or drilled holes used to calibrate equipment. The test setup must be tuned to the specific flaw types relevant to the tube's end use. Sensitivity also drops near tube ends—a limitation known as end effect.
When properly calibrated, ECT detects flaws far smaller than the human eye can catch. That sensitivity is why shops rely on it over visual inspection alone.
Even a perfectly calibrated ECT setup can't compensate for bad starting material. Tubing with hidden mill-process flaws, inconsistent wall thickness, or poor surface finish generates noisy signals. That noise raises the chance of false rejects—or worse, missed defects.
This is where sourcing matters as much as the test itself. Aero-Vac Alloys & Forge, an ISO 9001:2008 and AS9100-certified manufacturing distributor, supplies seamless and welded tubing built to specification-level compliance from the outset, including:
- AMS 5570 seamless 321 stainless steel tubing
- AMS 5589 Inconel 718 tubing
- Additional stainless, nickel alloy, and alloy steel grades for aerospace, defense, and power generation
Aero-Vac also offers independent third-party material testing, including eddy current inspection under Boeing Specification HP6-53 M440, to verify conformance before shipment. Starting with tubing that meets these standards helps customers avoid rejected lots and repeated inspection cycles.
Frequently Asked Questions
What is eddy current testing for tubes?
Eddy current testing is a non-destructive electromagnetic method that uses an energized coil to find flaws in conductive tube materials. It detects cracks, pitting, and wall loss without damaging the tube.
How is an eddy current test for tubes performed?
A probe passes through or around the tube while generating eddy currents. Encircling coils cover the full circumference, while segment coils target areas like weld seams; signal changes on screen flag defects.
When should you use eddy current testing for tubes?
Use it during incoming inspection of new tube stock, especially for critical aerospace and defense applications. It's also used periodically on in-service heat exchanger and condenser tubing based on operating conditions.
What defects can an eddy current test for tubes detect?
ECT finds cracks, porosity, lack of fusion, and undercut in welded tubes, plus laps, laminations, and voids in seamless tubes. It also detects corrosion, pitting, and wall loss from erosion.
How accurate is eddy current testing for tubes?
Accuracy depends on probe calibration, frequency, and starting material quality. Properly calibrated ECT is far more sensitive than visual inspection, but results vary by tube alloy, geometry, and defect type.
What are the different types of eddy current testing for tubes?
Conventional ECT suits non-ferromagnetic tubes like stainless and titanium. Remote field and near field testing target ferromagnetic materials, while eddy current array offers faster, multi-coil scanning for larger areas.
