Choosing the wrong one costs you. It affects part strength, dimensional tolerances, lead time, and total program cost, especially when you're sourcing forged alloy steel under tight specs. This article breaks down the definitions, the process differences, and situational guidance so engineers and procurement teams can choose with confidence.
TL;DR
- Open die forging suits large, custom, low-volume parts that need strong grain flow and simple unenclosed dies
- Fully enclosed dies make closed die forging the better fit for complex, high-volume, precision parts
- Tooling cost, dimensional precision, volume, and geometry complexity drive the open vs. closed choice
- Your choice hinges on part size, geometry, order volume, and budget
- Certified alloy steel supply matters as much as the forging process you pick
Open Die vs Closed Die Forging: Quick Comparison
| Factor | Open Die | Closed Die |
|---|---|---|
| Tooling cost | Lower; simple, reusable dies | Higher upfront; custom cavities pay off at volume |
| Precision | Often needs secondary machining | Near-net-shape, tighter tolerances |
| Production volume | Best for low-to-medium runs | Best for high-volume runs |
| Part complexity | Simple shapes: shafts, blocks, rings | Complex geometries: gears, brackets |
| Material waste | Minimal, reworkable excess | Higher due to flash and trimming |
According to Canton Drop Forge's process comparison, closed die forging rarely pays off on short runs because die costs erase the savings, while open die parts often need follow-up machining. Choose closed die when volume and near-net shape justify the tooling; choose open die when flexibility and lower setup cost matter more.
What Is Open Die Forging?
Open die forging, also called free forging or smith forging, shapes heated metal between simple, unenclosed dies. Think hammer and anvil, not a mold. The workpiece sits between dies that never fully enclose it, so an operator or manipulator controls each reduction and rotation manually.
That hands-on control is why open die parts show excellent grain flow. Grain flow strengthens critical stress points, which is a major reason forgings outperform castings in fatigue-critical applications.

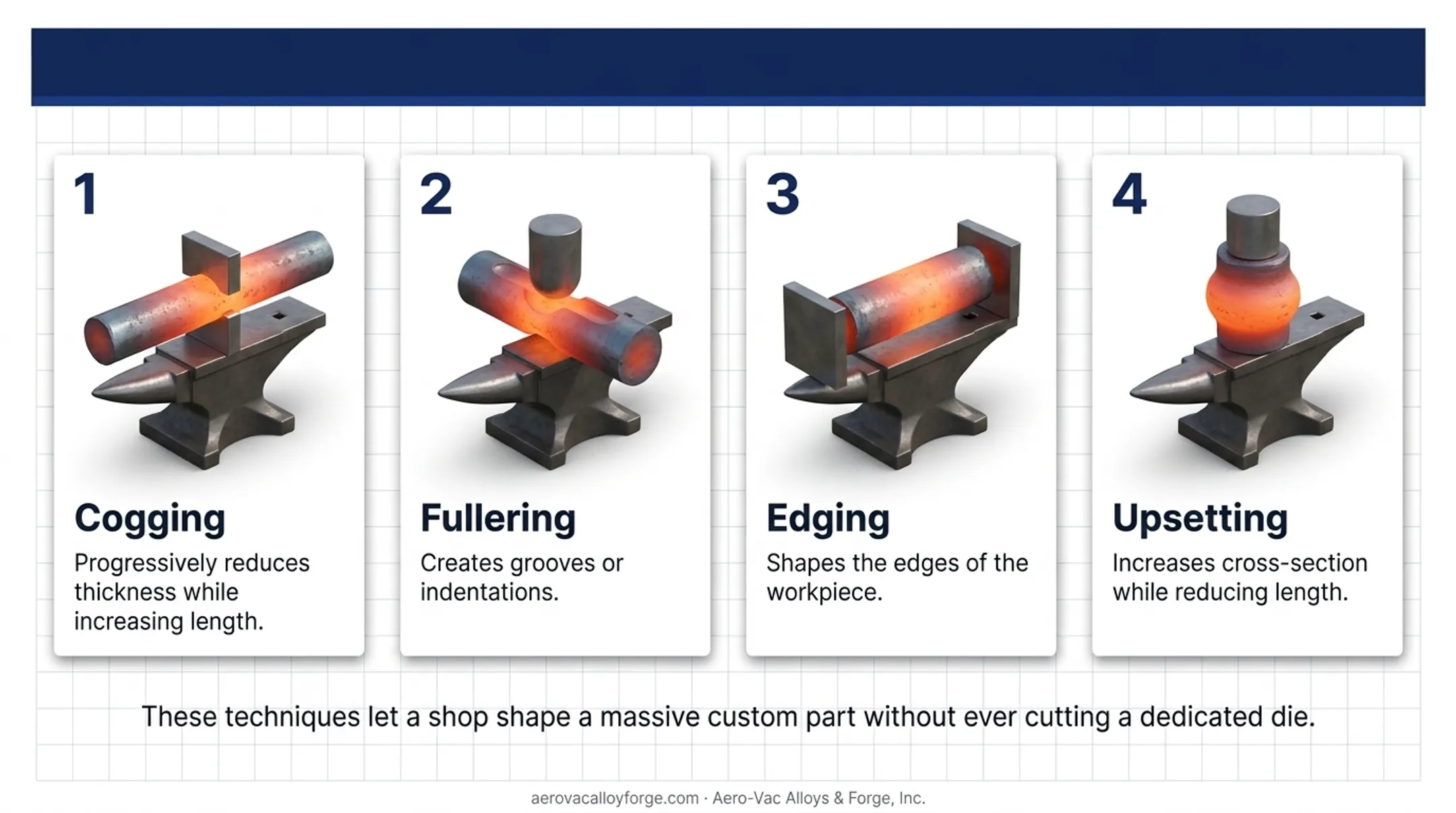

Common Open Die Techniques
- Cogging: progressively reduces thickness while increasing length
- Fullering: creates grooves or indentations
- Edging: shapes the edges of the workpiece
- Upsetting: increases cross-section while reducing length
These techniques let a shop shape a massive custom part without ever cutting a dedicated die.
Use Cases of Open Die Forging
Open die shines with large custom components, prototypes, and specialty alloy parts for oil and gas, power generation, aerospace, defense, and heavy equipment. Typical parts include large shafts, rings, rotors, and pressure vessel components. Distributors such as Aero-Vac Alloys & Forge support these programs with alloy supply and related forging and processing services.
Ellwood City Forge, for example, runs open-die presses rated at 1,500, 4,500, and 5,000 tons, capable of forging parts up to 70,000 lb and 57 feet long. That's the scale open die was built for.
Scale alone is not the full story—grain structure decides how those large parts hold up in service.
A 2007 SAE study comparing forged-steel and ductile-cast-iron crankshafts found forged steel delivered higher tensile strength and roughly six times longer fatigue life at a given bending-moment amplitude. That figure is case-specific, not universal, but it shows why forged grain structure matters for load-bearing components.
What Is Closed Die Forging?
Closed die forging, also known as impression die forging, places hot metal between custom-shaped dies that fully enclose the workpiece. Pressing or hammering forces the metal to fill the die cavity completely, producing a part that's close to its final shape right out of the press.
This near-net-shape result cuts down secondary machining and gives you tight, repeatable tolerances run after run. That consistency is exactly why high-volume manufacturers lean on closed die.
Flash is built into the process by design. As metal fills the cavity, excess material squeezes out as flash. That flash cools quickly, builds pressure near the impression, and helps push metal into fine details and crevices. Once the part is formed, the flash gets trimmed away.
Use Cases of Closed Die Forging

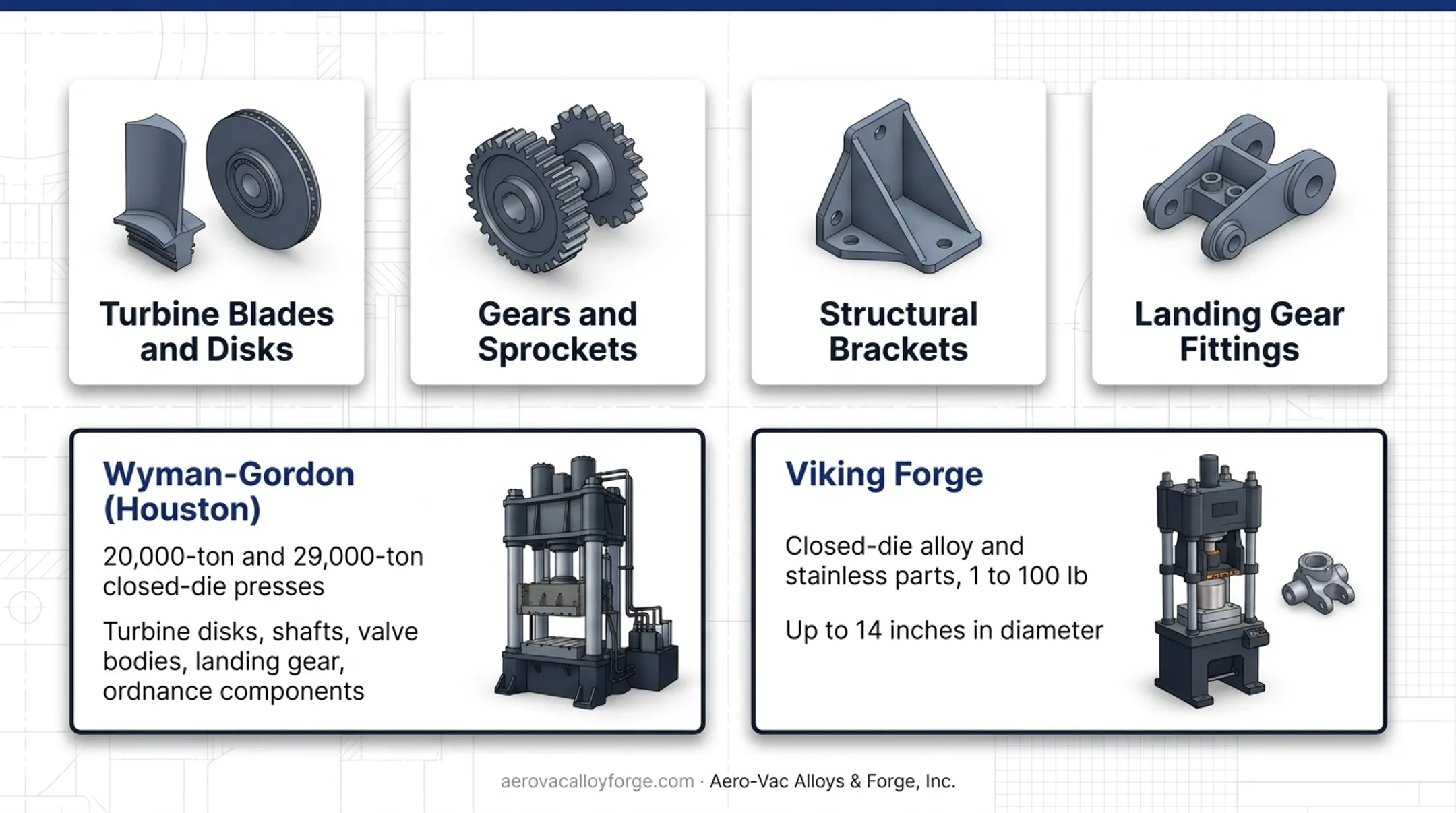

Closed die dominates high-volume, precision aerospace and automotive manufacturing. Common examples:
- Turbine blades and disks
- Gears and sprockets
- Structural brackets
- Landing gear fittings
Wyman-Gordon's Houston facility is a solid real-world benchmark. It runs 20,000-ton and 29,000-ton closed-die presses serving turbine disks, shafts, valve bodies, landing gear, and ordnance components.
On the smaller end, Viking Forge produces closed-die alloy and stainless parts from 1 to 100 lb and up to 14 inches in diameter. Press tonnage, die envelope, and alloy all shape what's actually feasible.

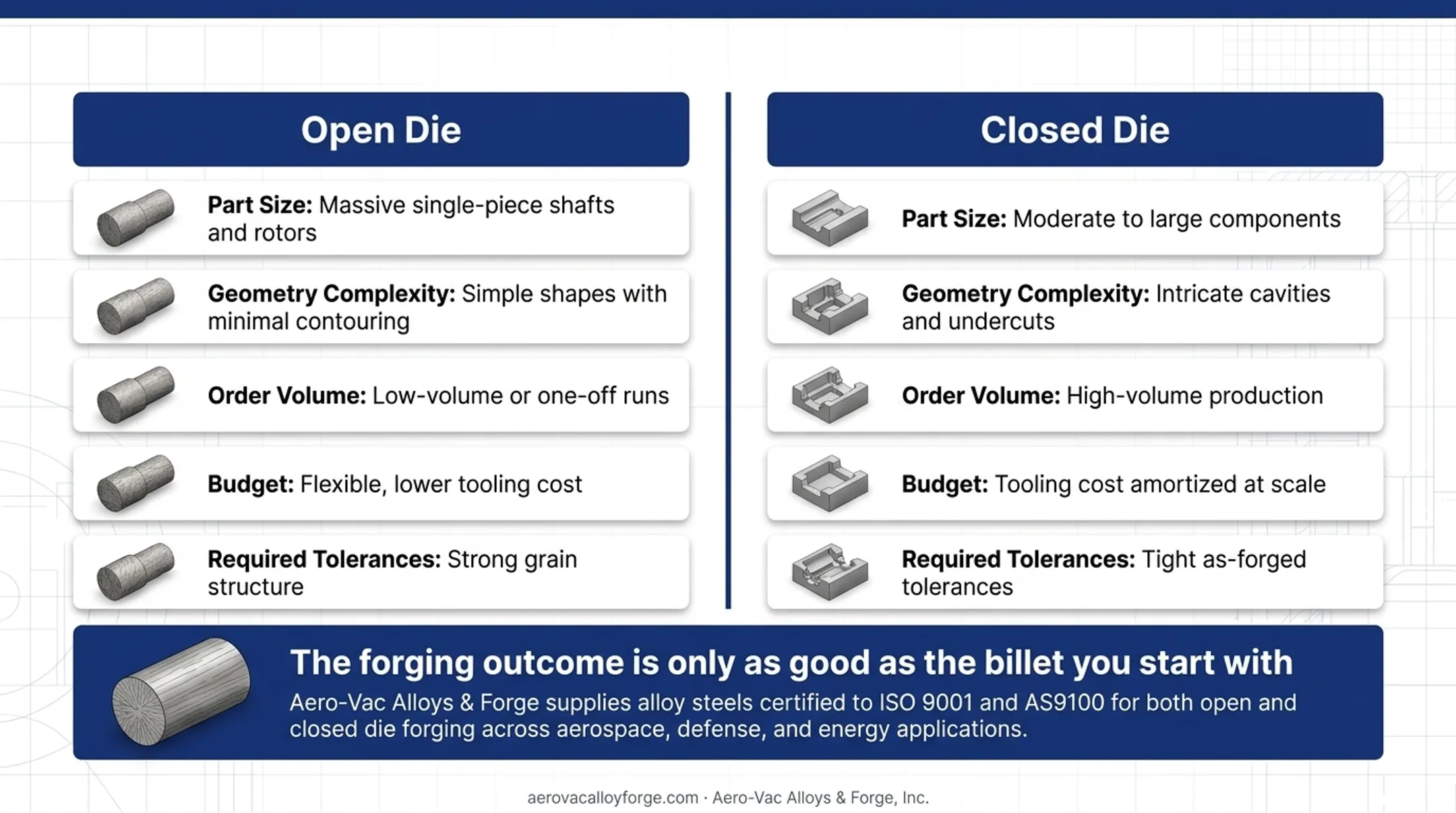

Open Die vs Closed Die: Which Is Better for Your Application?
There's no universal winner. The right call depends on weighing a handful of factors together:
- Part size — Massive single-piece shafts and rotors point toward open die almost by default
- Geometry complexity — Intricate cavities, undercuts, or fine features favor closed die
- Order volume — One-off or short-run parts rarely justify closed-die tooling costs
- Budget — Tooling investment needs to be weighed against per-part savings at scale
- Required tolerances — Tight as-forged dimensions push toward closed die
Choose open die for large, custom, or low-volume parts that need flexibility and a strong grain structure.
Choose closed die for high-volume, complex, precision-critical components where tooling cost gets amortized across the run.
Here's the part that's easy to overlook: whichever process you pick, the forging outcome is only as good as the billet you start with. Porosity, inconsistent chemistry, or poor traceability in the starting alloy steel will undermine even a perfectly executed forging.
That's where a certified supplier like Aero-Vac Alloys & Forge matters. Aero-Vac supplies alloy steels certified to ISO 9001 and AS9100 for both open and closed die forging across aerospace, defense, and energy applications.
Sourcing the Right Alloy Steel for Your Forging Process
Forging outcomes depend heavily on starting material quality, consistency, and traceability. A die design or press tonnage can't compensate for billet that's out of spec on chemistry or cleanliness.
Aero-Vac Alloys & Forge is an AS9100-certified manufacturing distributor supplying alloy steels like 4130, 4140, 4330V, 4340, 9310V, and 300M/4340M for forging operations. Stock forms include bar, forging stock, plate, and tube. Capabilities include:
- Just-in-time delivery aligned to production schedules
- In-house saw cutting for custom cuts and odd sizes
- Project-based pricing on small quantities and large orders
- Spec-driven metal buying, processing, and forging
A live contact matters when odd sizes and urgent needs don't fit a standard catalog. A forge shop's inventory is built for its typical jobs, not your specific billet requirement. Aero-Vac's team works the RFQ directly, sourcing to spec rather than substituting whatever is on the shelf.
Aerospace and defense programs also run under recognized frameworks such as AMS 6419, ASTM A921 for microalloy steel intended for hot forging, and MIL-F-7190 for aircraft and ordnance steel forgings. Those specifications give procurement teams a traceable link between the billet and the finished part.
Frequently Asked Questions
What is open die forging and how does it work?
Open die forging shapes heated metal between simple, unenclosed dies through repeated hammering or pressing. An operator controls the reductions, which is why it suits large, custom shapes rather than fixed geometries.
What are the key differences between open die forging and closed die forging?
Open die uses simple tooling, suits low-to-medium volumes, and often needs secondary machining. Closed die uses custom cavities, delivers tighter tolerances, and works best at high volume once tooling costs are spread out.
What is closed die forging and how does it work?
Closed die forging places metal between fully enclosed, custom-shaped dies. Pressing or hammering forces the metal to fill the cavity precisely, producing a near-net-shape part with minimal machining needed.
What is the maximum weight that can be forged in closed die forging?
There's no single industry maximum. Closed die capacity varies by press tonnage and part geometry; some facilities handle parts under 100 lb, while others run 20,000-ton-plus presses for much larger components.
What is a die in forging?
A die is the shaped tool that forms metal under pressure. In open die forging, it's simple hammer-and-anvil surfaces; in closed die forging, it's a custom cavity that constrains the part's final shape.
What is another name for open die forging?
Open die forging is also called free forging or smith forging, terms that reflect the manual, unenclosed nature of the process compared to cavity-based closed die methods.
