The problem: too many callouts still mix Ra, Rz, RMS, and old N-grade numbers on the same drawing package. An engineer specs 32 microinches, a vendor quotes in µm, and someone's converting by hand with a rough rule of thumb.
Standard as-machined finish from a CNC mill typically lands around 3.2 µm Ra (125 µin), according to industry references like Astro Pak's surface roughness guide. Anything smoother usually means secondary operations, and secondary operations mean added cost and lead time.
This guide breaks down the surface finish chart, explains what each parameter actually measures, and shows how to specify the right finish without overpaying for precision you don't need.
Key Takeaways
- Ra dominates US drawings; Rz and RMS still show up on international and legacy specs
- 3.2 µm Ra (125 µin) is the common as-machined default for standard CNC work
- Roughness, waviness, and lay together make up "surface texture," but most callouts only control roughness
- A conversion chart maps µm, µin, RMS, and N-grade so specs stay consistent across units
- Over-specifying finish is one of the most common (and avoidable) cost drivers in machined part quotes
What Is Surface Finish in Machining?
Surface finish, more precisely called surface texture, breaks into three components:
- Roughness: fine irregularities left directly by the cutting tool (feed marks, tool chatter at a micro level)
- Waviness: broader deviations caused by vibration, thermal effects, or machine deflection, spaced farther apart than roughness
- Lay: the directional pattern the process leaves behind, such as parallel turning marks or crosshatched grinding marks
Most drawing callouts only control roughness. That's what "surface finish" means in day-to-day shop talk, even though the full picture includes all three.
Why It Matters for Precision Parts
Surface finish specs carry real weight on:
- Sealing surfaces (O-ring grooves, gasket faces)
- Bearing races and gear contact zones
- Mating parts requiring consistent fits
- High-stress components where surface defects become crack initiation points
For customers working in bearings, gears, and forged steel components, finish requirements often trace back to fatigue life and contact stress, not just appearance.
Two standards govern how finish requirements are specified: ASME B46.1 defines surface texture and measurement methods, while ASME Y14.36 establishes how to designate roughness and waviness controls on a drawing. Neither document is a machining capability chart; both are the rulebook for symbols and definitions.

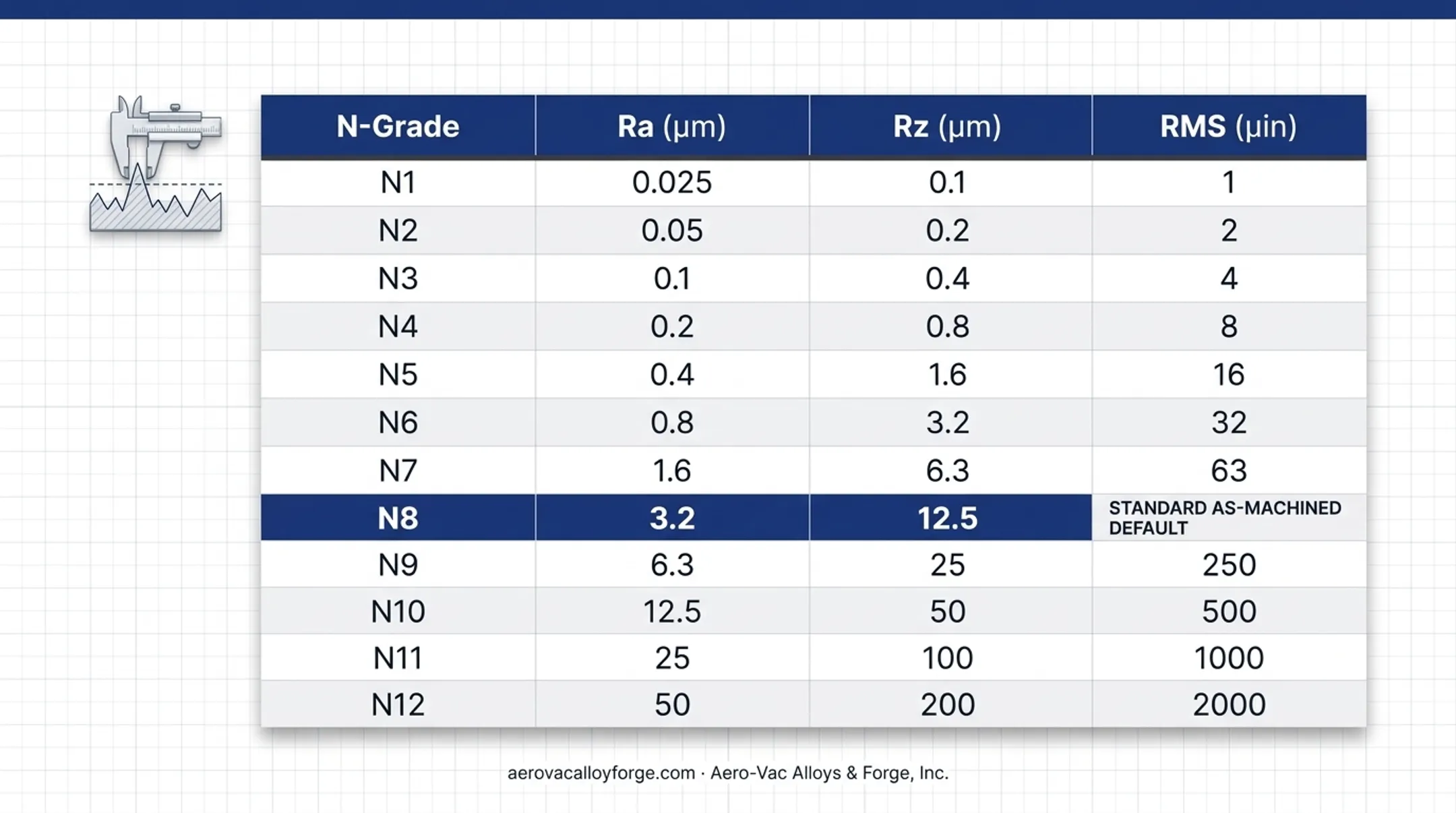

Surface Finish Machining Chart: Ra, Rz, RMS & N-Grade Conversions
Here's the conversion table engineers reach for when translating between unit systems:
| Ra (µm) | Ra (µin) | RMS (µin) | N-Grade |
|---|---|---|---|
| 0.025 | 1 | 1.1 | N1 |
| 0.05 | 2 | 2.2 | N2 |
| 0.1 | 4 | 4.4 | N3 |
| 0.2 | 8 | 8.8 | N4 |
| 0.4 | 16 | 17.6 | N5 |
| 0.8 | 32 | 35.6 | N6 |
| 1.6 | 63 | 69.3 | N7 |
| 3.2 | 125 | 137.5 | N8 |
| 6.3 | 250 | 275 | N9 |
| 12.5 | 500 | 550 | N10 |
| 25.0 | 1000 | 1100 | N11 |
| 50.0 | 2000 | 2200 | N12 |
N8 (highlighted) is the standard 3.2 µm Ra as-machined default.
Ra and Rz Measure Different Things
Ra averages every peak and valley across the sampling length. Rz averages the five deepest peak-to-valley heights. A surface can pass an Ra callout and still fail an Rz spec if a few sharp gouges sit in an otherwise smooth profile.
As a rough rule, Rz ≈ 7.2 × Ra. Use it for quick chart orientation only—not for certified aerospace or defense tolerances.
The multiplier is an approximation; the real ratio can swing well past 7.2 depending on profile uniformity. Converting a certified Rz limit into an assumed Ra limit this way is a reliable way to fail inspection.
Reading an N-Grade Callout
N-grades appear on older drawings, especially from European or legacy US specs. To translate one:
- Find the N-grade symbol on the print (N6, N8, N10, etc.)
- Cross-reference it against the table above for the equivalent Ra
- Match that Ra value to a process capable of holding it consistently (see next section)
- Confirm units before quoting—µin vs. µm mix-ups are a common cause of rework

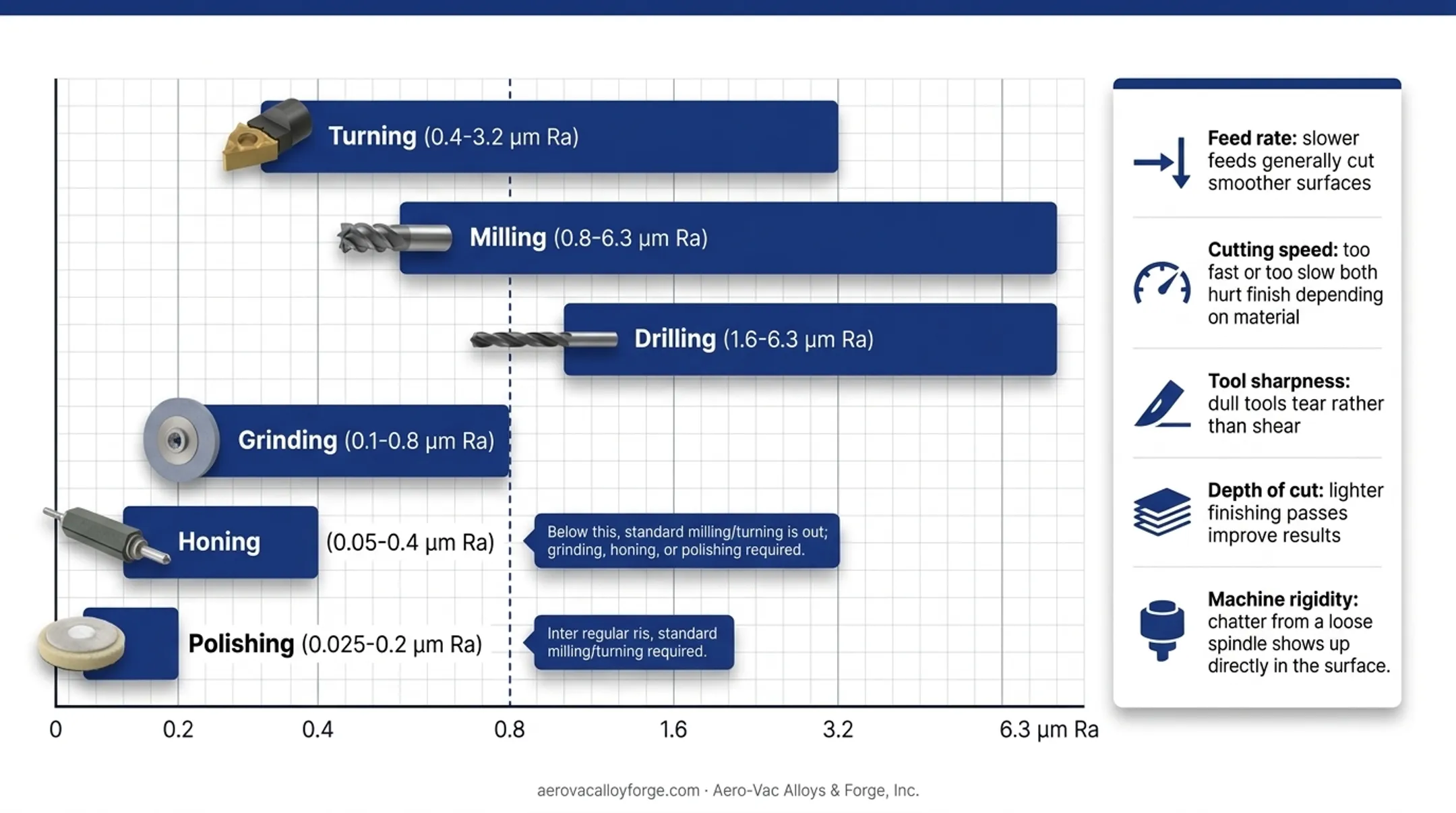

What Surface Finish Can Different Machining Processes Achieve?
Different processes land in predictable Ra bands, though actual results shift with material, tooling condition, and machine rigidity.
| Process | Typical Ra |
|---|---|
| Rough machining / flame cutting | 25 µm (1000 µin) |
| Heavy turning, milling | 12.5 µm (500 µin) |
| Standard machining | 6.3 µm (250 µin) |
| As-machined CNC default | 3.2 µm (125 µin) |
| Fine machining | 1.6 µm (63 µin) |
| Grinding, fine abrasive belts | 0.8 µm (32 µin) |
| Honing, lapping | 0.4 µm (16 µin) |
| Fine lap / mirror prep | 0.23 µm (9 µin) |
These figures come from Astro Pak's process chart and represent typical results, not guaranteed limits.
What drives the number within each process:
- Feed rate — slower feeds generally cut smoother surfaces
- Cutting speed — too fast or too slow both hurt finish depending on the material
- Tool sharpness — dull tools tear rather than shear, roughening the surface
- Depth of cut — lighter finishing passes improve results over heavy roughing cuts
- Machine rigidity — chatter from a loose spindle or worn ways shows up directly in the surface
Once a spec drops below roughly 0.8 µm Ra, you're usually out of standard milling or turning territory. Grinding, honing, or polishing become necessary, and each of those adds a separate operation, separate setup, and separate cost line.

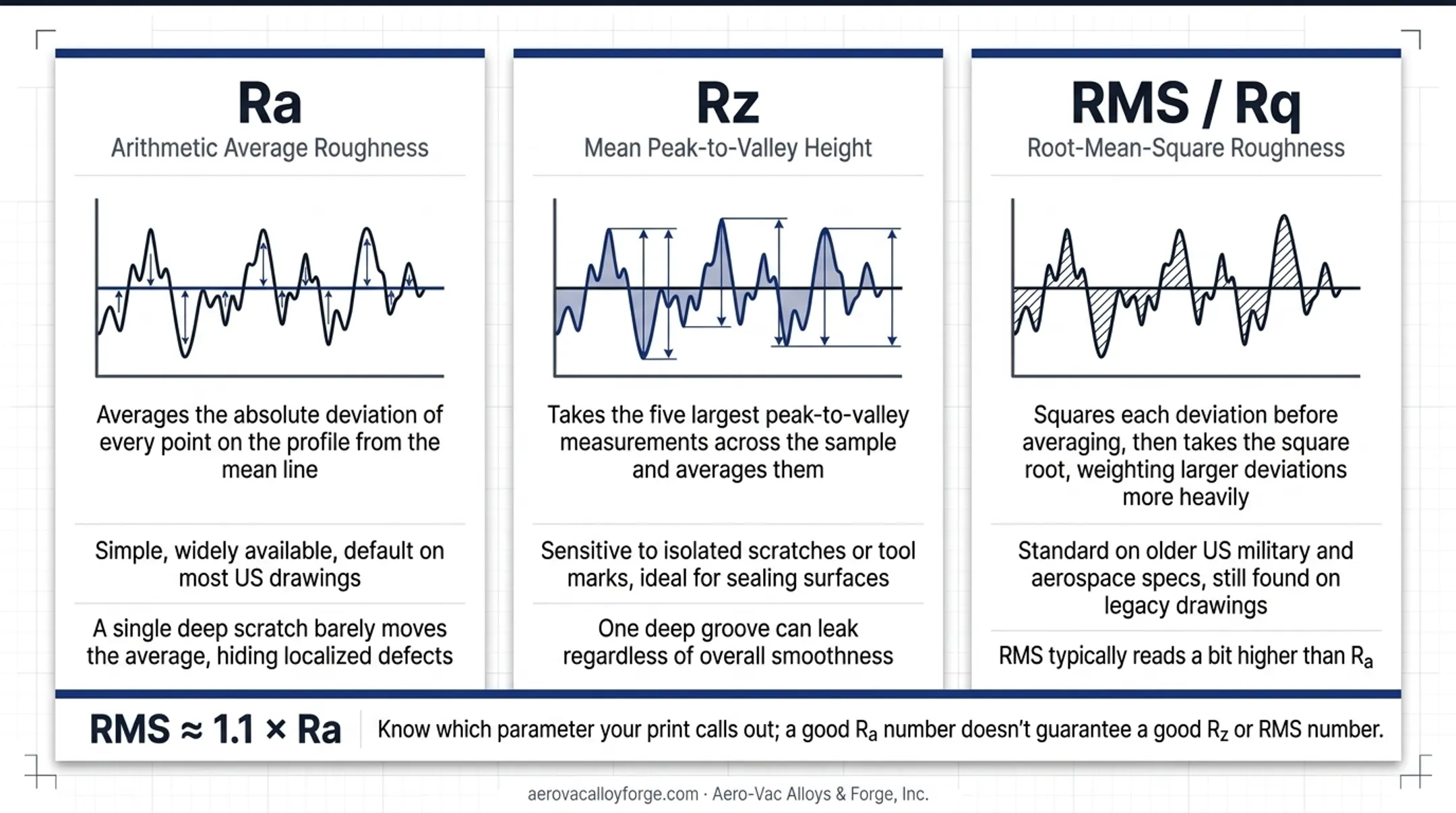

Ra vs. Rz vs. RMS: Understanding the Differences
These three parameters get used interchangeably in conversation, but they calculate roughness in different ways.
Ra (arithmetic average roughness) averages the absolute deviation of every point on the profile from the mean line. It's simple, widely available on every roughness gauge, and the default choice on most US drawings. Its weakness: a single deep scratch barely moves the average, so Ra can hide localized defects that matter for sealing or fatigue.
Rz (mean peak-to-valley height) takes the five largest peak-to-valley measurements across the sample and averages them. It's more sensitive to isolated defects like scratches or tool marks, which makes it the better choice for sealing surfaces where one deep groove can leak regardless of how smooth the rest of the surface reads.
RMS/Rq (root-mean-square roughness) squares each deviation before averaging, then takes the square root. This weights larger deviations more heavily than Ra does.
RMS was the standard on older US military and aerospace specs before Ra became dominant, so it still turns up on legacy drawings. For a given surface, RMS typically reads a bit higher than Ra; engineering charts commonly use RMS ≈ 1.1 × Ra as a working approximation.
| Parameter | What it measures | Best for |
|---|---|---|
| Ra | Average deviation from the mean line | General drawings, routine QC |
| Rz | Mean of largest peak-to-valley heights | Sealing surfaces, defect-sensitive parts |
| RMS/Rq | Root-mean-square of deviations | Legacy military and aerospace specs |
The practical takeaway: know which parameter your print calls out, and don't assume a good Ra number automatically means a good Rz or RMS number.

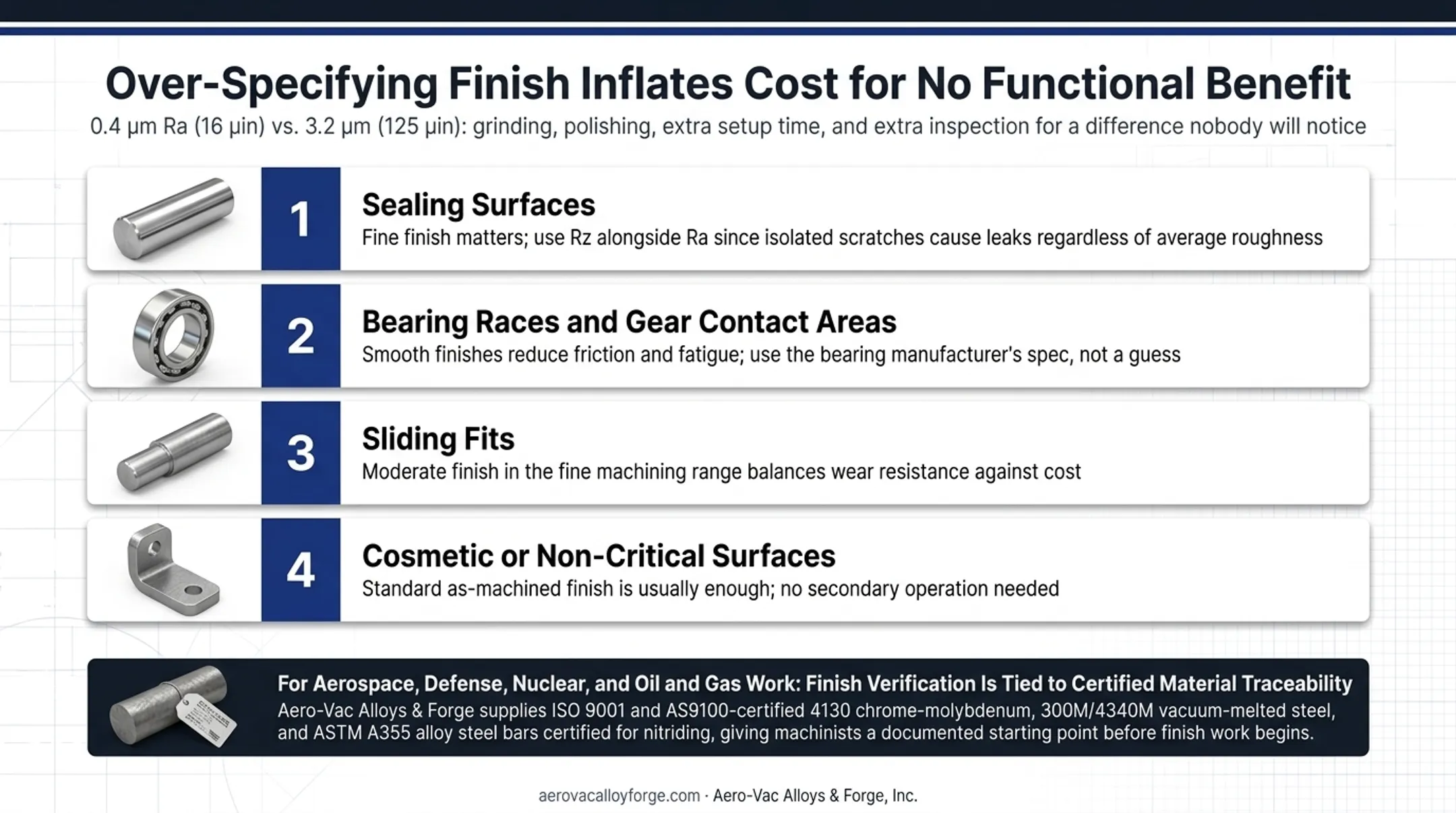

How to Choose the Right Surface Finish for Your Application
Over-specifying finish is one of the easiest ways to inflate a part's cost for no functional benefit. Calling out 0.4 µm Ra (16 µin) when the application only needs 3.2 µm (125 µin) adds grinding or polishing, extra setup time, and extra inspection — all for a difference nobody will notice.
Match the finish to the actual function:
- Sealing surfaces: Fine finish matters; use Rz alongside Ra since isolated scratches cause leaks regardless of average roughness
- Bearing races and gear contact areas: Smooth finishes reduce friction and fatigue; use the bearing manufacturer's spec, not a guess
- Sliding fits: Moderate finish in the fine machining range balances wear resistance against cost
- Cosmetic or non-critical surfaces: Standard as-machined finish is usually enough; no secondary operation needed
For aerospace, defense, nuclear, and oil and gas work, finish verification rarely stands alone. It's tied to certified material traceability: the base metal has to be documented before final surface smoothness is even in play.
That documentation starts with the stock. Aero-Vac Alloys & Forge supplies ISO 9001 and AS9100-certified alloy steel and forging stock to these industries, including 4130 chrome-molybdenum aircraft-quality steel and 300M/4340M vacuum-melted steel.
Materials such as ASTM A355 alloy steel bars are certified for nitriding and surface-hardening applications, giving machinists a documented starting point before finish work begins. Traceable bar or forging stock for bearing races or landing gear components supports the tolerance and finish requirements that come later.
Frequently Asked Questions
What is the standard surface finish for milling?
Standard as-machined milling typically produces around 3.2 µm Ra (125 µin). Finer finishes are achievable with slower feeds and sharper tooling, but expect added machining time.
What do Ra values like 3.2, 1.6, or 32 mean, and how do you convert Ra between µm and µin?
These are average roughness values in different units. 1 µm equals approximately 39.37 µin, so 3.2 µm converts to about 126 µin (rounded to 125 on most charts).
What is the difference between Ra and Rz?
Ra averages every deviation across the profile. Rz averages only the five largest peak-to-valley heights. Rz numbers typically run higher because they capture worst-case defects that Ra smooths over.
What is RMS (Rq) in surface finish and how does it relate to Ra?
RMS is a root-mean-square calculation of surface deviations, common on legacy US specs. It reads slightly higher than Ra for the same surface, roughly RMS ≈ 1.1 × Ra.
What are the different levels of surface finish?
Common tiers include:
- Rough: 12.5–25 µm Ra
- Standard: 3.2–6.3 µm Ra
- Fine: 0.8–1.6 µm Ra
- Mirror/polished: below 0.4 µm Ra
What are the two main types of surface finishes?
As-machined finishes come directly from the cutting operation with no extra steps. Post-processed finishes involve additional work like grinding, polishing, blasting, or anodizing to hit tighter tolerances.
