A microscopic crack invisible to the naked eye can compromise a pressure vessel or fuel line. Standard pressure checks often miss these flaws entirely. Helium leak testing doesn't.
Integral helium testing methods can detect leak rates as small as 1 x 10⁻¹² mbar·l/s, according to Leybold's technical breakdown of helium leak detection methods. That's a sensitivity most other inspection techniques simply can't touch.
TL;DR
- Helium leak testing uses inert tracer gas to catch leaks other methods miss
- Aerospace, nuclear, defense, and energy components require it when failure is not an option
- Three method families exist: vacuum, pressure, and accumulation testing
- Raw alloy quality directly determines whether a part passes or fails
- Aero-Vac Alloys & Forge, Inc. supplies certified alloys built for leak-critical applications
What Is Helium Leak Testing?
Helium leak testing is a non-destructive inspection method that uses helium as a tracer gas paired with mass spectrometry to detect and measure leaks in sealed components.
It's the standard for quality control across:
- Pressure vessels and piping systems
- Hermetic seals and electronic enclosures
- Fuel systems and hydraulic assemblies
- Forged and machined metal parts used in aerospace, defense, and nuclear applications

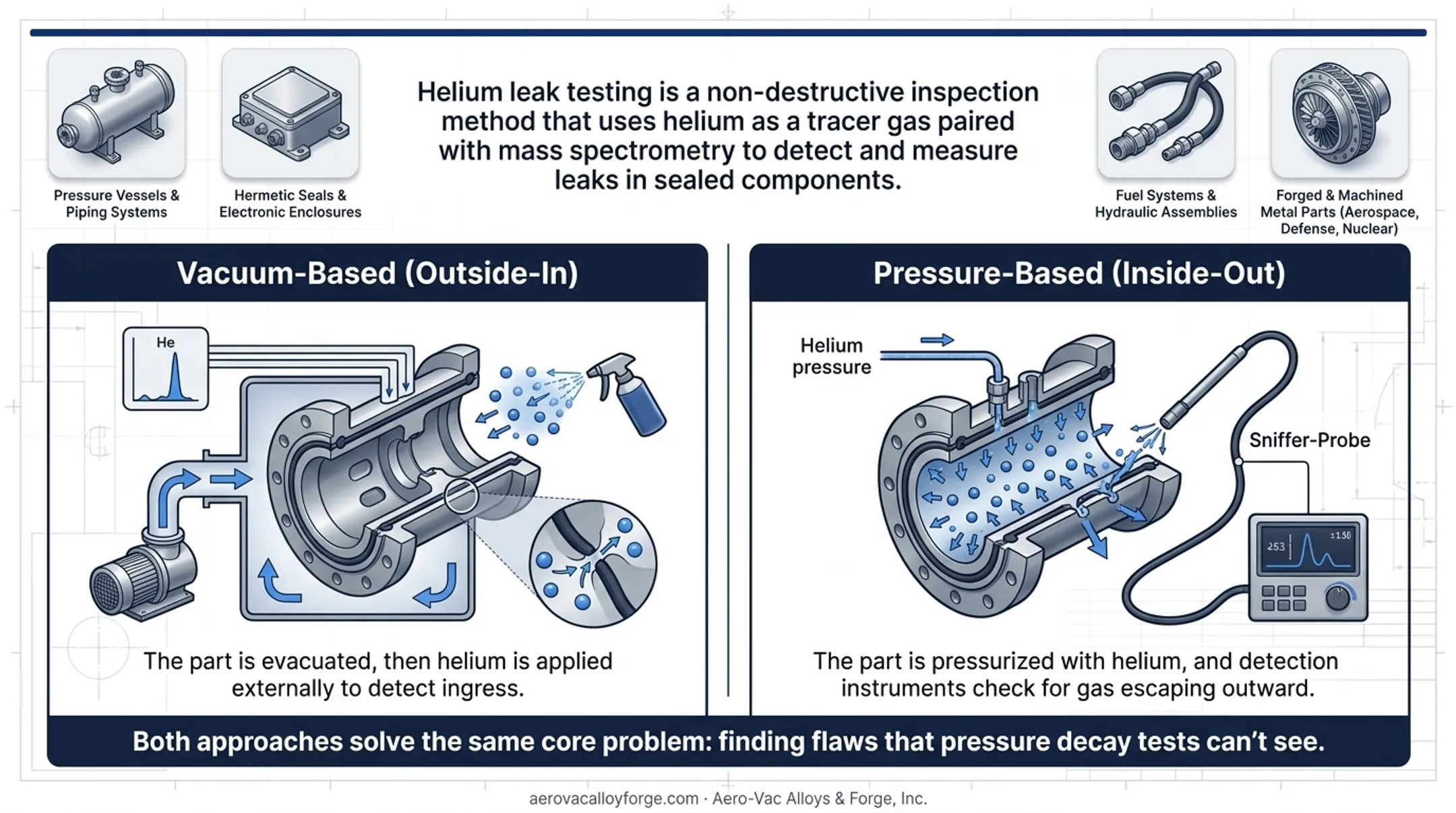

Two broad testing methods are used across the industry:
- Vacuum-based (outside-in): the part is evacuated, then helium is applied externally to detect ingress
- Pressure-based (inside-out): the part is pressurized with helium, and detection instruments check for gas escaping outward
Both approaches solve the same core problem: finding flaws that pressure decay tests can't see.
Why Use Helium for Leak Testing?
Not every tracer gas gets the job done. Helium earned its dominant position in this industry for concrete, physical reasons.
Small, Inert, and Low-Noise
Helium atoms are tiny enough to escape through micro-cracks and porosity that would trap larger gas molecules. Inspectors can find flaws that other tracer methods walk right past. Helium also won't react with test materials, won't ignite, and won't poison anyone in the room. That mix makes it practical for production environments where safety and throughput both matter. Natural atmospheric helium sits at roughly 5 parts per million, according to a National Academies report on the federal helium reserve. That low baseline means less interference and fewer false positives during testing.
Sensitivity That Dwarfs Pressure Decay

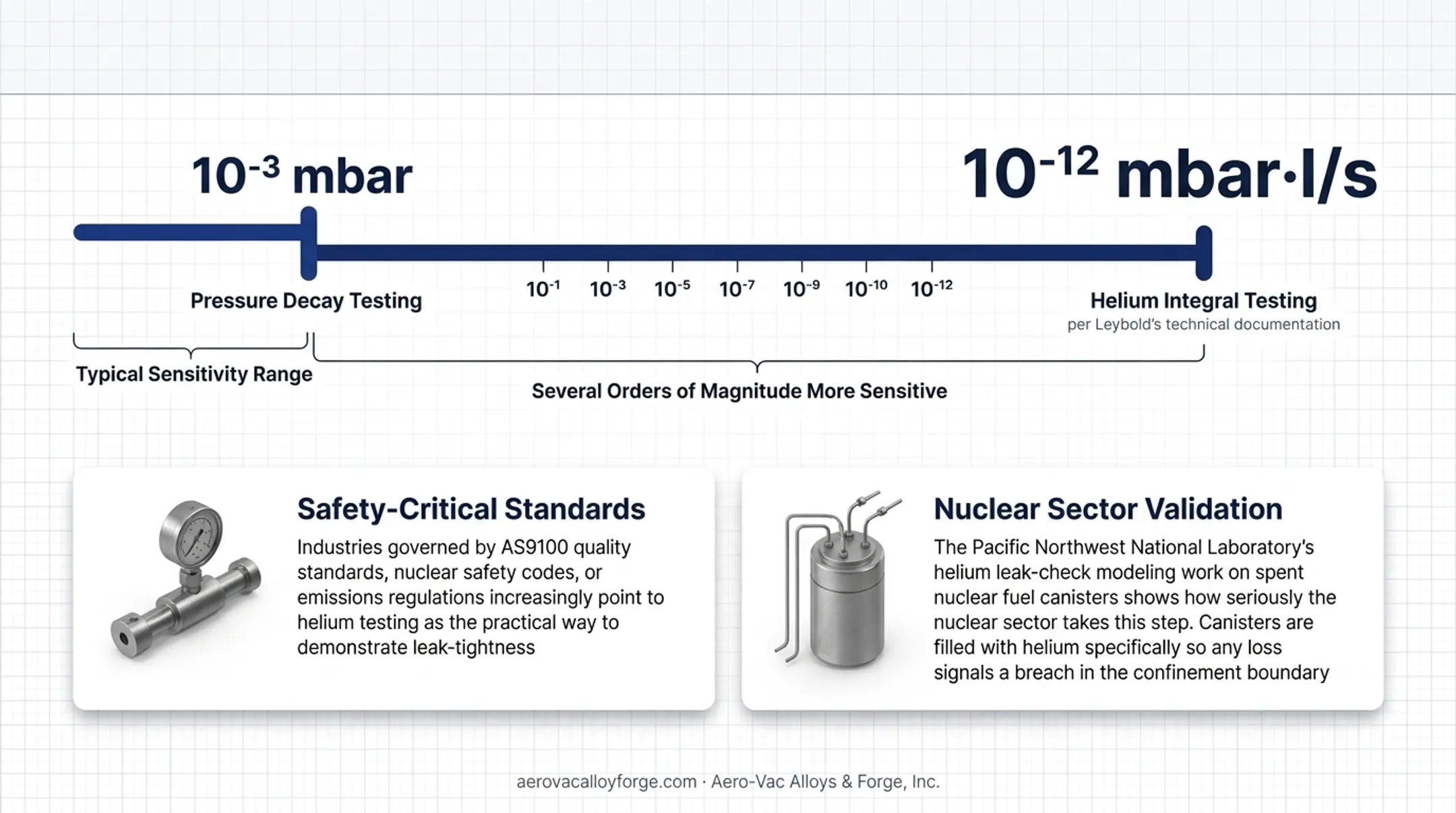

Pressure decay testing typically operates in the range of 10⁻³ mbar. Helium integral testing reaches down to 10⁻¹² mbar·l/s, several orders of magnitude more sensitive, per Leybold's technical documentation. For safety-critical components, that gap matters enormously. Industries governed by AS9100 quality standards, nuclear safety codes, or emissions regulations increasingly point to helium testing as the practical way to demonstrate leak-tightness. The Pacific Northwest National Laboratory's helium leak-check modeling work on spent nuclear fuel canisters shows how seriously the nuclear sector takes this step. Canisters are filled with helium specifically so any loss signals a breach in the confinement boundary.
How Helium Leak Detection Works: Methods Breakdown
Choosing the wrong method for a part's geometry and volume is one of the most common—and costly—mistakes in quality control. Here's how the major approaches differ.
Method 1: Vacuum Testing (Spray & Bell Jar)
The part is evacuated and connected to a leak detector. Then:
- Spray testing applies a fine helium stream at likely leak points—flange connections, weld seams, joints—to pinpoint exact locations
- Bell jar testing encloses the part entirely in helium to quantify total leakage across the whole surface
Spray finds where. Bell jar tells you how much.
Method 2: Pressure Testing (Sniffing & Bombing)
Here, the part is pressurized with helium instead of evacuated.
- A sniffer probe scans the surface at roughly 1 cm/second, checking for escaping helium
- Bombing (a variant of accumulation testing) pressurizes the part in a helium-rich chamber, then measures what's trapped inside after removal
Sniffer testing detects leak rates above roughly 1 x 10⁻⁷ mbar·l/s, per Leybold.

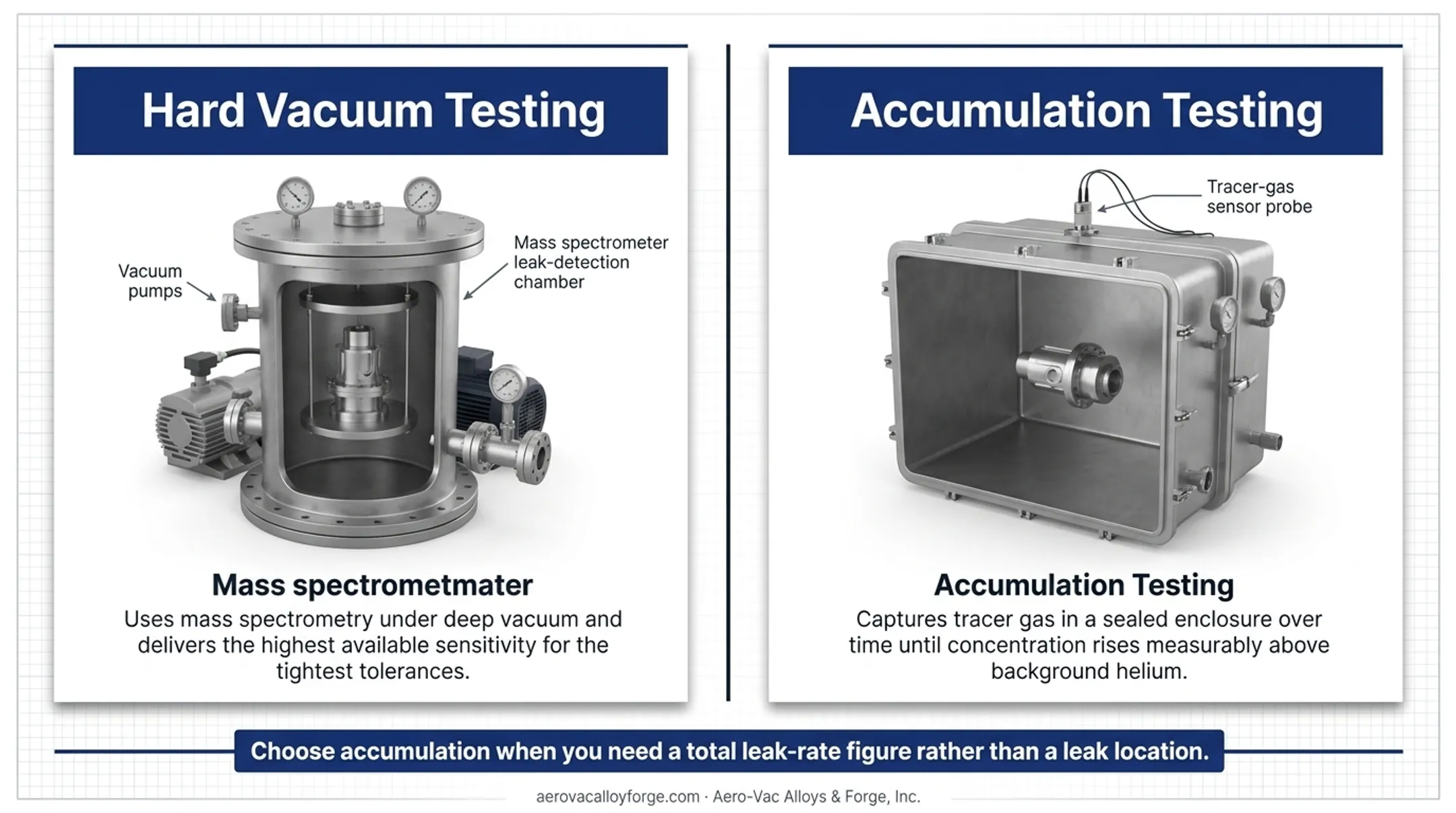

Method 3: Hard Vacuum & Accumulation Testing
These approaches handle the most demanding leak-rate requirements:
- Hard vacuum testing uses mass spectrometry under deep vacuum and delivers the highest available sensitivity for the tightest tolerances
- Accumulation testing captures tracer gas in a sealed enclosure over time until concentration rises measurably above background helium
Choose accumulation when you need a total leak-rate figure rather than a leak location.
| Method | Sensitivity | Speed | Locates Leak? | Quantifies Total Leak? |
|---|---|---|---|---|
| Spray (vacuum) | High | Fast | Yes | Approximate |
| Bell jar (vacuum) | Very high | Slower | No | Yes |
| Sniffer (pressure) | Moderate | Fast | Yes | Approximate |
| Bombing/Accumulation | High | Slow | No | Yes |
Why Material Quality Determines Leak Test Success
Here's a truth many quality engineers learn the hard way: the best leak-testing equipment in the world can't fix bad raw stock.
Porosity, micro-cracks, and inclusions embedded in forged or machined metal are a leading root cause of leak-test failures, no matter which method catches them.
ASM International's research on forging defects identifies segregation and porosity as discontinuities baked into stock well before it reaches a test bench. Those flaws often trace back to temperature control during forging or excessive reduction in a single operation.
Alloy selection, forging process, and heat treatment all shape leak-tightness before testing ever begins. That is why the supply chain decision matters as much as the test protocol itself.
Where Aero-Vac Fits In

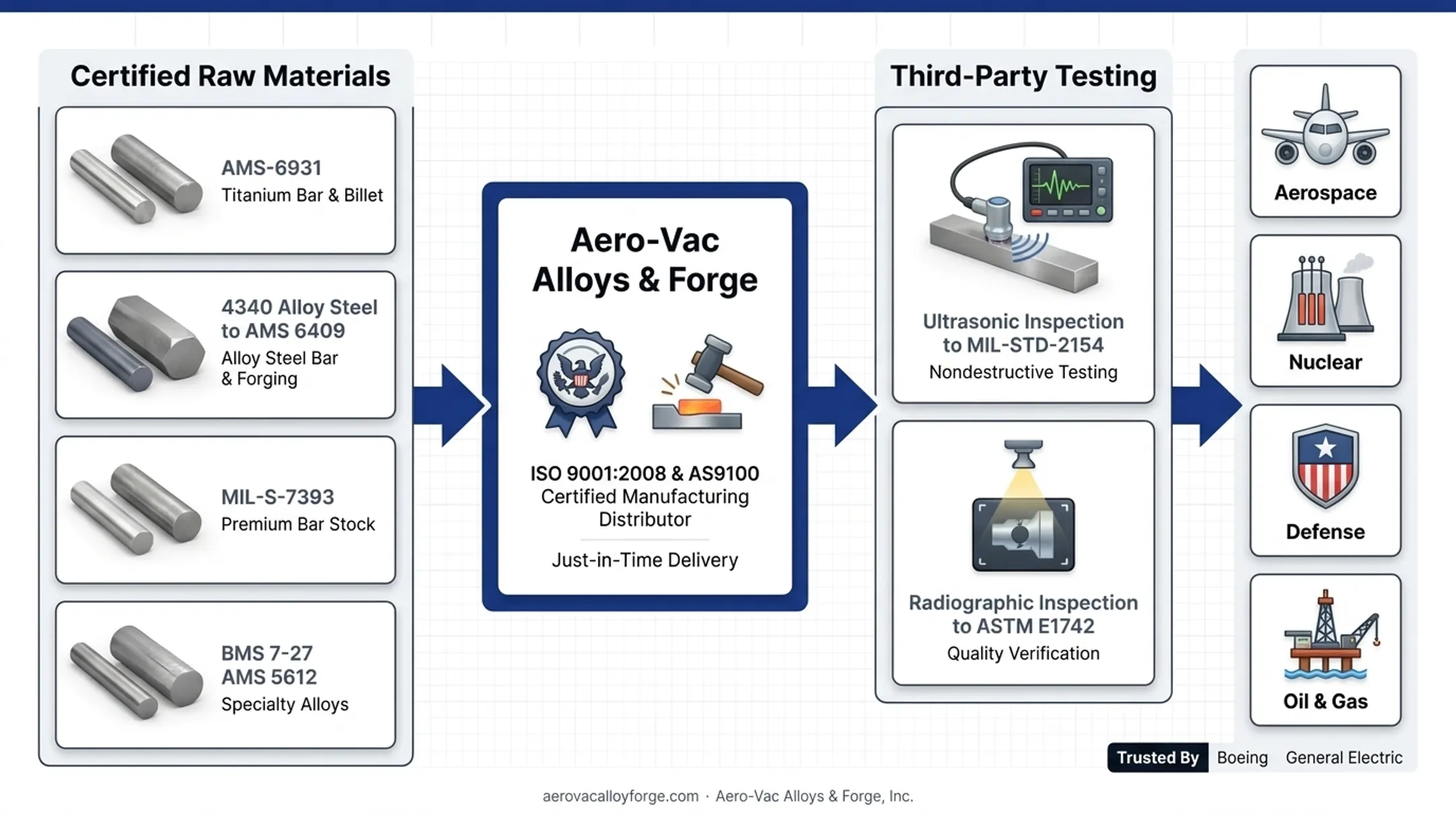

Aero-Vac Alloys & Forge is an ISO 9001:2008 and AS9100-certified manufacturing distributor of high-integrity forging steels and alloys. It supplies aerospace, nuclear, defense, and oil & gas manufacturers—sectors where leak-tight tolerances are non-negotiable.
The company's catalog includes:
- AMS-6931 (Grade 6Al/4V titanium) for aerospace, defense, and nuclear reactor applications
- 4340 alloy steel to AMS 6409 for aerospace and defense components
- Military-grade specs including MIL-S-7393, BMS 7-27, and AMS 5612
Aero-Vac also coordinates independent third-party testing before shipment, including ultrasonic inspection to MIL-STD-2154 and radiographic inspection to ASTM E1742, helping confirm material conformance before a part ever reaches production.
A certified supplier that hits exact specs and just-in-time delivery lowers the chance of a leak-test rejection after machining and forging costs are already sunk. Aero-Vac's customers include Boeing and General Electric, where material integrity requirements are unforgiving.
Common Mistakes and Best Practices in Helium Leak Testing
Even with the right equipment and quality material, procedural mistakes can sink a test result.

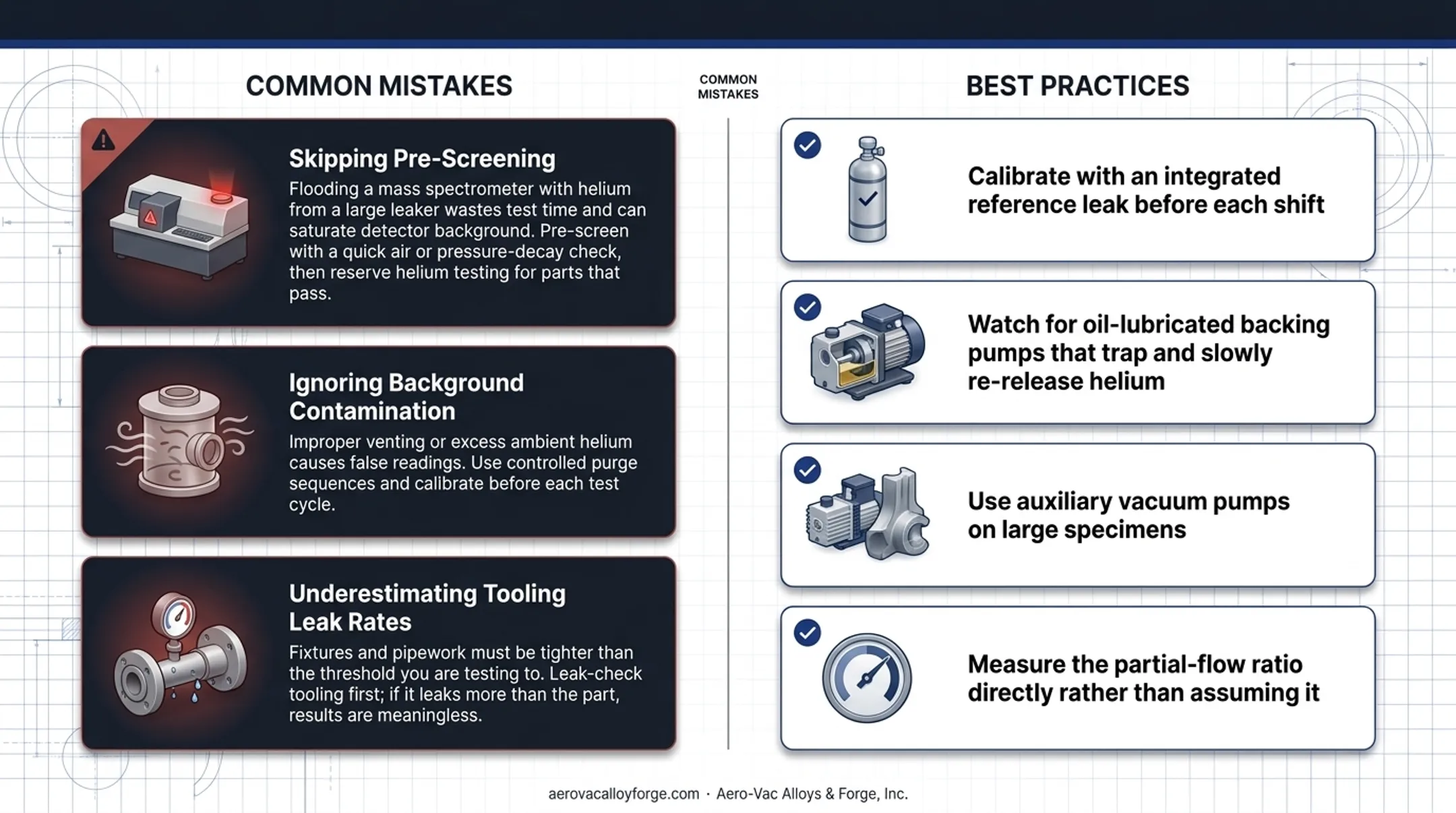

Common mistakes to avoid:
- Skipping pre-screening: Flooding a mass spectrometer with helium from a large leaker wastes test time and can saturate detector background. Pre-screen with a quick air or pressure-decay check, then reserve helium testing for parts that pass.
- Ignoring background contamination: Improper venting or excess ambient helium causes false readings. Use controlled purge sequences and calibrate before each test cycle (per guidance such as Pfeiffer Vacuum’s application notes).
- Underestimating tooling leak rates: Fixtures and pipework must be tighter than the threshold you are testing to. Leak-check tooling first; if it leaks more than the part, results are meaningless.
Habits that keep results reliable:
- Calibrate with an integrated reference leak before each shift
- Watch for oil-lubricated backing pumps that trap and slowly re-release helium
- Use auxiliary vacuum pumps on large specimens
- Measure the partial-flow ratio directly rather than assuming it
Frequently Asked Questions
How much does helium leak detection cost?
Costs vary widely based on equipment type, part volume, and required sensitivity. Handheld sniffer units cost far less than full integral mass spectrometer systems with automated chambers.
Why is helium used for leak testing?
Helium's small molecular size lets it pass through leaks other gases miss. It's also inert, non-toxic, and naturally present at only about 5 ppm in the atmosphere, minimizing background interference.
What are the three types of leak detection?
The main categories are vacuum-based (spray and bell jar), pressure-based (sniffer and bombing), and accumulation testing, which captures escaped gas over time to calculate total leak rate.
What is the standard range for helium leak testing?
Sensitivity ranges roughly from 1 x 10⁻⁶ to 1 x 10⁻¹² mbar·l/s, depending on whether you're running sniffer testing or high-sensitivity integral vacuum testing.
Who can check where a leak is coming from?
Certified leak-testing labs, NDT technicians, and quality engineers typically locate leaks with spray or sniffer methods. That work is often part of inspection protocols tied to material and process specs.
Are leak detection companies worth it?
For aerospace, nuclear, and other regulated industries, professional leak testing prevents costly field failures and keeps components compliant. The upfront cost is minor next to a failure downstream.
