Couplant-free inspection is gaining ground for a simple reason: production lines want speed. Innerspec reports weld-inspection systems running at 3 m/s, with some applications reaching 26 m/s, and pipeline-scanning tools rated for up to 400 ultrasonic readings per second. That's a meaningful shift toward automated, high-temperature inspection.
Still, a lot of engineers and procurement teams know EMAT exists without understanding how it actually works. That gap leads to underuse in situations where EMAT would save real time and money. This guide breaks the technology down stage-by-stage, covers where it fits into industrial workflows, and clarifies when it beats conventional ultrasonic testing (UT).
TL;DR
- EMAT generates ultrasonic waves inside conductive or ferromagnetic materials—no probe contact required
- No liquid couplant, so it suits hot, rough, coated, or dirty surfaces
- A magnet and coil induce Lorentz-force sound waves used to detect internal flaws
- Used on pipelines, aerospace welds, storage tanks, rail wheels, and forged steel
- Choose EMAT over traditional UT for dry, high-heat, or in-line automated inspection
What Is EMAT?
An electromagnetic acoustic transducer generates and receives ultrasonic waves directly within a conductive or ferromagnetic material's surface. No piezoelectric probe pressed against the part, no couplant gel, no water column. According to ASTM E1774-17, the standard guide governing this technology, EMAT produces and receives sound waves "without contacting the material."
Traditional ultrasonic testing solves flaw detection well, but it demands couplant and surface prep: impractical on hot pipe, rusty tanks, or coated aircraft components. EMAT closes that gap.
What EMAT is not:
- A universal UT replacement: it won't work on plastics, ceramics, or composites
- A drop-in upgrade: ASTM's material requirement is strict: the part must be electrically conductive, ferromagnetic, or both
- Higher sensitivity than piezoelectric UT in every case: it trades some signal strength for surface tolerance
Despite piezoelectric UT's dominance in NDT, EMAT holds its place through a practical advantage: no-touch, no-prep inspection in extreme conditions.
How that inspection is delivered depends on the probe. Coil design and magnetic field orientation determine whether a given EMAT generates shear, surface, or Lamb waves, each suited to a different category of flaw.
How Does EMAT Work?
EMAT operates through a defined electromagnetic-to-acoustic conversion sequence: field generation, wave creation, signal correction, and result interpretation.
Initiation
The process starts when the probe's magnet is placed near—not touching— the conductive surface, establishing a static magnetic field. Wave generation then triggers when the coil is energized with alternating current. This can run automatically on a production line or be manually triggered during field inspections.
Probe positioning and standoff distance directly affect signal strength. Innerspec notes a practical lift-off range of roughly 0 to 3 mm for most EMAT probes, meaning operators need training to maintain consistent readings at that distance.
Core Operation

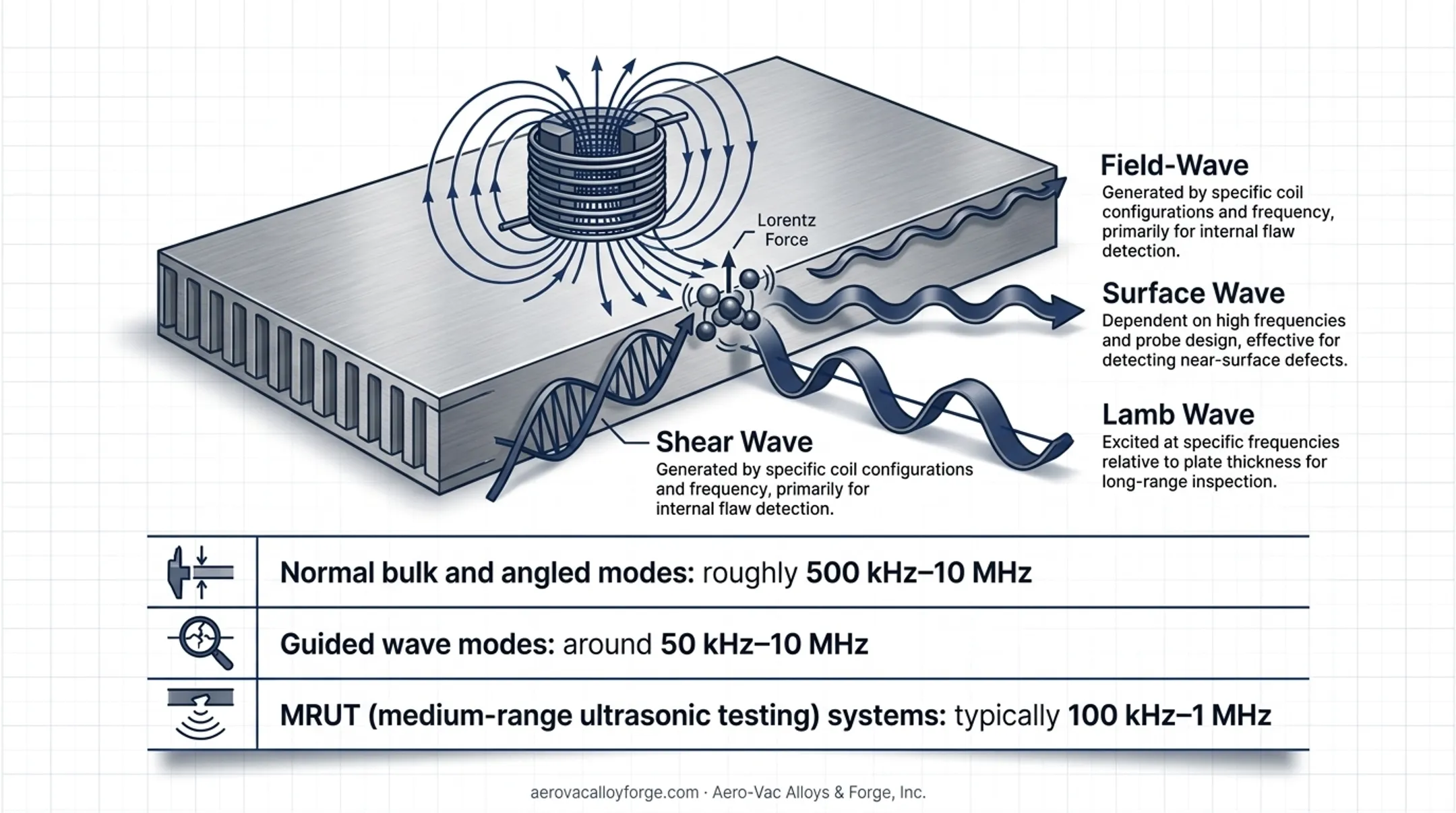

The static and alternating magnetic fields interact to create a Lorentz force on the material's surface. That force vibrates surface atoms and generates ultrasonic waves inside the material—no contact required.
These waves travel as shear, surface, or Lamb waves depending on coil configuration and frequency. Frequency ranges vary by application:
- Normal bulk and angled modes: roughly 500 kHz–10 MHz
- Guided wave modes: around 50 kHz–10 MHz
- MRUT (medium-range ultrasonic testing) systems: typically 100 kHz–1 MHz
Wave type and frequency determine whether the setup is optimized for thickness measurement, surface crack detection, or deep flaw detection.
Regulation and Control

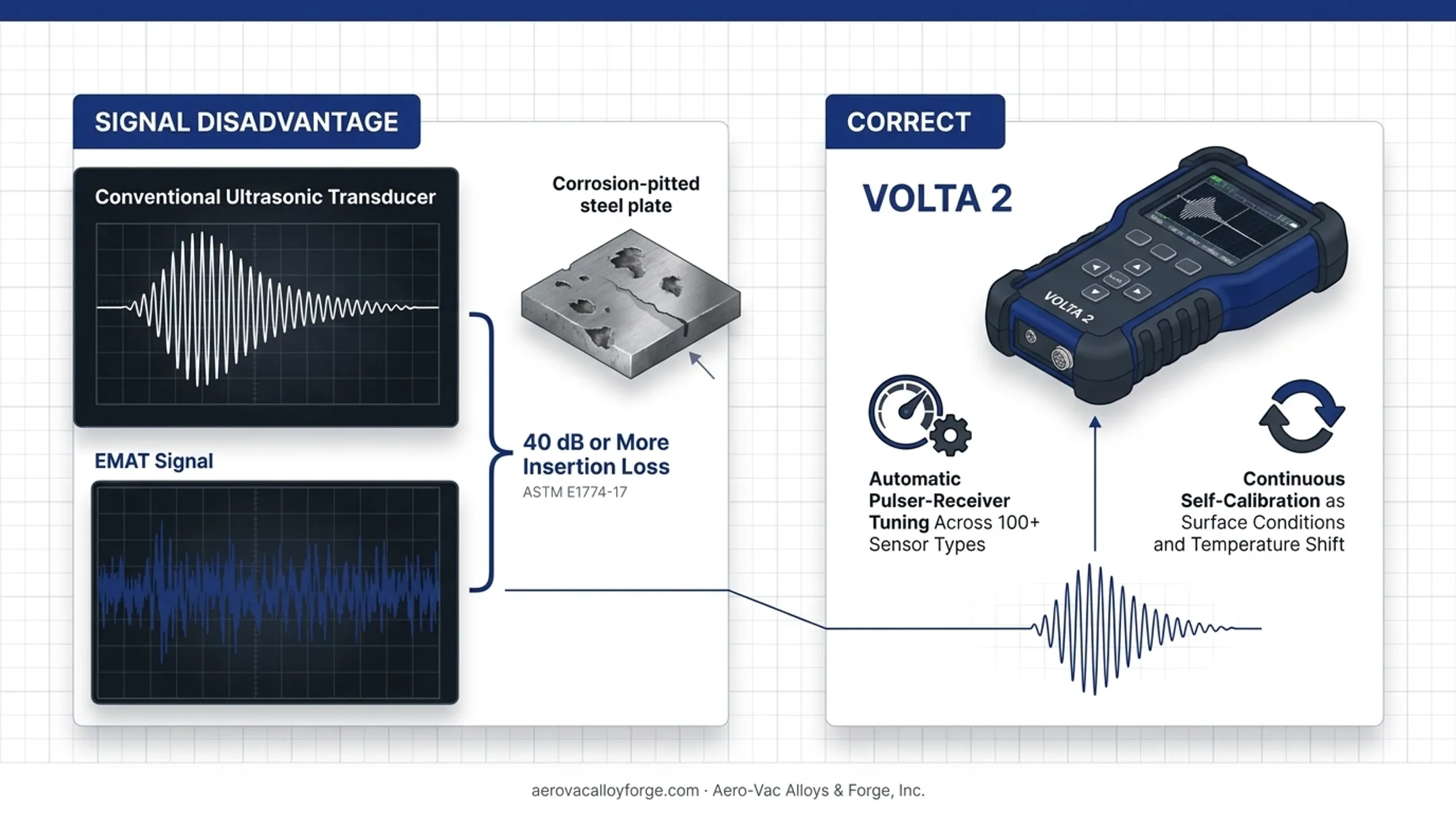

EMAT signals are inherently weaker than piezoelectric UT signals. ASTM E1774-17 puts EMAT insertion losses at 40 dB or more compared to conventional ultrasonic transducers. That's a substantial signal-to-noise disadvantage that modern systems have to correct for.
Instruments like Innerspec's VOLTA 2 address this with automatic pulser-receiver tuning across more than 100 sensor types, plus continuous self-calibration as surface conditions and temperatures shift. Left uncorrected, that noise can mask subsurface cracks or corrosion and produce false negatives with real safety consequences.
Output and Result
Returning sound waves vibrate the material surface again, reactivating the receiver coil and converting mechanical motion back into an electrical signal. That signal gets processed into A-scans, thickness readings, or color-coded defect maps, depending on the equipment.
Output quality drives real decisions—run-time extensions, repair scheduling, or material replacement. Material consistency still matters upstream: variable or poorly certified alloy stock can introduce signal scatter that reflects the metal itself, not a flaw in the EMAT setup.
Where Is EMAT Used, and When Should You Choose It Over Standard UT?
EMAT fits into several distinct points in an industrial workflow:
- Incoming material verification — checking alloy stock before it enters production
- In-service monitoring — pipelines and storage tanks already in the field
- Weld inspection — aerospace assemblies and pressure vessels
- In-line quality control — forging and rolling lines that cannot stop for couplant
Conditions Where EMAT Excels

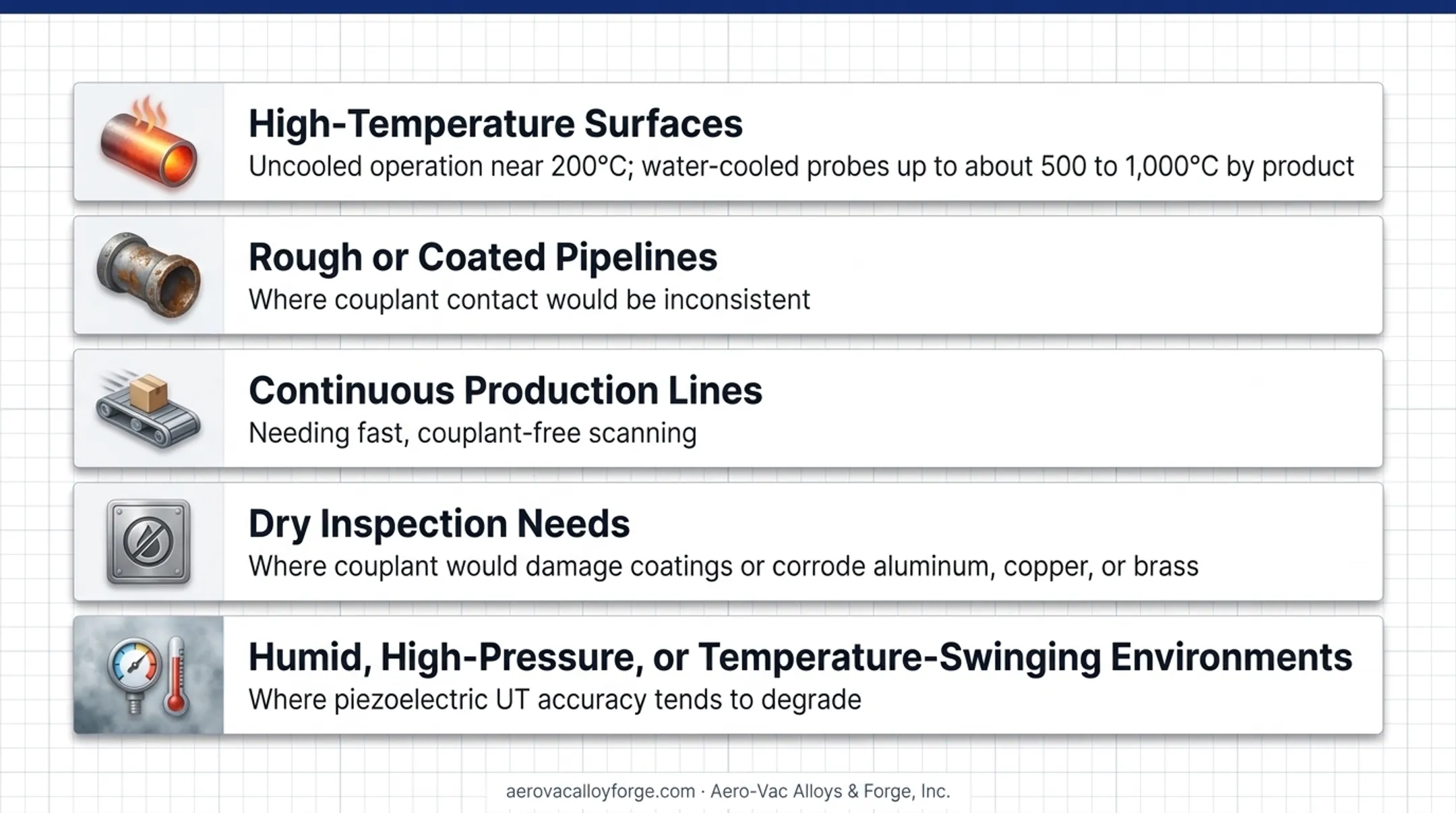

EMAT performs best in scenarios that would cripple conventional UT. Choose EMAT over standard UT when couplant, contact quality, or temperature would compromise a piezoelectric inspection:
- High-temperature surfaces — uncooled operation near 200°C; water-cooled probes up to about 500–1,000°C by product
- Rough or coated pipelines where couplant contact would be inconsistent
- Continuous production lines needing fast, couplant-free scanning
- Dry inspection needs where couplant would damage coatings or corrode aluminum, copper, or brass
- Humid, high-pressure, or temperature-swinging environments where piezoelectric UT accuracy tends to degrade
Documented Field Applications

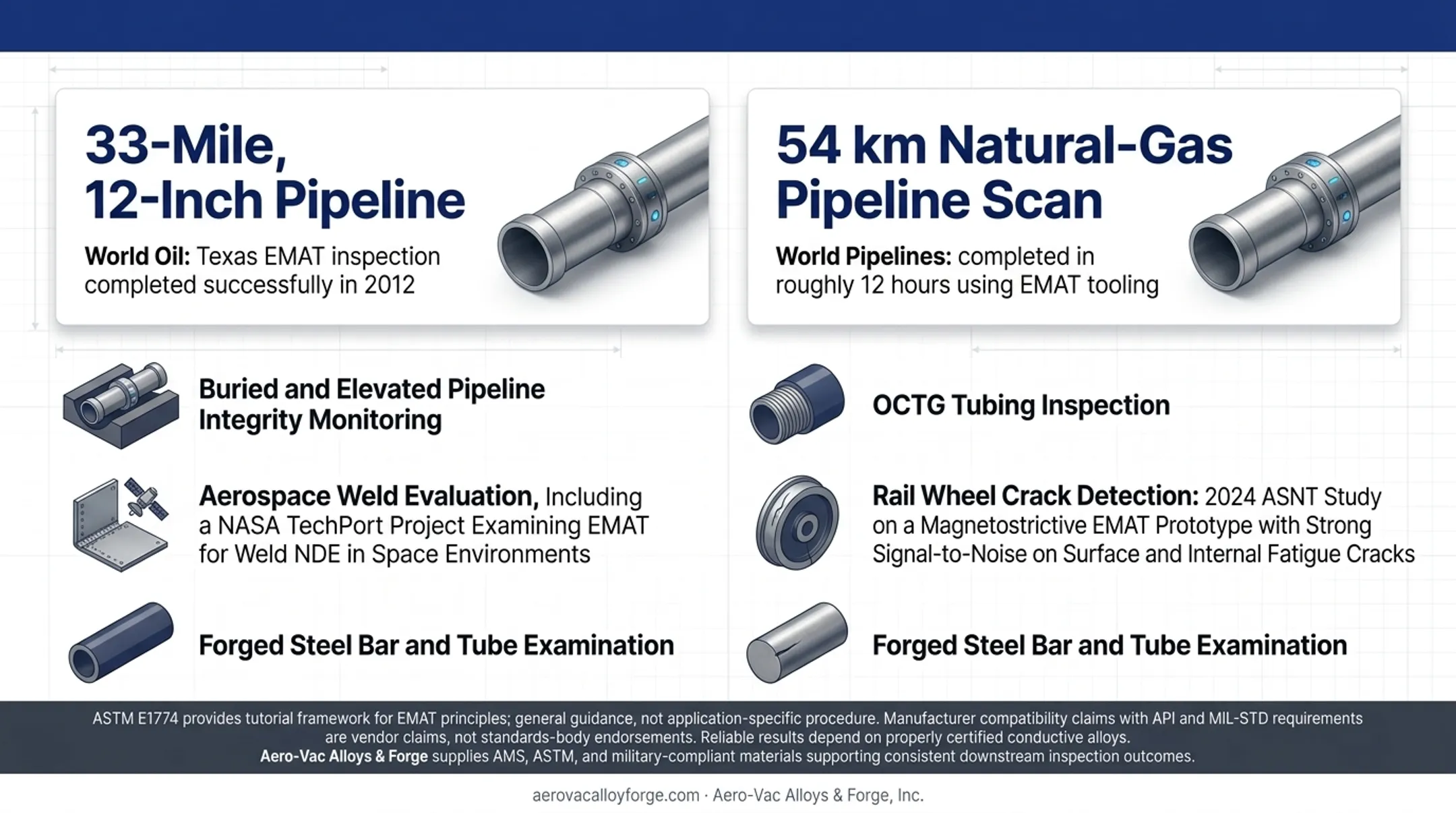

Real-world deployments back this up. World Oil reported a 33-mile, 12-inch pipeline EMAT inspection in Texas completed successfully in 2012. World Pipelines later documented a 54 km natural-gas pipeline scan finished in roughly 12 hours using EMAT tooling. Industry examples with documented or emerging use include:
- Buried and elevated pipeline integrity monitoring
- OCTG tubing inspection
- Aerospace weld evaluation, including a NASA TechPort project examining EMAT for weld NDE in space environments
- Rail wheel crack detection — a 2024 ASNT study reported a magnetostrictive EMAT prototype with strong signal-to-noise on surface and internal fatigue cracks
- Forged steel bar and tube examination Standards like ASTM E1774 provide the tutorial framework for EMAT principles, and ASTM frames it as general guidance rather than an application-specific procedure. Manufacturer literature references compatibility with API and MIL-STD ultrasonic requirements, but that's a vendor claim rather than direct standards-body endorsement. Reliable EMAT results still depend on high-quality, properly certified conductive alloys. Aero-Vac Alloys & Forge, an ISO 9001 and AS9100 certified distributor of bars, tubing, and forgings across more than 150 alloy specifications, supplies aerospace, defense, and energy-sector material that meets AMS, ASTM, and military requirements—supporting consistent downstream inspection outcomes.
Pros and Cons of EMAT Technology
| Advantages | Limitations |
|---|---|
| Dry, couplant-free operation | Restricted to conductive/ferromagnetic materials |
| Works through coatings and rough surfaces | Lower signal-to-noise ratio than piezoelectric UT |
| Compatible with high-temperature, in-service inspection | Larger equipment footprint |
| Generates multiple wave types for varied defect detection | Higher upfront equipment cost |
EMAT instruments generally cost more than comparable piezoelectric UT setups. They need more power to overcome inherent signal loss, and that shows up in the price.
In the jobs where EMAT excels (hot pipe, rough coatings, high-speed in-line scanning), skipping couplant and surface prep usually saves enough time and labor to outweigh the higher equipment cost.
Conclusion
EMAT's value comes down to one principle: electromagnetic induction generates ultrasonic waves inside the material rather than through a contact probe. That enables couplant-free, high-temperature, and rough-surface inspection that conventional UT can't match under those conditions.
Knowing when EMAT outperforms conventional UT helps inspection teams pick the right tool instead of defaulting to whatever is on the shelf.
Inspection results only mean as much as the material behind them. Certified, high-quality alloy stock from a supplier like Aero-Vac Alloys & Forge ensures those results reflect true asset condition—not unexplained material inconsistency.
Frequently Asked Questions
What is an electromagnetic acoustic transducer (EMAT)?
EMAT is a non-contact NDT device that generates ultrasonic waves directly within conductive or ferromagnetic materials through electromagnetic induction. It eliminates the need for liquid couplant entirely.
Can EMAT be used on non-metallic materials?
No. EMAT only works on electrically conductive or ferromagnetic materials. It cannot inspect plastics, ceramics, or composite materials.
How hot can a surface be for EMAT inspection?
Uncooled probes typically handle up to about 200°C (392°F); water-cooled designs can reach 500°C (932°F) or higher. Exact limits depend on the manufacturer and probe design.
Is EMAT more accurate than traditional ultrasonic testing?
Not universally. EMAT trades some sensitivity and signal-to-noise performance for surface tolerance and couplant-free operation, so which method is "more accurate" depends entirely on the application.
What industries commonly use EMAT inspection?
Oil & gas pipelines, aerospace weld inspection, rail wheel testing, and forged steel manufacturing are the most documented use cases. Power generation and defense applications are emerging as well.
Does the quality of the base metal affect EMAT inspection results?
Yes. Inconsistent or non-certified alloy stock can introduce signal variability unrelated to actual defects. Sourcing from certified, traceable metal suppliers helps ensure readings reflect true material condition.
