Rolled ring forgings solve this by delivering seamless, circumferentially grained components built for the radial and tangential stresses that cast or machined parts simply can't handle as well. Aerospace, defense, power generation, and oil & gas engineers rely on them for load-bearing components where failure isn't an option.
The catch? Sourcing the right grade, spec, and size fast enough for a just-in-time production schedule is its own challenge. This guide covers how rolled ring forging works, the materials available, where these rings get used, and what to look for in a supplier.
Key Takeaways
- Seamless rings with circumferential grain flow outperform cast or machined rings in strength
- Upset, pierce, and roll steps form a preform into near-net shape between rotating rolls
- Materials span carbon steel to superalloys, with diameters from inches to over 25 feet
- Near-net geometry lowers machining cost and shortens lead times
- A certified metals distributor matches grade, spec, and delivery to the job
What Is Rolled Ring Forging?
Rolled ring forging is a seamless metal-forming process that produces circular components with grain flow running around the circumference, not across it. That distinction matters more than it sounds.
The process starts with a "doughnut" preform: a billet that's been upset (compressed to widen it) and pierced (punched through the center) to create a hollow starting shape. This preform then gets expanded and shaped between rotating rolls.

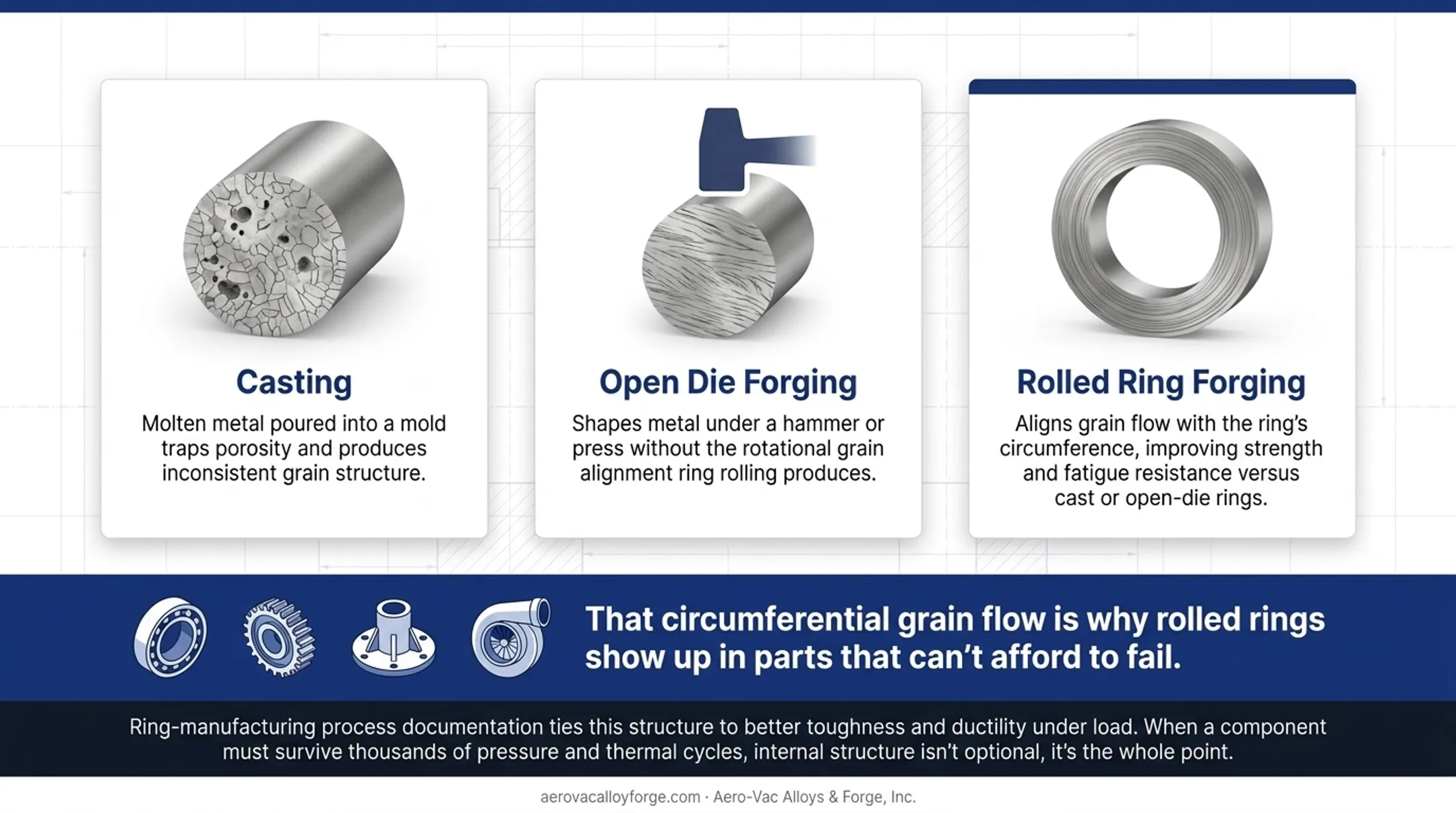

How does this compare to other methods?
- Casting relies on molten metal poured into a mold, which can trap porosity and produce inconsistent grain structure.
- Open die forging shapes metal under a hammer or press without the rotational grain alignment ring rolling produces.
- Rolled ring forging aligns grain flow with the ring's circumference, improving strength and fatigue resistance versus cast or open-die rings.
That circumferential grain flow is why rolled rings show up in parts that can't afford to fail: bearing races, gears, structural flanges, and turbine casings. Ring-manufacturing process documentation ties this structure to better toughness and ductility under load. When a component must survive thousands of pressure and thermal cycles, internal structure isn't optional—it's the whole point.
The Rolled Ring Forging Process, Step by Step
Ring rolling isn't a single operation. It's four distinct stages, each affecting the final part's quality.
Step 1: Preform Preparation
The process starts with cutting stock to weight, rounding it, then upsetting and piercing it to create the hollow preform.
Preform geometry matters here: uneven wall thickness or a poorly centered hole carries through to the finished ring, creating dimensional problems that no amount of rolling can fully correct.
Step 2: Heating to Forging Temperature
Temperature ranges vary widely by alloy:
| Material | Typical Forging Temperature |
|---|---|
| Carbon and alloy steels | 1800–2000°F (general range) |
| 17-4 PH stainless steel | 2150–2200°F |
| Inconel 718 (nickel superalloy) | 1900–2150°F |
| Titanium alloys (Ti-6Al-4V) | 1650–1750°F |
Getting this wrong has real consequences. Forge below the alloy's minimum temperature and you risk cracking, tearing, or excessive force requirements. Forge above the maximum and you get grain coarsening, hot shortness, or even incipient melting. Carpenter Technology's guidance on forging difficult alloys covers these failure modes in detail.
One study on Ti-5Al-1.5Mo-1.8Fe alloy found that forging at 920°C (about 1690°F) produced higher yield and tensile strength than forging at 980°C (about 1800°F), with elongation reaching 17% at the lower temperature. Ten degrees matters.

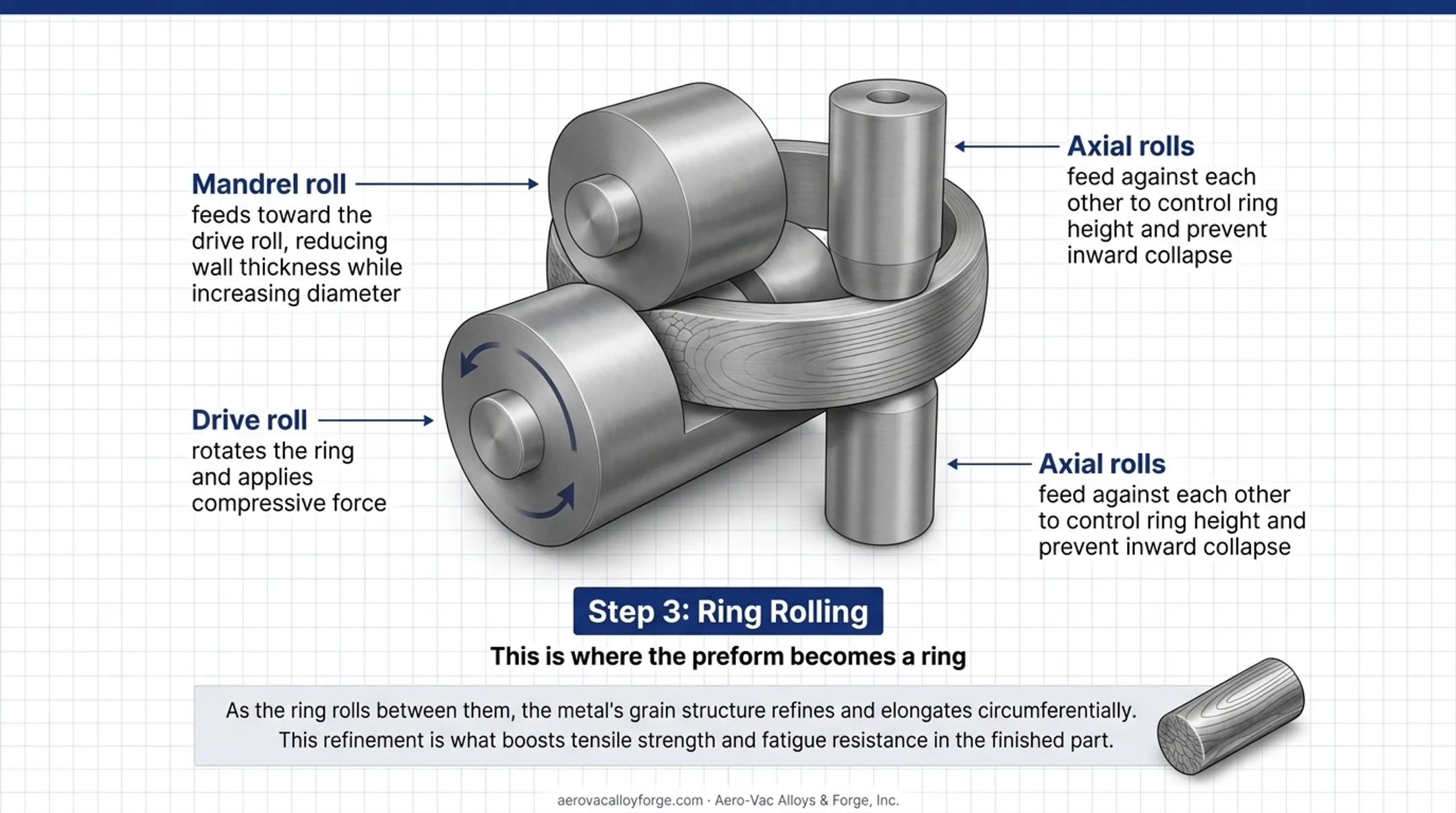

Step 3: Ring Rolling
This is where the preform becomes a ring. Three roll types work together:
- Drive roll — rotates the ring and applies compressive force
- Mandrel roll — feeds toward the drive roll, reducing wall thickness while increasing diameter
- Axial rolls — feed against each other to control ring height and prevent inward collapse
As the ring rolls between them, the metal's grain structure refines and elongates circumferentially. This refinement is what boosts tensile strength and fatigue resistance in the finished part.
Step 4: Finishing Operations
The rolled ring then goes through heat treatment, rough or precision machining, and non-destructive testing (ultrasonic testing, magnetic particle inspection) to confirm internal and surface integrity.
Material utilization matters here too. One manufacturer guide reports ring rolling uses up to 95% of the starting billet, compared to just 50–70% utilization when machining rings from solid bar stock, where the rest becomes scrap chips. That's a meaningful cost difference at scale.

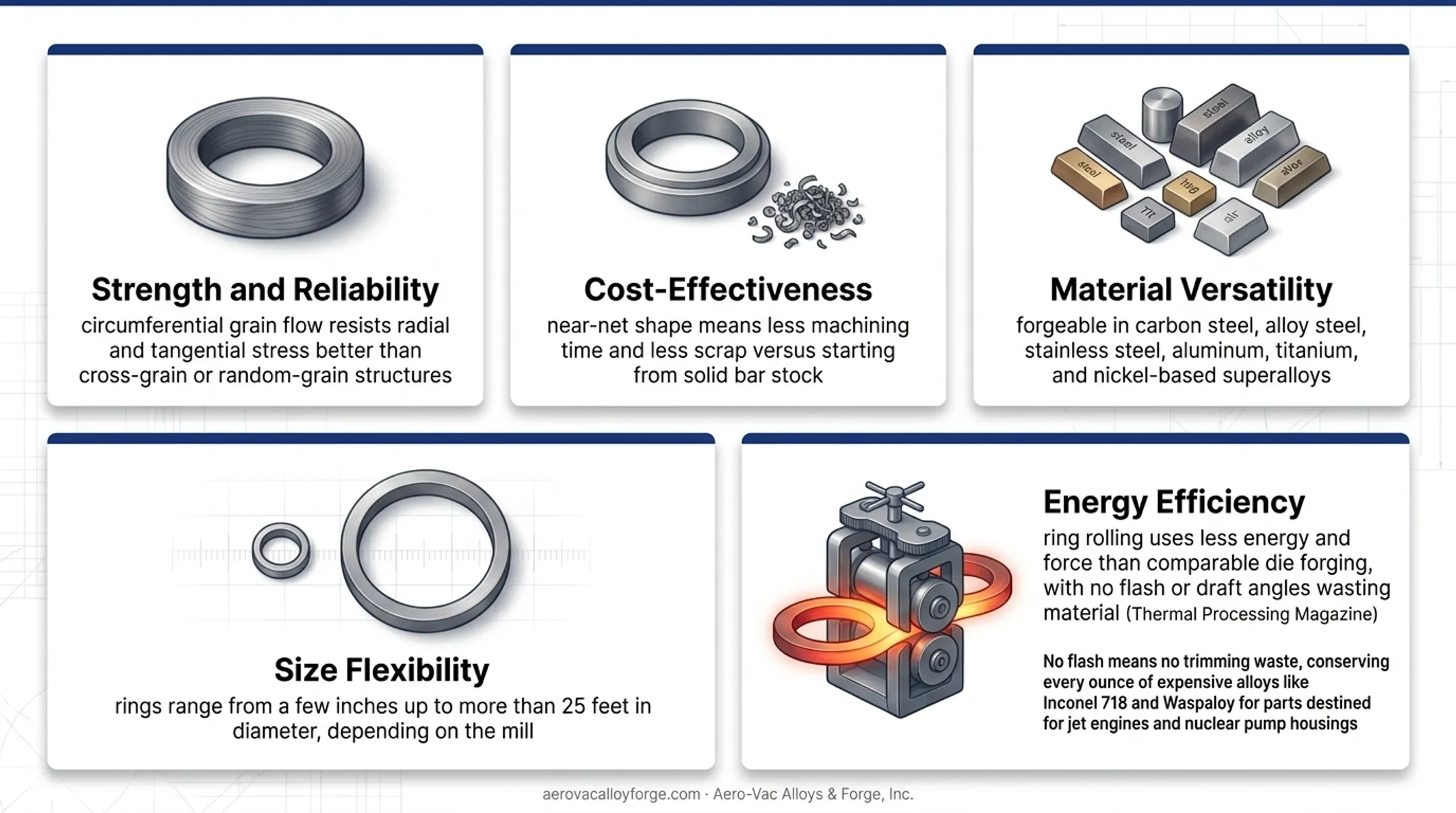

Key Benefits of Rolled Ring Forgings
Why choose a rolled ring over a cast or machined alternative? A few reasons stand out.
- Strength and reliability: circumferential grain flow resists radial and tangential stress better than cross-grain or random-grain structures
- Cost-effectiveness: near-net shape means less machining time and less scrap versus starting from solid bar stock
- Material versatility: forgeable in carbon steel, alloy steel, stainless steel, aluminum, titanium, and nickel-based superalloys
- Size flexibility: rings range from a few inches up to more than 25 feet in diameter, depending on the mill
- Energy efficiency: ring rolling uses less energy and force than comparable die forging, with no flash or draft angles wasting material (Thermal Processing Magazine)
No flash means no trimming waste. For a part destined for a jet engine or a nuclear pump housing, every ounce of conserved raw material matters when you're working with expensive alloys like Inconel 718 or Waspaloy.
Materials, Types, and Industry Applications
Common Materials Used in Rolled Ring Forgings
Rolled rings come in a wide alloy range, each suited to different demands:
- Alloy steel — 4130 and 4140 (AMS 6370, AMS 6382) offer strong strength-to-cost ratios for structural components
- Stainless steel — 17-4PH, 15-5PH, and 304L resist corrosion in harsh environments while holding tensile strength
- Superalloys — Hastelloy X (AMS 5754) and similar nickel grades handle extreme heat in turbine and jet-engine parts
- Carbon steel — chosen when cost outweighs extreme temperature or corrosion demands
Common Ring Types
Most rolled ring forgings ship in one of these cross-sections:
- Rectangular rings — uniform section for structural parts, bearings, and general machining stock
- Contoured rings — near-net profiles that cut machining time on complex geometries
- Profiled rings — custom sections matched to the final part outline

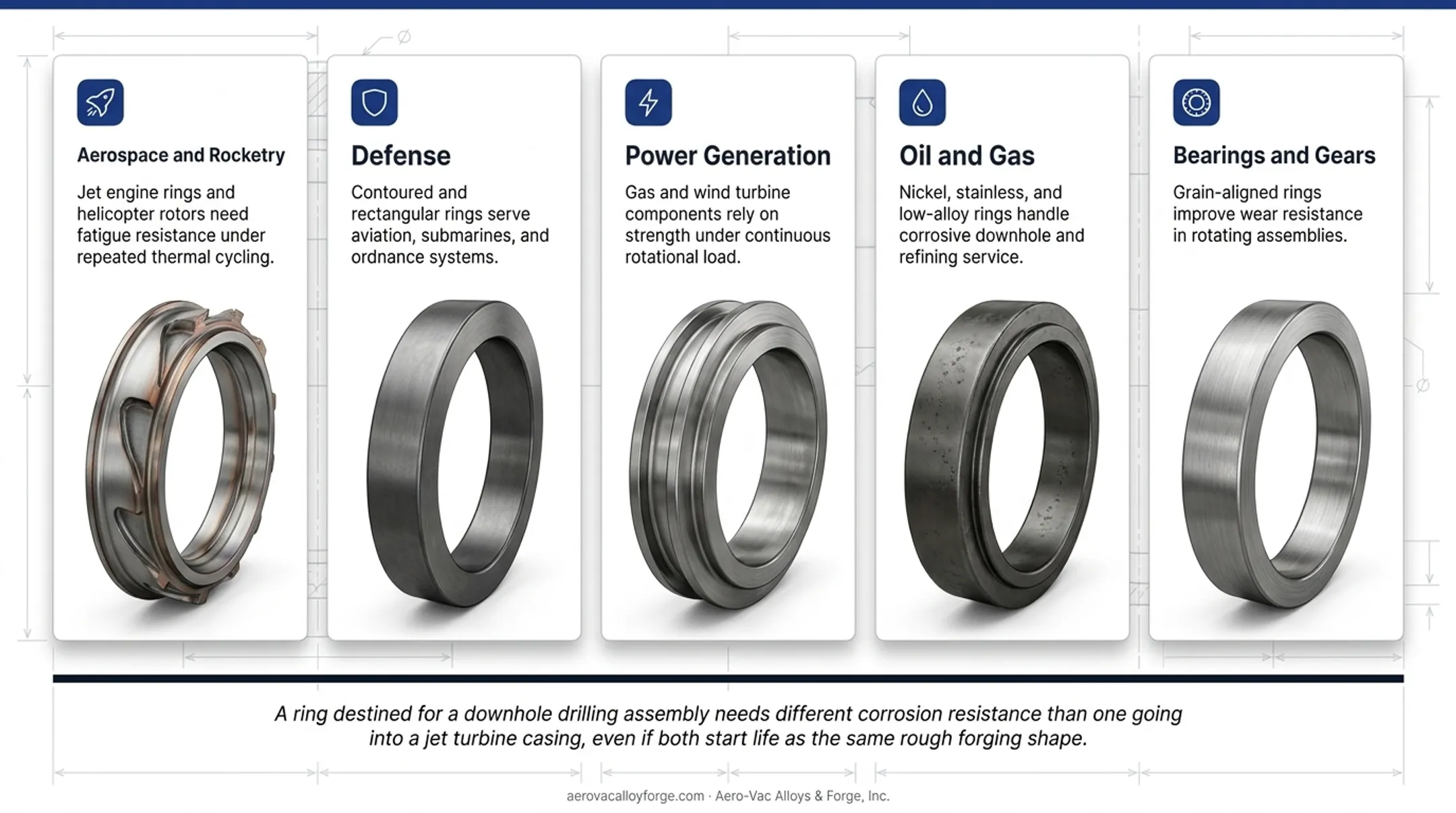

Where Rolled Ring Forgings Are Used
Industry requirements drive which alloy and ring type make sense:
- Aerospace and rocketry — jet engine rings and helicopter rotors need fatigue resistance under repeated thermal cycling
- Defense — contoured and rectangular rings serve aviation, submarines, and ordnance systems
- Power generation — gas and wind turbine components rely on strength under continuous rotational load
- Oil and gas — nickel, stainless, and low-alloy rings handle corrosive downhole and refining service
- Bearings and gears — grain-aligned rings improve wear resistance in rotating assemblies
Temperature, corrosion exposure, and load type all drive which alloy makes sense. A ring destined for a downhole drilling assembly needs different corrosion resistance than one going into a jet turbine casing, even if both start life as the same rough forging shape.
Sourcing the Right Rolled Ring Forging Supplier
Not every distributor can back up a rolled ring forging order with the documentation aerospace and defense buyers actually need.
Certification matters here. AS9100 builds on ISO 9001 by adding aerospace-specific requirements around operational risk management, product safety, and raw material testing, according to IAQG's standard for aviation, space, and defense quality management.
For regulated industries, that certification isn't a nice-to-have. It's what makes heat-lot traceability and material certification possible on every order.
When evaluating a supplier, ask for:
- Current AS9100 and ISO 9001 certificates, with scope confirming they cover forged ring products
- Heat-lot and melt-lot traceability on the specific material batch
- Material test reports and certificates of conformance
- NDT records confirming ultrasonic or magnetic particle inspection was performed
- Fast quote turnaround — schedule risk kills more projects than material cost ever does
That last point is where a lot of sourcing goes wrong. Long mill lead times or unresponsive large distributors can stall a project for weeks. If you need a custom-cut or odd-sized ring on a compressed timeline, working with someone who picks up the phone matters as much as their certification list.
Aero-Vac Alloys & Forge is an ISO 9001 and AS9100-certified manufacturing distributor based in Kalama, Washington. The team connects aerospace, defense, and industrial customers with the right rolled ring forging grade and specification, whether that's an alloy steel ring under AMS 6382 or a stainless forging in 17-4PH.
Aero-Vac handles small quantities and large orders, with a live, knowledgeable team that tracks down exact specs instead of leaving buyers to sort through mill catalogs alone. With global export experience and customers ranging from Boeing to General Electric to Northrop, the focus stays on getting the right material on a schedule that actually works.
Frequently Asked Questions
What does forging a ring mean?
Forging a ring means shaping heated metal under compressive force into a circular form, rather than casting it from molten metal or cutting it from solid stock. The process produces a denser, stronger structure than casting alone.
What is rolled ring forging?
Rolled ring forging is a seamless process where a pierced, hollow billet is rolled and expanded into a one-piece ring. Circumferential grain flow gives the ring better strength and fatigue resistance than a cast equivalent.
What is roll forging and how does it work?
Roll forging reduces the cross-section of heated bars, billets, or plates using rotating rolls. It's a distinct process from ring rolling, which works on hollow preforms rather than solid stock.
What is the purpose of a ring roller?
A ring roller applies pressure to a rotating pierced workpiece, expanding it into a one-piece seamless ring. It shapes and sizes the ring simultaneously, with no welding involved.
Is aluminum a good ring material?
Yes, when weight savings matter most. Aluminum forges at lower temperatures than steel or titanium, offers solid corrosion resistance, and is common in aerospace parts where weight outweighs extreme heat resistance.
How long do forged rings last?
Forged rings can last decades in demanding service conditions. The refined, circumferential grain structure from rolling improves fatigue resistance, which extends service life compared to cast or machined alternatives.
