Radiographic testing (RT) remains one of the most trusted nondestructive testing (NDT) methods for catching these hidden defects before parts ever leave the shop floor. It uses X-rays or gamma rays to see through solid metal and reveal what's happening inside, without cutting, drilling, or damaging the part.
This article breaks down how RT works, the different techniques available, what defects it catches best, and the standards that govern its use in critical industries.
Key Takeaways
- Detect internal defects with X-rays or gamma rays without damaging the tested part
- Choose among three imaging methods: film, computed, and digital radiography
- Prefer RT for volumetric defects like porosity and inclusions; use ultrasonic testing for tight planar cracks
- Meet ASTM, ASME, and ISO requirements for aerospace and defense-grade material acceptance
What Is Radiographic Testing and How Does It Work?
Radiographic testing (RT) is a nondestructive testing (NDT) method that uses ionizing radiation to image the internal structure of a component. The concept traces back to Wilhelm Roentgen's discovery of X-rays in 1895, and the core physics hasn't changed much since.
The basic setup: a radiation source on one side of the part, the test object in the middle, and an image receptor (film or digital detector) on the other side. Radiation passes through the material and different densities and thicknesses attenuate the beam differently. That variation shows up as contrast on the image.

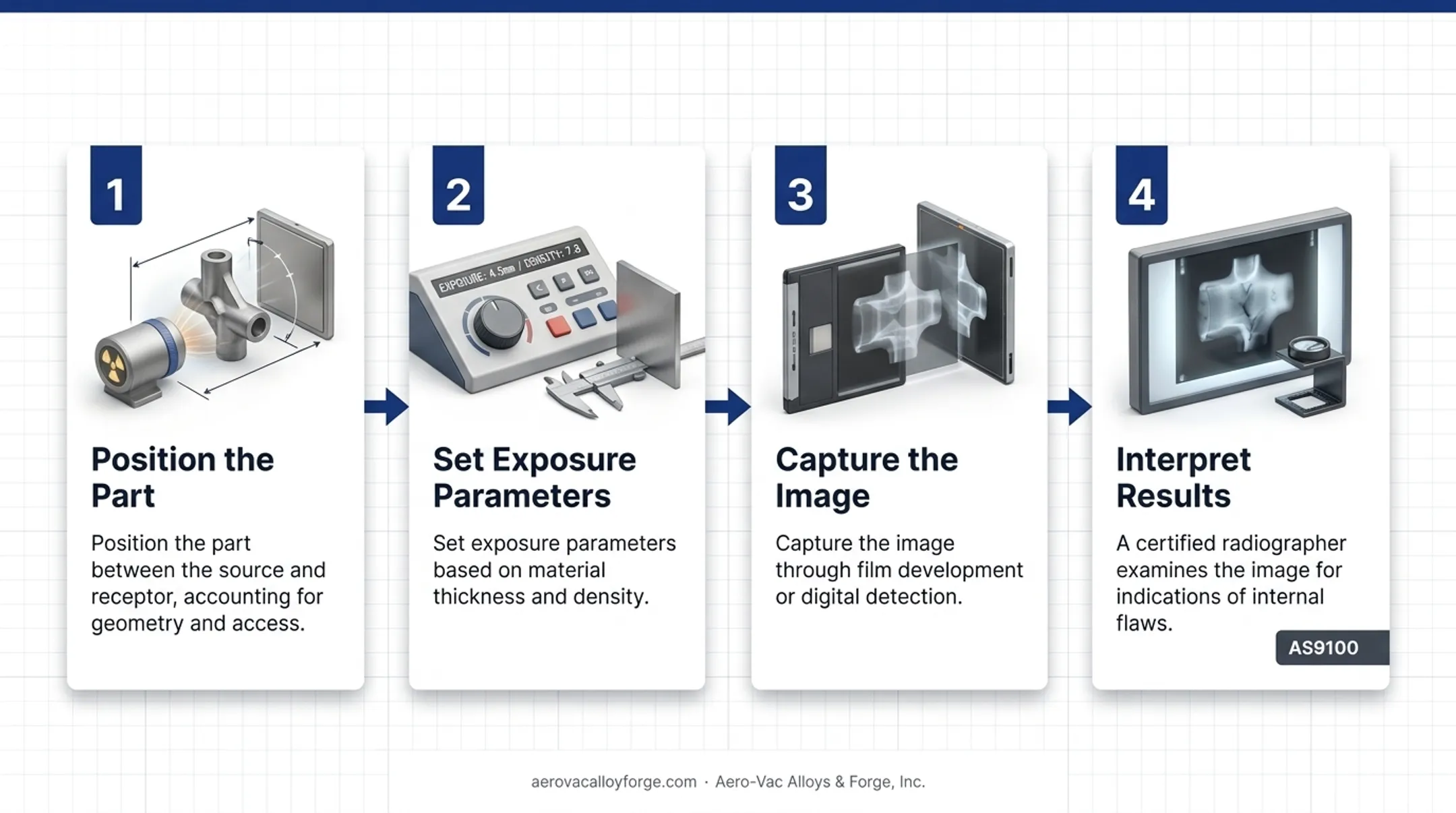

The Inspection Process
- Position the part between the source and receptor, accounting for geometry and access
- Set exposure parameters based on material thickness and density
- Capture the image through film development or digital detection
- Interpret results: a certified radiographer examines the image for indications of internal flaws
X-Ray vs. Gamma-Ray Sources
| Aspect | X-ray | Gamma-ray |
|---|---|---|
| Power source | Electrically powered | No electricity required |
| Energy output | Adjustable | Fixed by isotope (e.g., Iridium-192) |
| Best fit | Shops and sites with power access | Remote fieldwork such as pipeline welds |
Every proper RT inspection includes an Image Quality Indicator (IQI), a reference object placed near the part to confirm the radiograph has adequate sensitivity and resolution. Without an IQI, you cannot confirm the radiograph met the required sensitivity for the inspection.
What Are the Different Types of Radiographic Testing?
Not all RT looks the same. The technique varies based on application, portability needs, and required resolution.
| Type | Key Characteristics |
|---|---|
| Film Radiography | Traditional method, high resolution, requires chemical darkroom processing |
| Computed Radiography (CR) | Reusable phosphor plates, digital output, good for field portability |
| Digital Radiography (DR) | Flat-panel detectors, real-time results, common in aerospace/automotive QC |
| Computed Tomography (CT) | Multiple-angle exposures build 3D cross-sections for complex assemblies |
| Real-Time Radiography (RTR) | Live imaging, often used for corrosion-under-insulation screening |
| Neutron Radiography | Reveals hydrogenous materials (oil, water, plastics) inside metal housings |

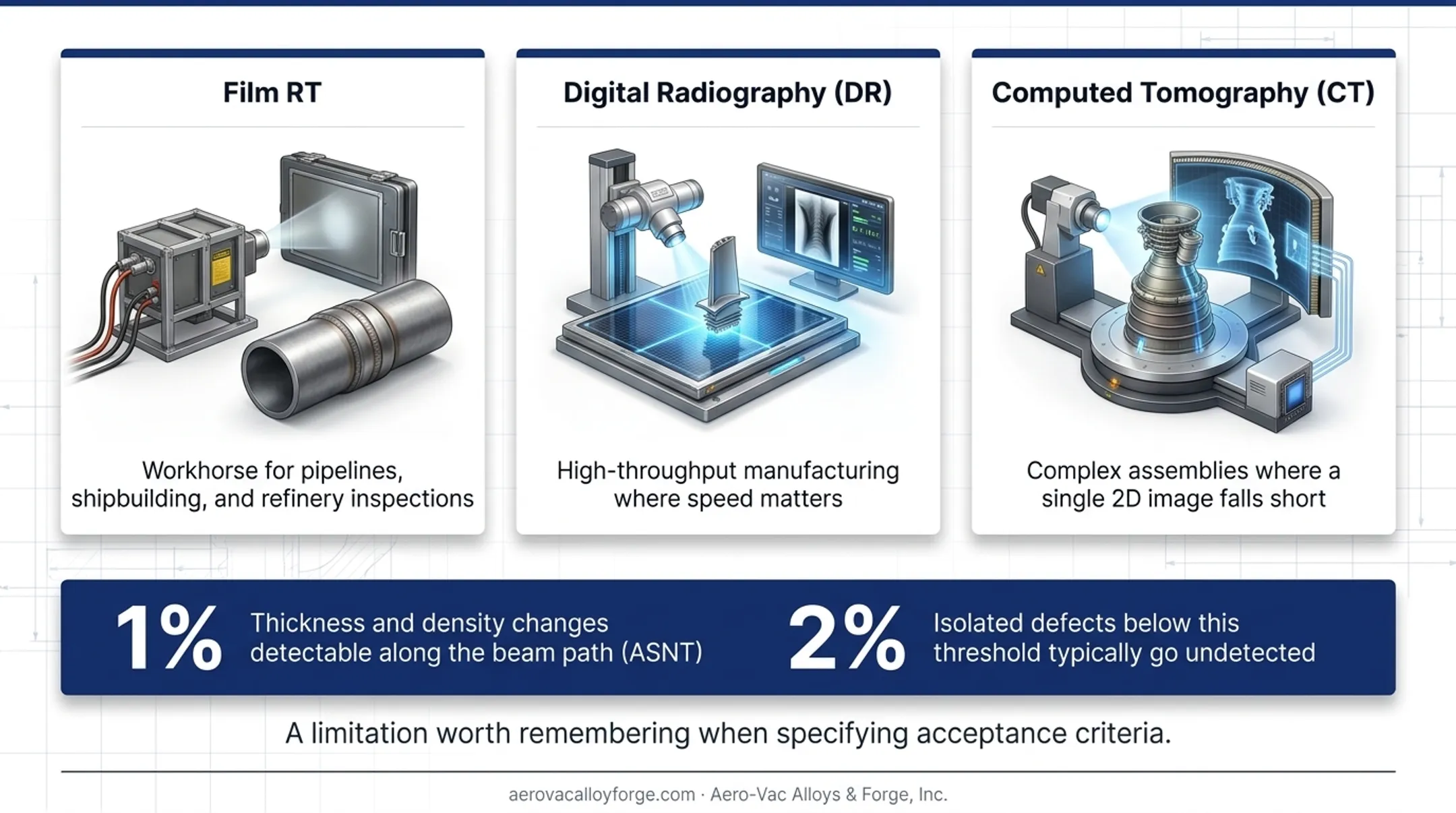

Film RT is still the workhorse for pipelines, shipbuilding, and refinery inspections. DR has taken over in high-throughput manufacturing environments where speed matters. CT, meanwhile, is reserved for complex assemblies where a single 2D image can't tell the whole story.
Whichever method you choose, the same detection limits still apply. According to ASNT, RT can detect thickness and density changes down to roughly 1% along the beam path. Isolated defects below about 2% of total thickness typically go undetected — a limitation worth remembering when specifying acceptance criteria.
How Is RT Used to Inspect Metals and Detect Defects?
RT works best on volumetric defects — flaws with three-dimensional shape rather than a flat plane. Common examples include:
- Porosity (gas pockets trapped during solidification)
- Slag inclusions
- Lack of fusion in welds
- Corrosion-related wall loss
- Larger voids and cavities

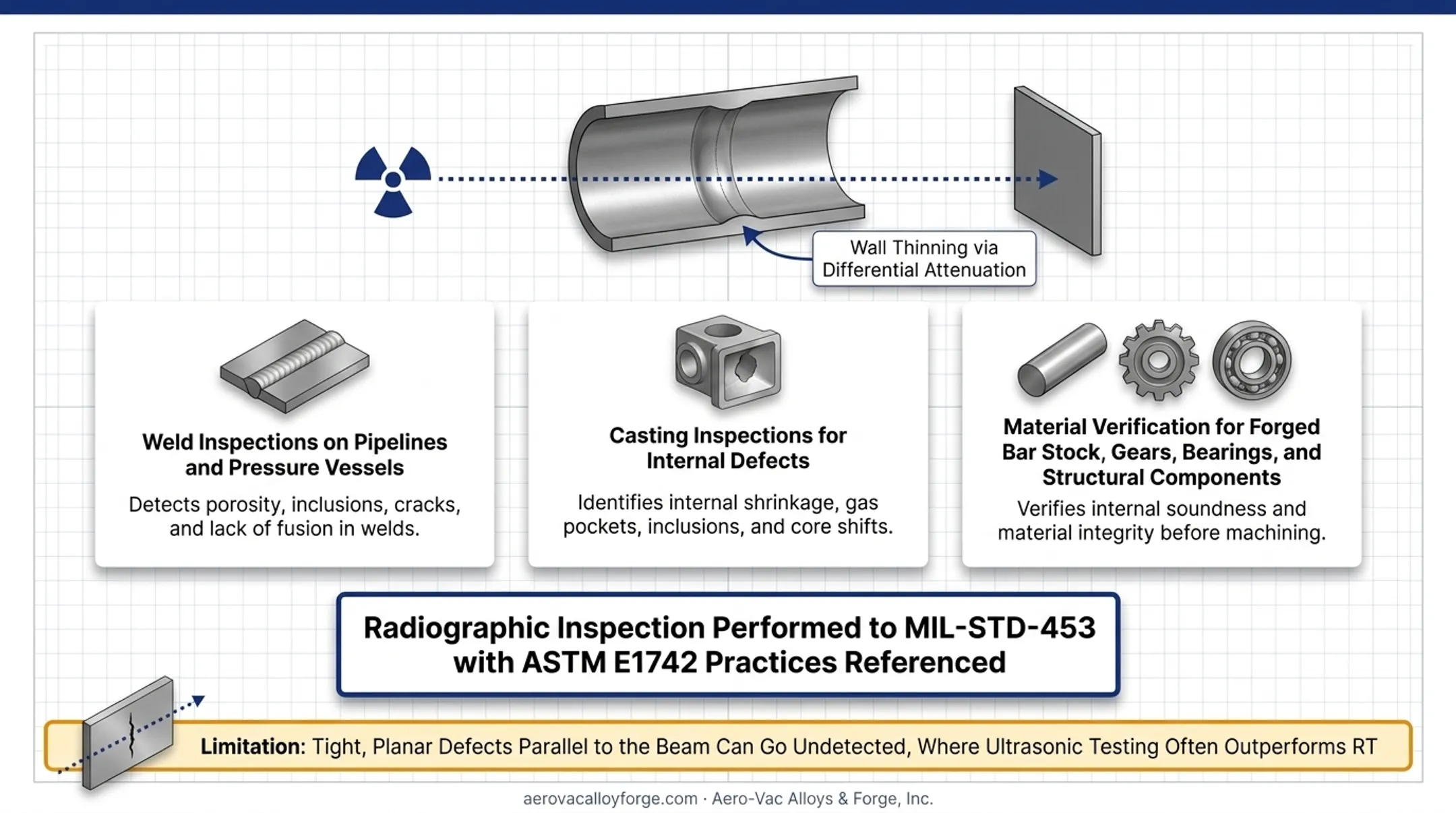

Common Inspection Scenarios
RT is used heavily in three categories:
- Weld inspections on pipelines and pressure vessels, with source and detector on opposite sides to reveal wall thinning through differential attenuation
- Casting inspections to find internal defects that weaken finished-part strength
- Material verification for forged bar stock, gears, bearings, and structural components bound for aerospace or oil and gas service For suppliers of alloy steels, titanium, and nickel-based forgings into aerospace and defense, RT is one piece of a larger material-integrity program.
At Aero-Vac Alloys & Forge, that program includes independent third-party testing covering destructive and non-destructive methods. Radiographic inspection is performed to MIL-STD-453, the DoD specification for metallurgical inspection of alloy and forge materials, with ASTM E1742 practices referenced as well. Customers can confirm that material entering critical builds has been screened for internal discontinuities. One limitation: RT struggles with tight, planar defects oriented parallel to the radiation beam. A hairline crack running in the wrong direction relative to the source can go undetected. That is where ultrasonic testing often outperforms RT.
RT vs. Other Common NDT Methods
No single NDT method catches everything. Understanding where RT fits relative to alternatives helps determine the right inspection strategy.
RT vs. Ultrasonic Testing (UT)
UT uses sound waves instead of radiation. Key differences from RT:
- Finds tight, planar cracks that RT might miss
- Needs access to only one side of a part
- Works when geometry blocks source and detector placement on opposite faces
RT still wins for producing a visual map of volumetric internal conditions.

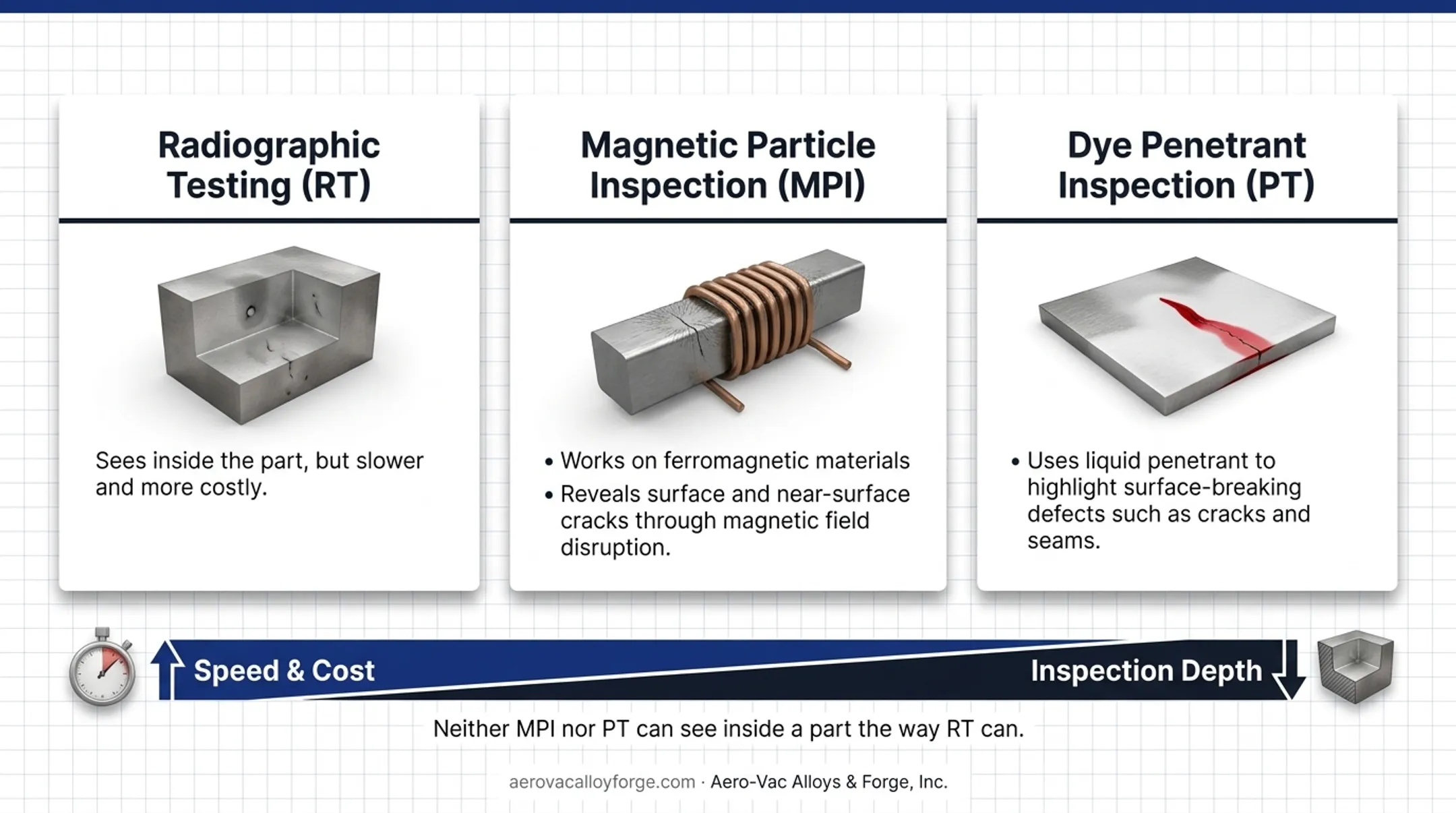

RT vs. Magnetic Particle (MPI) and Dye Penetrant (PT)
Both MPI and PT are faster and cheaper than RT, but they only catch surface or near-surface flaws:
- MPI: Works on ferromagnetic materials; reveals surface and near-surface cracks through magnetic field disruption
- PT: Uses liquid penetrant to highlight surface-breaking defects such as cracks and seams
Neither method can see inside a part the way RT can. Trade-off: speed and cost versus inspection depth.
Standards, Safety, and Equipment Inspection Requirements
RT in aerospace and defense-grade applications is governed by a defined set of industry and regulatory standards.
Governing Standards
- ASTM E1742 — minimum requirements for radiographic examination of metallic and nonmetallic materials
- ASME BPVC Section V — nondestructive examination requirements under the Boiler and Pressure Vessel Code
- ISO 17636-1 and -2 — radiographic testing of welds, covering both film and digital detector techniques
- API 1104 and API 510 — pipeline welding and pressure vessel inspection requirements for oil and gas
Safety Protocols
Because RT relies on ionizing radiation, safety protocols are mandatory. Per NRC regulations under 10 CFR Part 34, radiographers and assistants must:
- Wear direct-reading dosimeters, alarm ratemeters, and personnel dosimeters
- Work within controlled access zones marked by visible and audible warning signals
- Complete refresher training at intervals not exceeding 12 months
- Undergo job-performance inspections at least every 6 months
Equipment Calibration Schedule
NRC rules set fixed intervals for instruments, exposure gear, and sealed sources:
- Calibrate survey instruments at least every 6 months, holding accuracy within ±20% of the calibration source
- Inspect and maintain exposure devices, source changers, and associated equipment every 3 months, or before first use after service
- Leak-test sealed sources every 6 months; remove any source with removable contamination from service immediately
Frequently Asked Questions
What is radiographic testing?
Radiographic testing is an NDT method that uses X-rays or gamma rays to produce images revealing internal defects in metal components, without damaging the part being inspected.
How is radiographic testing performed?
A radiation source is aimed at the test object, with film or a digital detector on the opposite side. After exposure to X-rays or gamma rays, a certified radiographer interprets the density-based image for internal defects.
What are the different types of radiographic testing?
The main types include film radiography, computed radiography (CR), digital radiography (DR), computed tomography (CT), and real-time radiography (RTR). Each varies in resolution, speed, and portability.
What is industrial radiographic testing used for?
Industrial RT verifies weld quality, casting integrity, and raw material soundness across aerospace, energy, and manufacturing sectors. It catches porosity, inclusions, cracks, and lack of fusion before parts enter service.
What is a pipe RT test?
A pipe RT test inspects pipeline welds and measures wall thickness for corrosion or thinning. The source sits on one side of the pipe and the detector on the other, capturing density variations caused by material loss.
How often should X-ray machines be inspected?
Survey instruments require calibration at least every 6 months, while exposure devices and associated equipment need inspection at intervals not exceeding 3 months, per NRC and manufacturer guidance.
