Jig Grinding Services for Precision Hole and Contour Accuracy

Jig grinding is a high-precision grinding process used to finish holes, bores, contours, and complex profiles to very close dimensional and positional tolerances. A jig grinder uses a small grinding wheel and highly controlled machine movements to remove minimal material accurately. It is commonly specified for dies, fixtures, gauges, aerospace components, and other parts where conventional machining alone may not achieve the required accuracy.

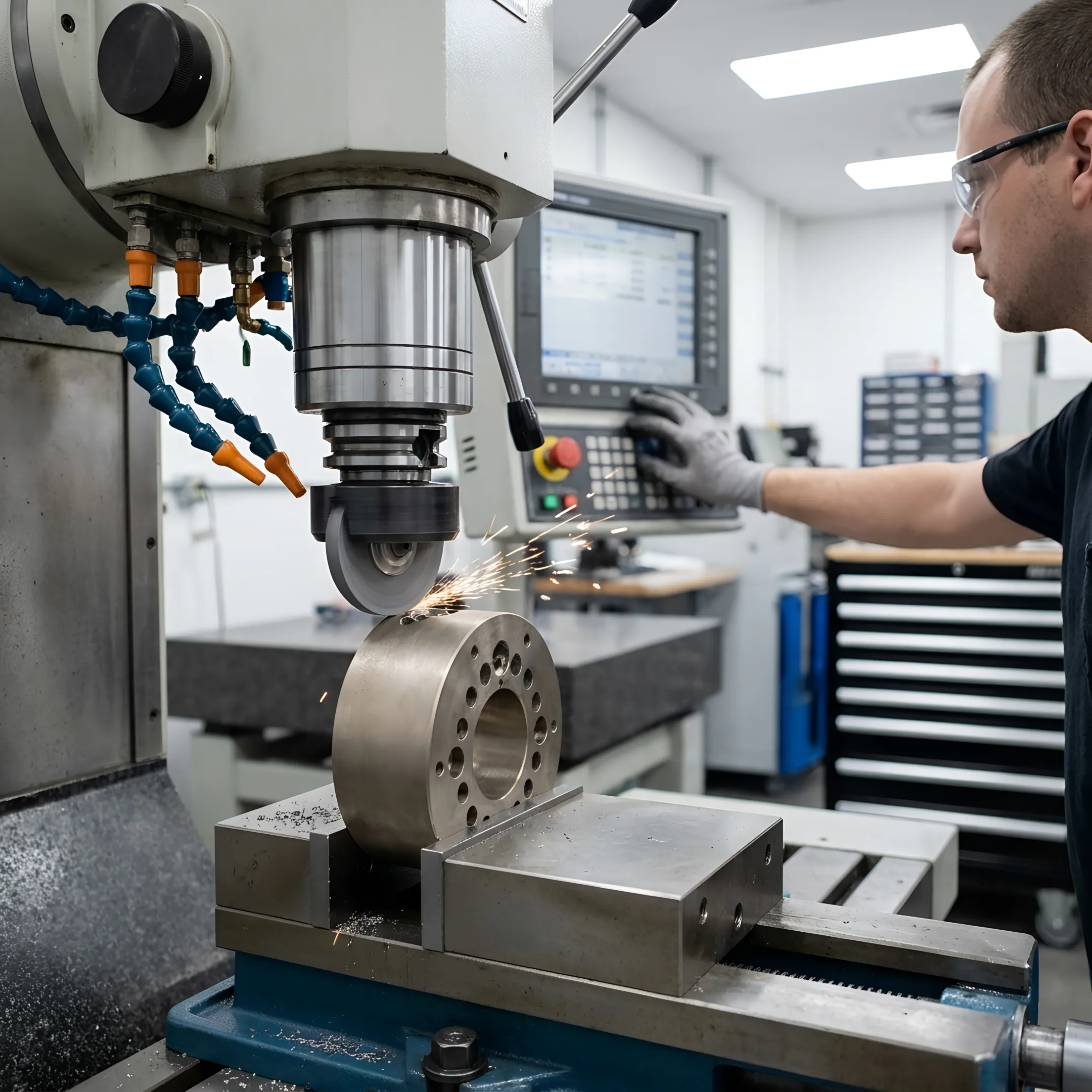

A jig grinder positions a workpiece precisely and uses a rotating abrasive wheel to grind internal features or detailed profiles. The machine controls the wheel’s location, feed, and movement to achieve accurate sizes, true locations, and fine finishes. Grinding is typically performed after earlier machining steps, allowing the process to correct or finish critical features without removing unnecessary material.

A jig is a workholding or guidance device that positions a part consistently and helps ensure a tool operates in the correct location. In machining, jigs improve repeatability, reduce setup variation, and support accurate production of multiple parts. In jig grinding, the term also reflects the machine’s capability to locate and finish holes or profiles with exceptional positional accuracy.

Jig grinding is appropriate when a drawing calls for extremely close tolerances, precise relationships between holes, intricate profiles, or a fine finish on hardened material. Conventional milling, drilling, or boring often establishes the feature first, while jig grinding provides the final controlled finish. Reviewing the part drawing, material condition, and tolerance callouts helps determine whether jig grinding is necessary.

Jig grinding can be used on many metals, including alloy steels and materials that have been heat treated, provided the grinding method and abrasive are matched to the application. Material grade, hardness, geometry, and required finish all influence the approach. Supplying the drawing and material specification early helps coordinate suitable machining, heat treatment, testing, and finishing requirements.

A useful quote request includes a current drawing, material grade, part quantity, feature tolerances, surface-finish requirements, and any applicable inspection or documentation needs. Note whether material will be customer supplied or sourced, as well as any heat-treatment condition. Providing required delivery timing and shipping destination also helps establish the most practical procurement and production plan.

Yes. Jig grinding is commonly used for prototypes, repair components, fixtures, and production parts when critical precision features are required. The best approach depends on part complexity, repeat quantity, material availability, and inspection requirements. Aero-Vac Alloys & Forge, Inc. supports both small quantities and larger orders while helping buyers coordinate custom material and service requirements.

Quality certifications provide a structured framework for managing processes, documentation, traceability, and continuous improvement. Aero-Vac Alloys & Forge, Inc. holds ISO 9001:2008 and AS9100 certifications, which are particularly relevant to specification-driven and aerospace-related supply requirements. Buyers should still define their drawing, inspection, material-certification, and acceptance requirements clearly for each individual project.
