This is exactly why ASTM F519 testing exists.
An ASM International case history documents an AISI 4340 landing-gear beam that failed through brittle intergranular fracture, a textbook hydrogen-induced delayed failure caused by damaged coating and corrosion-released hydrogen entering the steel under sustained stress. The same case history records aircraft-lifting eyebolts snapping mid-lift on a roughly 7,000-lb aircraft. The bolts were 10 Rockwell C points harder than specified, which made them far more susceptible to hydrogen cracking.
For manufacturers supplying aerospace, defense, and oil and gas customers, F519 testing is the quality gate that keeps these failures out of the field. This guide breaks down what it is, why it matters, and how the process actually works.
TL;DR
- F519 is the ASTM mechanical test confirming plated or coated high-strength steel is free of hydrogen embrittlement.
- It protects safety-critical aerospace, defense, and industrial parts from delayed brittle fracture.
- It requires precise specimen prep, controlled plating, and timed hydrogen-relief baking.
- Proper testing plus traceable, certified material cuts failure risk and liability exposure.
- Aero-Vac Alloys & Forge supplies certified high-strength alloy steels for F519-tested applications.
What Is F519 Hydrogen Embrittlement Testing?

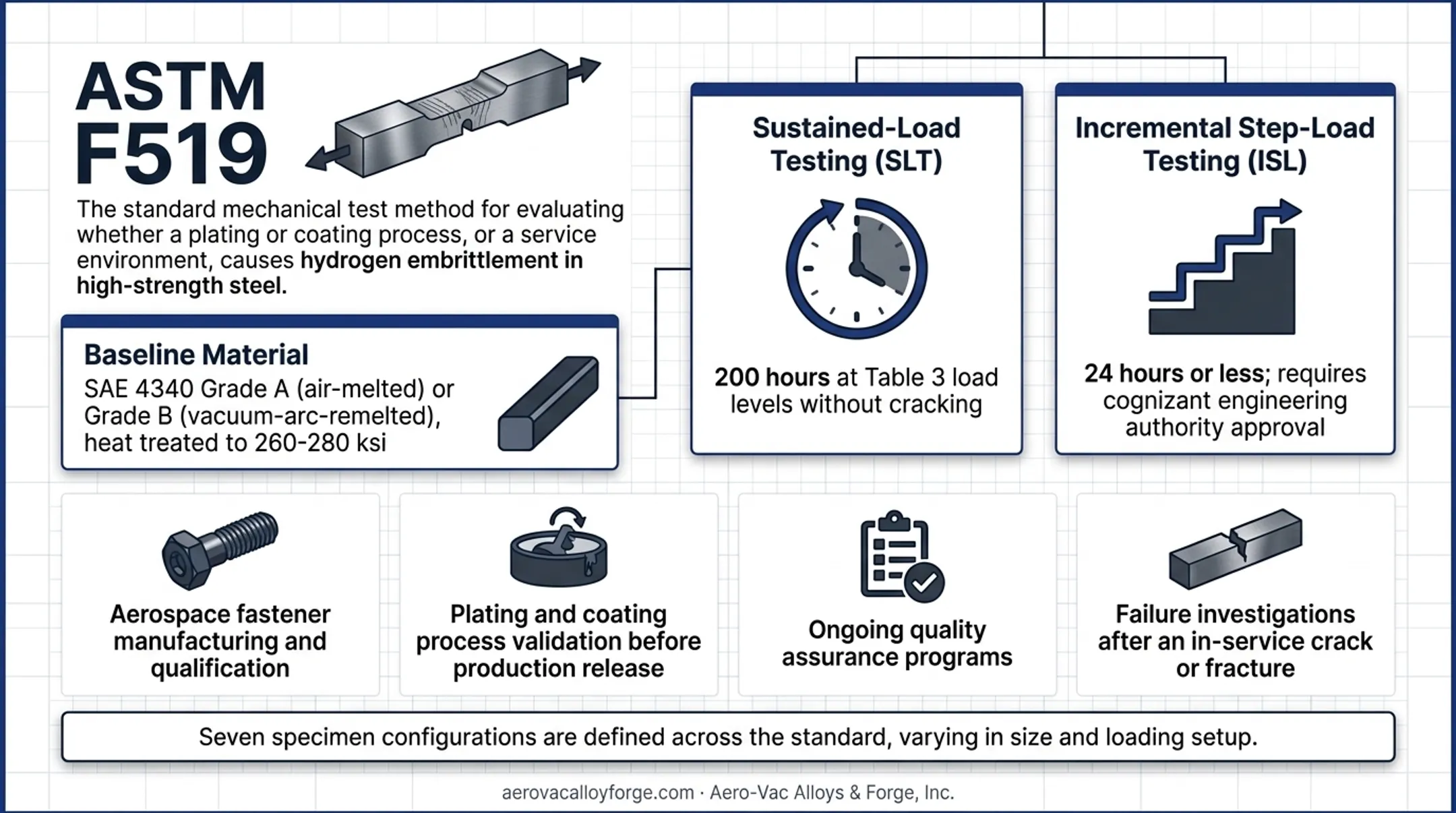

ASTM F519 is the standard mechanical test method for evaluating whether a plating or coating process (or a service environment) causes hydrogen embrittlement in high-strength steel.
The current ASTM F519-23 standard uses air-melted SAE 4340 Grade A or vacuum-arc-remelted SAE 4340 Grade B as its baseline material, heat treated to 260-280 ksi.
Important nuance: F519 doesn't measure how susceptible different steels are to hydrogen embrittlement. It measures whether a process (plating, coating, or chemical exposure) introduces embrittling hydrogen.
You'll find F519 testing used in:
- Aerospace fastener manufacturing and qualification
- Plating and coating process validation before production release
- Ongoing quality assurance programs
- Failure investigations after an in-service crack or fracture
The standard defines seven specimen configurations with different sizes and loading setups. It supports two test approaches:
- Sustained-load testing (SLT): Specimens must survive 200 hours at the load levels specified in the standard's Table 3 without cracking.
- Incremental step-load testing (ISL): A faster, quantitative alternative (24 hours or less) that requires approval from the cognizant engineering authority before it can replace SLT.
Why F519 Testing Is Critical in Aerospace and Industrial Manufacturing

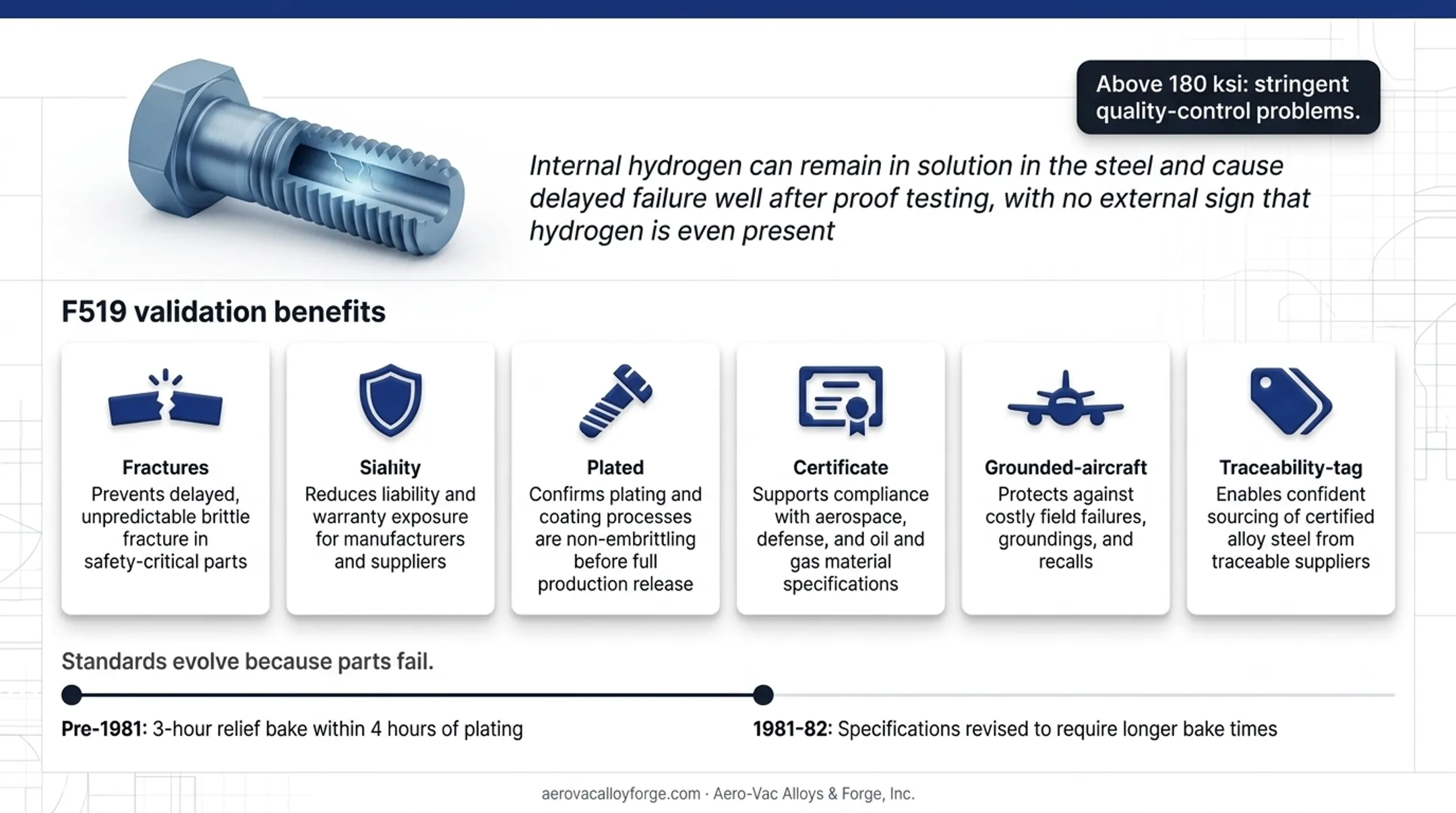

Here's the uncomfortable truth about hydrogen embrittlement: it hides. NASA's Fastener Design Manual states plainly that internal hydrogen can remain in solution in the steel and cause delayed failure well after proof testing, with no external sign that hydrogen is even present.
The manual also notes that embrittlement risk climbs as fastener strength climbs, and it flags high-strength fasteners (above 180 ksi) as bringing "stringent quality-control problems."
A plated part can pass dimensional checks, torque specs, and visual inspection today and still fail catastrophically next month. That's the gap F519 closes.
What proper F519 validation delivers:
- Prevents delayed, unpredictable brittle fracture in safety-critical parts
- Reduces liability and warranty exposure for manufacturers and suppliers
- Confirms plating and coating processes are non-embrittling before full production release
- Supports compliance with aerospace, defense, and oil and gas material specifications
- Protects against costly field failures, groundings, and recalls
- Enables confident sourcing of certified alloy steel from traceable suppliers
The NASA manual also documents a real process-control failure: earlier specs required only 3 hours of relief baking within 4 hours of plating. That treatment proved inadequate, and specifications were revised in 1981–82 to require longer bake times. Standards evolve because parts fail. Current F519 process discipline exists for the same reason.
How F519 Testing Works — Step by Step
The theory is straightforward. Execution is where things go wrong. Rushed hydrogen relief bakes, sloppy masking, and uncontrolled surface activation are the most common ways a plating shop turns a workable process into a failed lot.
Step 1 – Sample Preparation
Specimens come out of original packaging with oil removed, then go through a pre-embrittlement relief bake to establish a hydrogen-free baseline before any plating begins. Getting this baseline wrong contaminates every result downstream.
Step 2 – Masking and Surface Activation
Only the areas intended for plating get exposed. The activation method — acid etch, electro-clean, or sandblast — has to be tightly controlled. Loose masking or an aggressive activation step can drive uncontrolled hydrogen uptake before plating even starts.
Step 3 – Plating Execution
Racking position, current density, and bath chemistry all affect how evenly the coating deposits and how much hydrogen the steel absorbs. Uneven racking creates uneven absorption, which creates unreliable test results.
Step 4 – Hydrogen Relief Bake
This is the step that actually removes the hydrogen before it can cause cracking. NASA's fastener manual documents cadmium-plated parts requiring a bake at 375°F for 23 hours, starting within 2 hours of plating — a tight window that's easy to miss on a busy shop floor. SAE's AMS2759/9 specification governs this baking requirement for hydrogen introduced during plating and related chemical processing.
Step 5 – Sustained/Incremental Load Testing
Specimens get loaded per the standard's specified levels and monitored for the full test duration — 200 hours for SLT, or the shorter ISL alternative if approved. Any fracture during the hold is a failure.

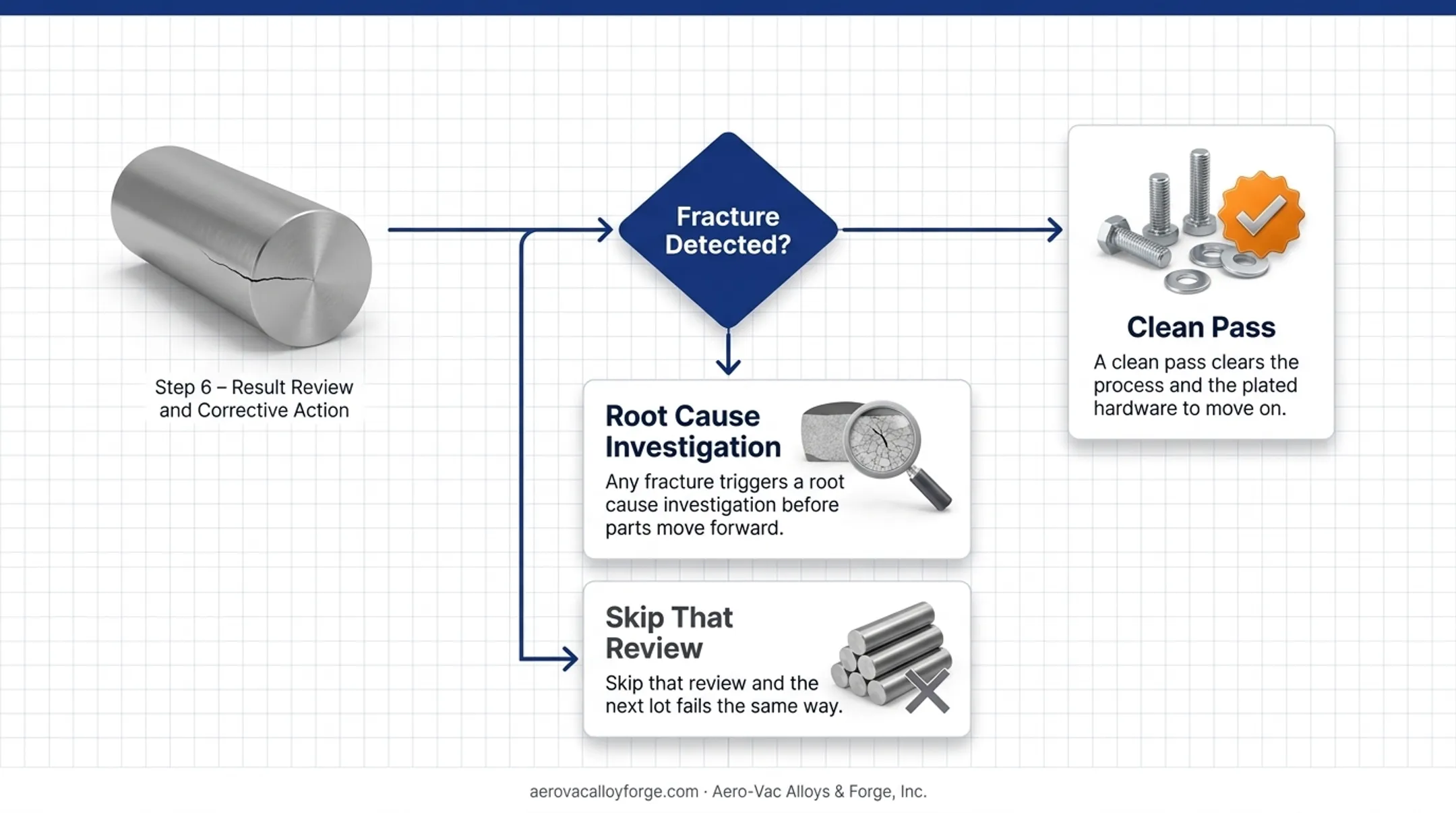

Step 6 – Result Review and Corrective Action
Any fracture triggers a root cause investigation before parts move forward. Skip that review and the next lot fails the same way. A clean pass clears the process and the plated hardware to move on.
F519 Testing – Example Case Walkthrough
Here's how a plated high-strength steel fastener batch typically moves through F519 testing:
- Baseline established. Material arrives, oil is removed, and a pre-bake confirms a hydrogen-free starting point.
- Masking and plating performed. A common mistake here: racking parts from a notch or thread root, which creates a stress concentration point right where cracks are most likely to start.
- Relief bake completed. Done within the required window. The mistake to avoid: delaying the bake, which gives absorbed hydrogen time to migrate deeper into the steel before it can be driven out.
- Sustained load test run. 200 hours pass with no fracture observed, confirming the plating process itself is non-embrittling.
The result: a documented pass becomes the evidence file that supports release of the entire production lot. Without it, that lot has no defensible proof that the process didn't introduce embrittling hydrogen.
How Aero-Vac Alloys & Forge Can Help
F519 testing only tells you as much as the material behind it. Test a high-strength alloy with unknown chemistry, inconsistent hardness, or undocumented heat lot history, and you're qualifying a process against a moving target.
Aero-Vac Alloys & Forge, Inc. is an ISO 9001:2008 and AS9100 certified manufacturing distributor supplying high-strength alloy steels and forging stock for F519 qualification programs. Our catalog includes materials commonly specified in high-strength, plating-sensitive applications, including:
- AMS 6414 Grade 4340 alloy steel
- AMS 6419 300M/4340M vacuum-melted low-alloy steel
- AMS 5643 17-4PH precipitation-hardened stainless
What teams running qualification programs get from us:
- Fast procurement of exact material specifications for testing labs and manufacturers
- Just-in-time delivery that keeps qualification and production schedules on track
- A live technical contact for custom cuts and odd sizes, not a call center queue
- Proven supply history with Boeing, SpaceX, Lockheed, and General Electric
- Global export capability for customers sourcing certified alloys anywhere in the world
Need a specific grade for an upcoming F519 qualification run? Contact our sales team at sales@aerovacalloyforge.com or call (360) 673-0101 to confirm availability and lead time.
Conclusion
ASTM F519 testing exists because hydrogen embrittlement often stays hidden until a part fails in service. Sustained load testing, careful masking, tightly timed hydrogen relief baking, and rigorous result review are what stand between a passable-looking fastener and a delayed fracture in the field.
None of that testing means anything if the underlying material is a question mark. Sourcing certified, traceable, high-strength alloy steel from a supplier who understands the aerospace and defense specs you work to—such as Aero-Vac Alloys & Forge—is the foundation the rest of the process depends on.
Frequently Asked Questions
How do you test for hydrogen embrittlement?
Testing typically uses sustained load testing per ASTM F519, holding specimens at specified load levels for 200 hours. An approved incremental step-loading method under ASTM F1624 offers a faster, quantitative alternative when authorized.
What metals are prone to hydrogen embrittlement?
High-strength quenched-and-tempered steels become markedly more susceptible above roughly 1200 MPa, around 39 HRC/390 HV, according to peer-reviewed research. Certain stainless and titanium alloys can also be affected.
How do you eliminate hydrogen embrittlement risk?
Prevention relies on proper hydrogen relief baking after plating, choosing non-electrolytic coatings where possible, and controlling every step of the plating and activation process. Timing and temperature discipline matter as much as the chemistry itself.
Can hydrogen embrittlement be reversed?
Yes, but only before cracking starts. NASA research confirms absorbed hydrogen can be driven out through high-temperature diffusion baking if no crack has initiated. Once a crack forms, the damage is permanent.
What's the difference between ASTM F519 and API 20E testing?
F519 is a general mechanical test method used heavily in aerospace and defense plating qualification. API Spec 20E covers alloy and carbon steel bolting specifically for petroleum and natural gas equipment, including subsea and offshore bolting integrity.
Why does timing matter between plating and baking in F519 testing?
Hydrogen migrates into the steel immediately after plating and keeps diffusing deeper the longer it sits. NASA documentation cites a window as tight as 2 hours after plating for starting relief bake. Delay past that, and hydrogen can reach depths the bake won't reliably clear.
