But here's a challenge that doesn't get enough attention: grinding can't fix bad material. A world-class grinding wheel spinning against an inconsistent alloy or improperly heat-treated forging will still produce warped, out-of-spec, or burned parts. The wheel gets blamed. The material is usually the real problem.
This article covers what precision grinding actually is, the machine types behind it, where it shows up in aerospace and energy manufacturing, and why the raw material feeding into that grinder matters just as much as the machine itself.
Key Takeaways
- Precision grinding holds tolerances to ±0.0001 inches and surface finishes to 0.1 microns
- Surface, cylindrical, centerless, internal, thread, and jig grinding match distinct part geometries
- Aerospace, defense, energy, and medical manufacturers use precision grinding for critical, high-stress components
- Inconsistent alloy composition or poor heat treatment directly undermines grinding results, regardless of machine quality
What Is Precision Grinding?
Precision grinding uses a rotating abrasive wheel to remove tiny amounts of material from a workpiece, achieving tolerances and surface finishes that other machining methods can't match. The part is fed against the wheel at carefully controlled speed and pressure, which limits heat buildup and keeps the metal from distorting during the cut.
Published capability data from grinding equipment manufacturers gives a sense of scale:
- United Grinding reports aerospace-focused machines holding tolerances as tight as 0.0001 in
- Gerhard Designing & Manufacturing cites precision-jig-room processing down to 1/10,000 in (2.54 microns), with finishes as fine as 0.1 microns
- Norton Abrasives notes production grinding commonly targets 32 to 4.0 microinch Ra, sometimes finer
These are manufacturer-published capability figures rather than a universal industry standard. Actual requirements still come down to the drawing tolerance.
Precision grinding is almost always a finishing step, applied after milling, turning, or forging has brought the part close to final shape. It's commonly used on alloy steels, stainless steel, titanium, and superalloys, exactly the materials that show up in aerospace, defense, and energy hardware.

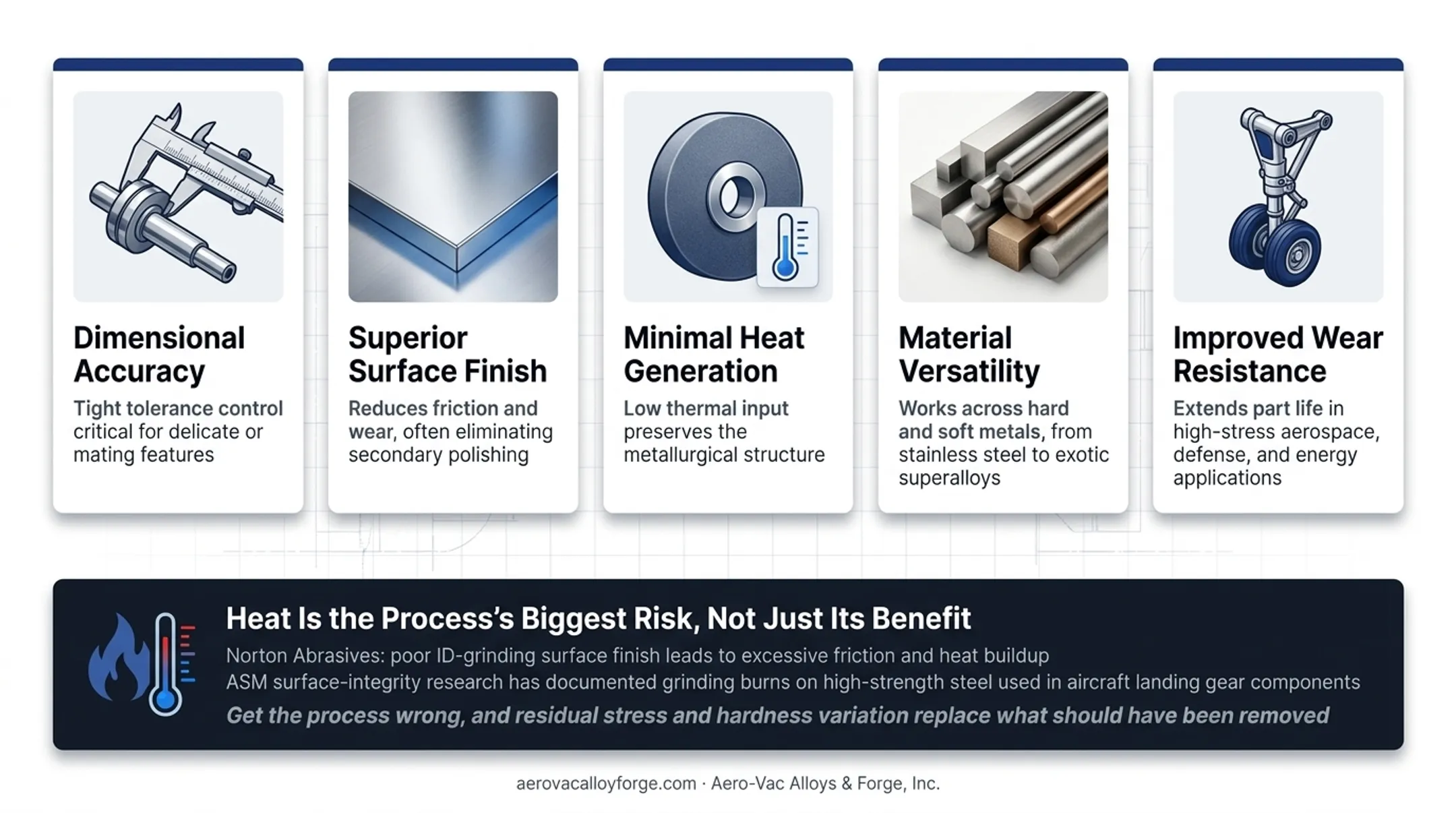

Benefits of Precision Grinding
The appeal of precision grinding comes down to five practical advantages:
- Dimensional accuracy: tight tolerance control that other processes simply can't hold, critical for delicate or mating features
- Superior surface finish: reduces friction and wear, often eliminating the need for secondary polishing
- Minimal heat generation: when done correctly, low thermal input preserves the metallurgical structure of the alloy
- Material versatility: works across hard and soft metals, from stainless steel to exotic superalloys
- Improved wear resistance: extends part life in high-stress aerospace, defense, and energy applications That said, heat is the process's biggest risk, not just its benefit. Norton Abrasives points out that poor ID-grinding surface finish leads to excessive friction and heat buildup. ASM's surface-integrity research has documented grinding burns on high-strength steel used in aircraft landing gear components. Get the process wrong, and you introduce residual stress and hardness variation instead of removing it.
Types of Precision Grinding Processes
Different part geometries call for different grinding setups. Here's how the main types break down.
Surface Grinding
Surface grinding flattens and finishes planar surfaces: plates, dies, and flat mechanical components. Multi-position automatic surface grinders can now handle several grinding locations in a single automated cycle, cutting down on repositioning and setup time.
Cylindrical and Centerless Grinding
Both processes handle round parts, but the workholding differs:
- Cylindrical grinding rotates the workpiece between centers while the wheel spins—common for spindle shafts, valves, actuators, and turbine vanes
- Centerless grinding feeds the part between a grinding wheel and regulating wheel on a workrest blade—ideal for high-volume bearing rings and rods that need consistent OD and roundness
Internal Grinding
Internal grinding finishes bores, radii, and internal diameters. It is essential for bearings, bushings, gears, and hydraulic components where internal tolerance matters as much as the external one—from spindle housings to rotor shafts.

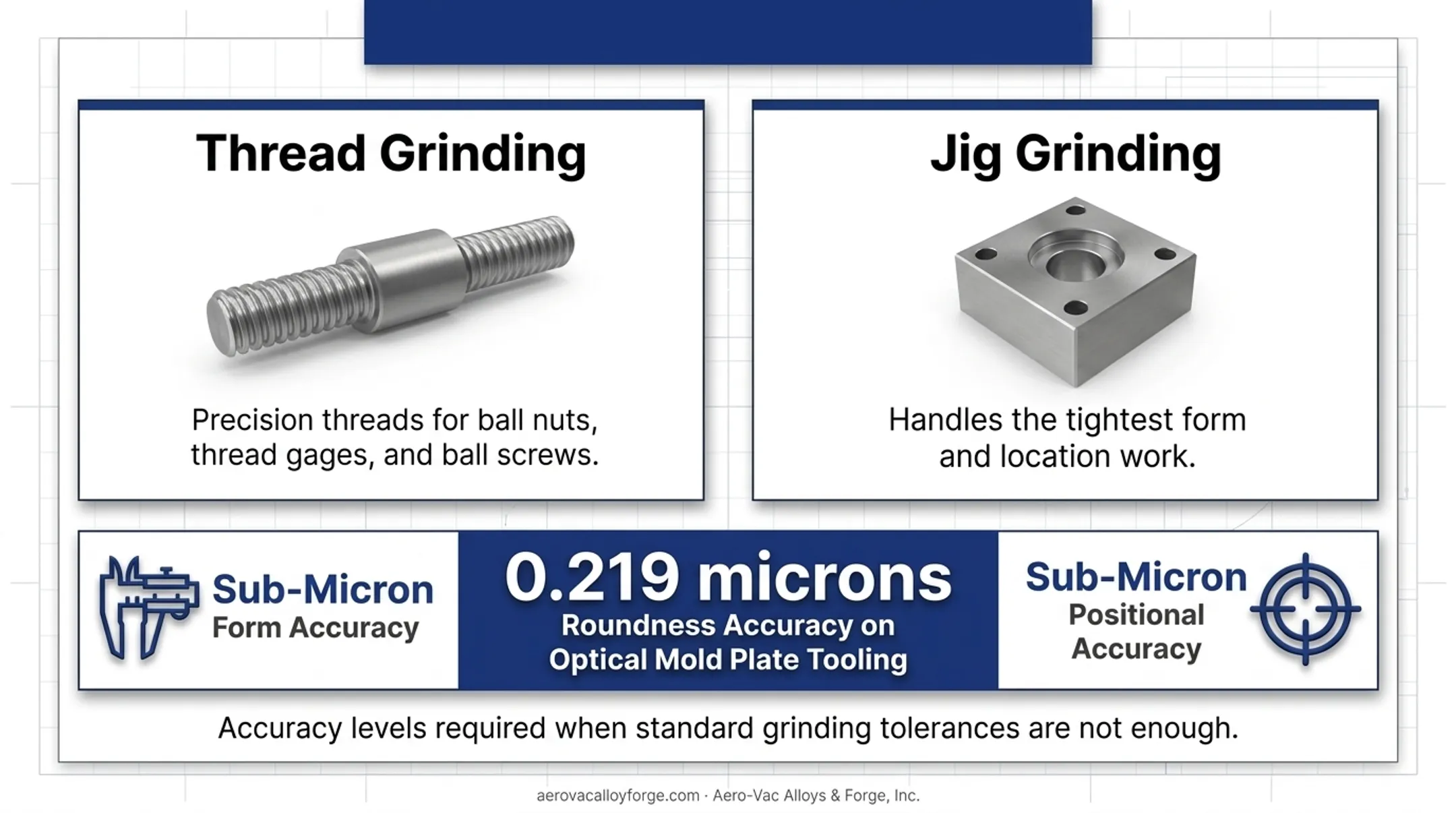

Thread and Jig Grinding
Thread grinding produces precision threads for ball nuts, thread gages, and ball screws. Jig grinding handles the tightest form and location work. Moore Tool reports sub-micron form and positional accuracy, with roundness as tight as 0.219 microns on optical mold plate tooling—accuracy levels required when standard grinding tolerances are not enough.

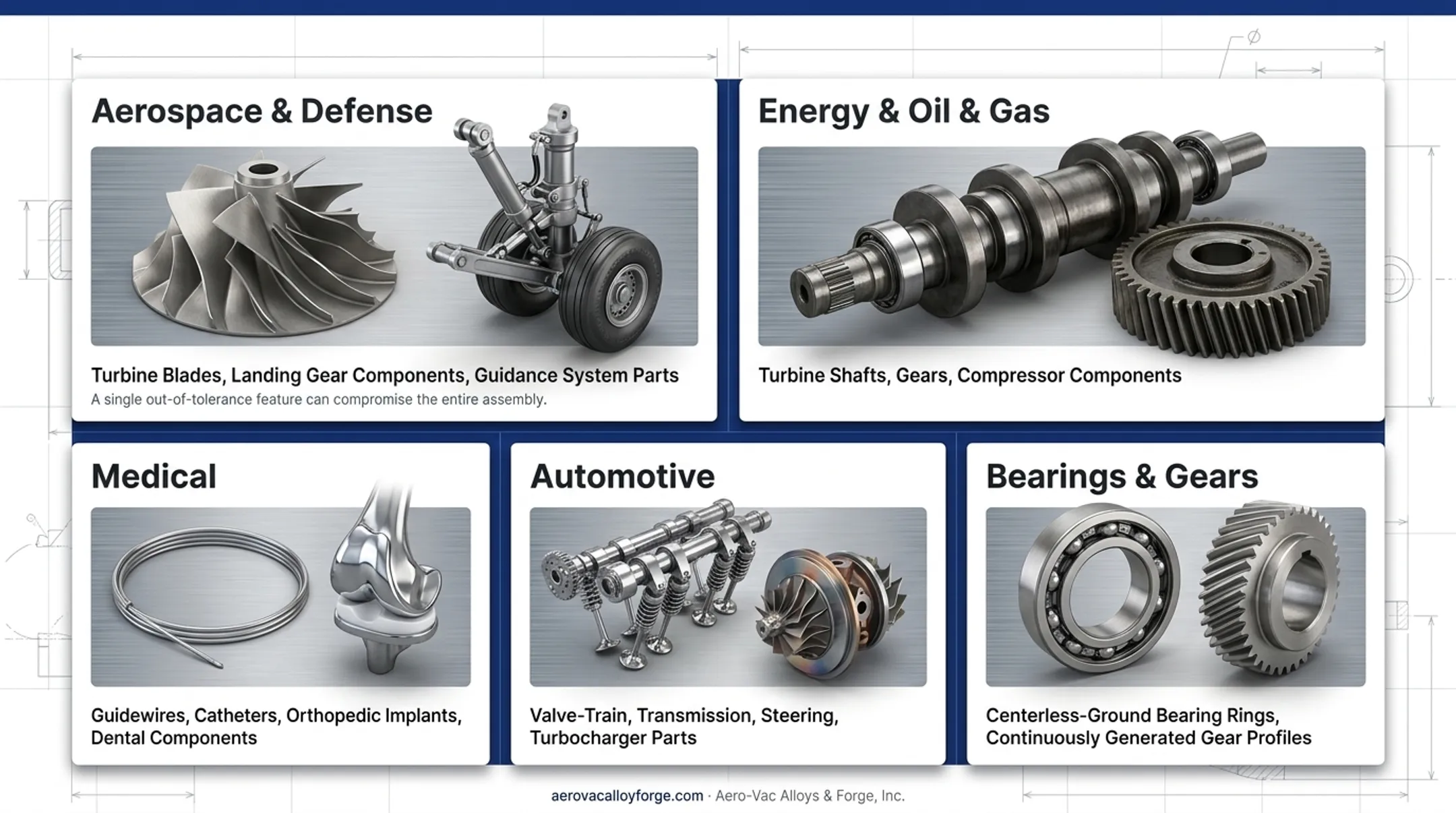

Industrial Applications of Precision Grinding
Aerospace and defense depend on precision grinding more than almost any other sector. Turbine blades, landing gear components, and guidance system parts all require tight dimensional reliability. A single out-of-tolerance feature can compromise the entire assembly.
Energy and oil & gas applications include turbine shafts, gears, and compressor components engineered for sustained high pressure and temperature. The same finishing standards apply to power-generation and aeroengine turbine blades.
The same grinding precision shows up across other industries:
- Medical — guidewires, catheters, orthopedic implants, and dental components
- Automotive — valve-train, transmission, steering, and turbocharger parts
- Bearings and gears — centerless-ground bearing rings and continuously generated gear profiles
Why Raw Material Quality Matters for Precision Grinding Results
Grinding wheel selection starts with the workpiece material itself—its hardness, grindability, and consistency. Norton Abrasives notes that hard-to-grind or inconsistent material can dull abrasive grains faster, forcing operators to compensate with softer wheel grades or risk burn.

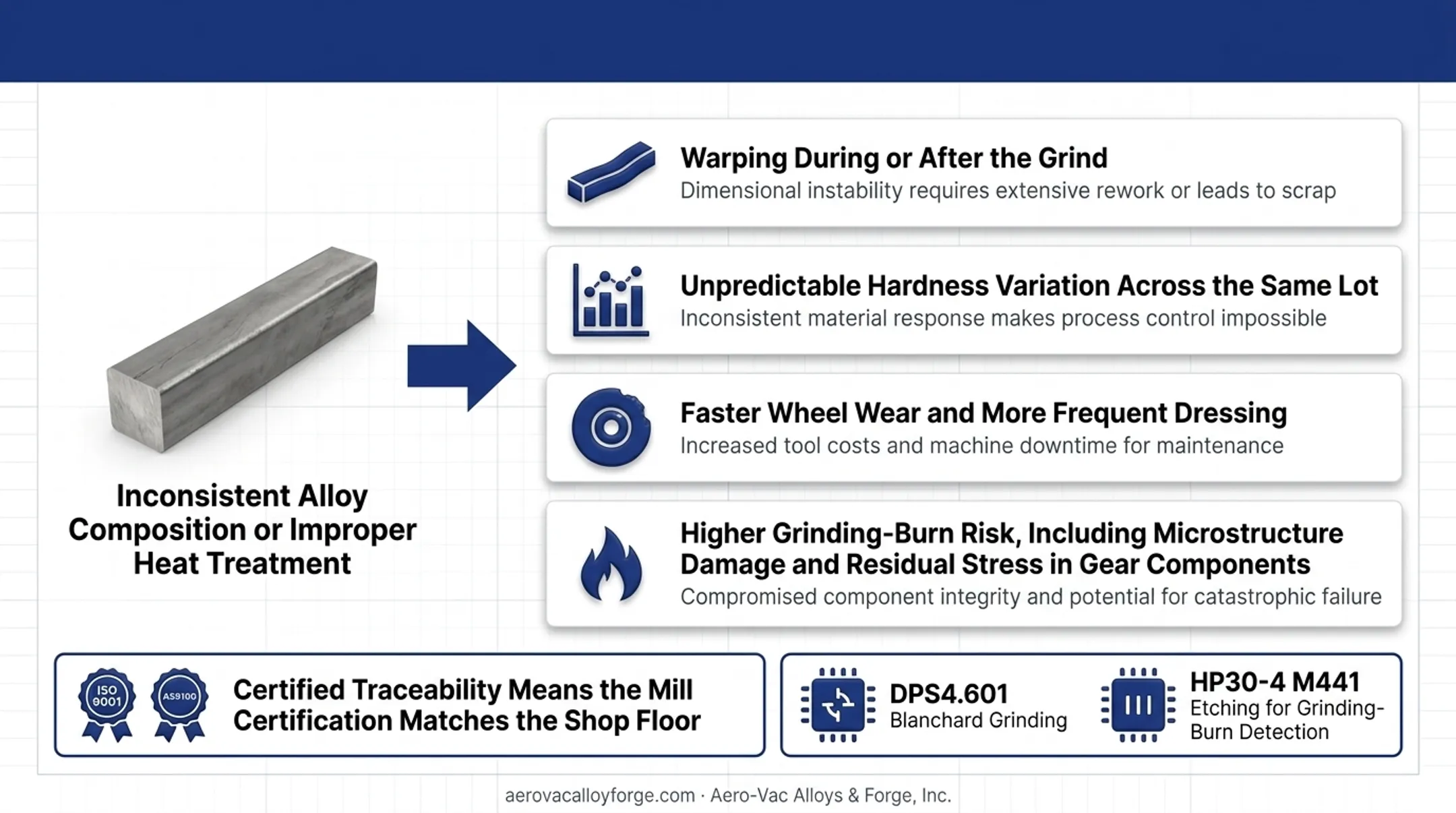

Inconsistent alloy composition or improper heat treatment shows up downstream as:
- Warping during or after the grind
- Unpredictable hardness variation across the same lot
- Faster wheel wear and more frequent dressing
- Higher grinding-burn risk, including microstructure damage and residual stress in gear components
This is where sourcing becomes a quality issue, not just a logistics one. Certified traceability through ISO 9001 and AS9100 doesn't guarantee a perfect grind, but it does mean the alloy composition and heat-treat condition on the mill certification actually match what shows up on the shop floor.
Aero-Vac Alloys & Forge supplies alloy and stainless steel bar, forgings, plate, sheet, and tube to aerospace, defense, and energy manufacturers whose parts go on to be precision ground.
As an ISO 9001 and AS9100-certified manufacturing distributor, Aero-Vac also offers DPS4.601 Blanchard grinding compliant with Boeing's material specification, plus HP30-4 M441 etching used to detect grinding burns.
For teams working against a schedule, Aero-Vac's just-in-time sourcing model—backed by a live technical team rather than an automated quote system—keeps custom cuts and odd sizes from turning into weeks of mill lead time.
Choosing the Right Grinding and Material Supply Partner
Not every supplier can support tight-tolerance, aerospace-grade grinding programs. Before you commit, confirm these capabilities:
- Certifications — ISO 9001 and AS9100 signal a quality system with built-in traceability, not just paperwork
- Technical responsiveness — Handles custom specs and odd sizes without forcing you onto standard stock
- Just-in-time delivery — Meets aerospace and defense schedules that leave little room for long lead times
- Sector experience — Knows Boeing, GE, or military documentation requirements that generalist distributors often miss
Aero-Vac Alloys & Forge has supplied material to Boeing, SpaceX, Lockheed, and General Electric. Inventory spans more than 150 specifications across alloy steel, stainless steel, titanium, and nickel alloys commonly ground for turbine, bearing, and gear work.
Frequently Asked Questions
What is precision grinding?
Precision grinding is an abrasive machining process that uses a rotating wheel to remove material and achieve extremely tight tolerances and fine surface finishes. It's typically the final finishing step after milling, turning, or forging.
What are the benefits of precision grinding?
It delivers tight dimensional accuracy, superior surface finish, and reduced surface wear, all while limiting heat-related distortion. This improves part longevity, especially in high-stress applications.
What are precision grinding machines?
These are CNC-controlled machines, including surface, cylindrical, centerless, and internal grinders, designed to hold tolerances that conventional machining can't achieve.
What tolerances can precision grinding achieve?
Precision grinding can hold tolerances as tight as ±0.0001 inches, with surface finishes down to about 0.1 microns (roughly 4 µin). Actual results depend on the machine, wheel, and material.
What materials are best suited for precision grinding?
Alloy steels, stainless steel, titanium, and nickel superalloys are the most common. These materials are widely used in aerospace, defense, and energy components.
How does material quality affect precision grinding results?
Inconsistent alloy composition or improper heat treatment causes hardness variation, warping, and faster wheel wear. Certified, traceable raw material reduces the risk of these defects before grinding even starts.
