Many quality teams struggle with a specific problem: how do you verify heat treatment or case hardness on a finished part without cutting it open? Skip the check, and you risk field failures. Cut a sample, and you scrap a component that might have been perfectly good.
The stakes are real. NIST reports that manufacturers investing in improved maintenance practices see 35% to 45% reductions in downtime and 65% to 95% reductions in defects, according to NIST's 2021 analysis of manufacturing maintenance spending. While that figure covers maintenance broadly rather than hardness testing specifically, it underscores why verification methods that avoid downtime matter so much.
This guide breaks down what NDHT is, how it works, and which method fits your application.
TL;DR
- Non-destructive hardness testing (NDHT) measures hardness on finished parts without cutting samples or leaving destructive marks
- Portable methods include Leeb rebound, UCI, portable Rockwell, and Shore/durometer
- Verify heat treatment on large forgings, in-service equipment, or finished components
- AS9100-certified suppliers such as Aero-Vac Alloys & Forge document hardness specs on alloy and forging steels for critical programs
What Is Non-Destructive Hardness Testing?
Non-destructive hardness testing (NDHT) measures a material's resistance to indentation or deformation while preserving the part's usability. No specimen removal. No permanent damage that compromises the component.
Common use cases include:
- Quality assurance on finished aerospace and defense components
- In-service inspection during maintenance cycles
- Heat-treatment verification after processing
- Screening large forgings or castings that can't fit a lab tester
Traditional Brinell or Vickers bench testing leaves a visible, measurable indentation on a sample cut from production stock. That works fine for coupon testing. It doesn't work when you need to verify the actual part going into service, not a stand-in piece from the same heat lot.

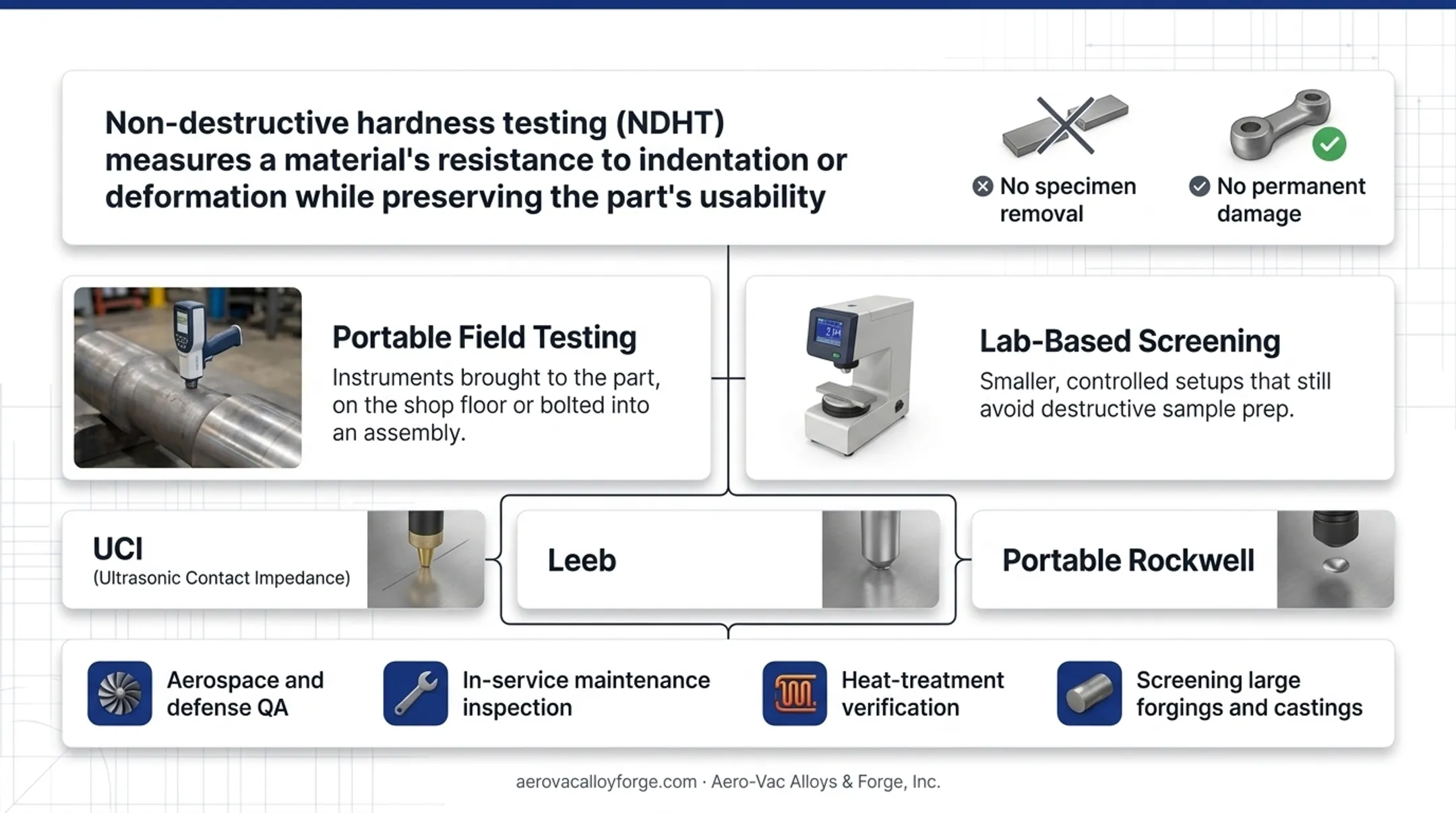

NDHT splits into two broad categories:
- Portable field testing: instruments brought to the part, whether it's sitting on a shop floor or bolted into an assembly
- Lab-based screening: smaller, controlled setups that still avoid destructive sample prep
Some methods (ultrasonic contact impedance/UCI, Leeb) leave essentially no visible mark. Others, like portable Rockwell, create a small indentation similar to lab testing, just applied directly to the finished part rather than a cut sample.
Why Non-Destructive Hardness Testing Is Critical in Manufacturing
On high-cost aerospace and defense components, destructive testing is expensive twice over: you lose the part, and you lose the time to make another one. Non-destructive hardness testing (NDHT) protects both.
Consider case-hardened gears. A 2008 Gear Solutions article on carburized components found typical effective case depths ranging from 0.030 to 0.035 inches for AISI 4820 sun gears up to 0.055 to 0.065 inches for AISI 9310 aerospace gears, with carburized cores landing between 30 and 40 HRC.
Getting those values wrong means premature pitting or root breakage in service.
Where NDHT delivers the most value:
- Verifies heat treatment without destroying the finished part
- Screens case-hardening depth on gears, bearings, and landing gear components
- Supports weld and heat-affected-zone hardness surveys for sulfide stress cracking risk in oil and gas service
- Enables in-line screening during high-volume production runs
- Cuts cost and lead time compared to destructive sample testing
- Generates documentation for mill test reports and inspection certificates
Caveat: a surface hardness reading doesn't automatically prove case depth. Case depth depends on surface condition, microstructure, and geometry as well as hardness. Treat NDHT as a screening tool, then confirm critical case-depth specs with a validated method suited to that purpose.
Weld and HAZ surveys face similar limits. NACE MR0175/ISO 15156 sets hardness limits for materials in sour, H2S-containing service. A Vickers hardness survey is a recognized method for welding procedure qualification under this standard, though exact acceptance values vary by material, product form, and governing edition.
How Non-Destructive Hardness Testing Works – Step by Step
This is the practical sequence used on a shop floor or in the field. Skipping steps here is where most bad readings come from.
Common mistakes to avoid:
- Skipping surface prep (scale, coatings, or rust throw off readings)
- Ignoring minimum mass or thickness rules for the chosen method
- Misapplying scale conversions without checking material-specific tables

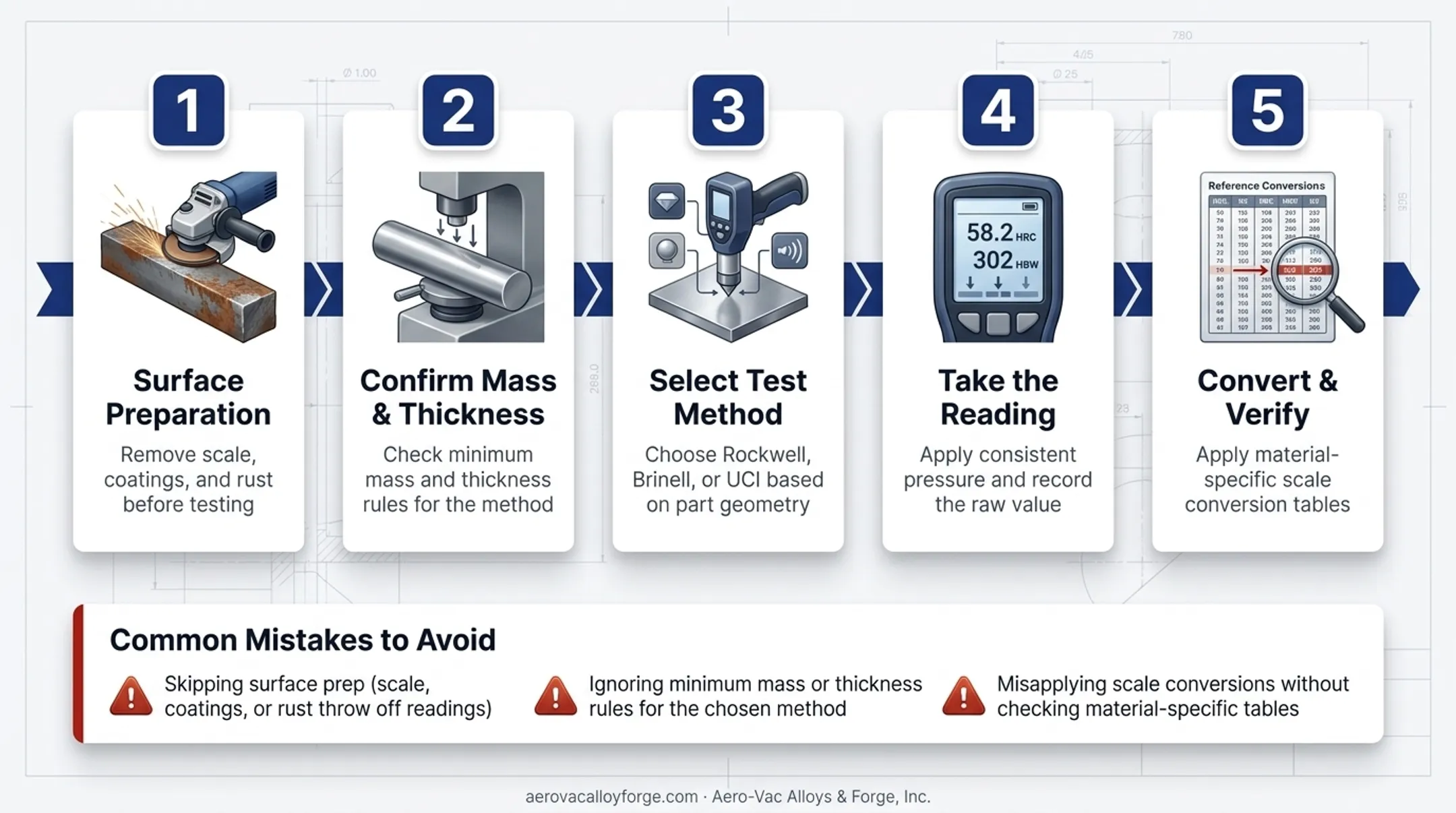

Step 1 – Select the Right Method and Instrument
Match the method to the part. A massive steel forging calls for Leeb. A thin, case-hardened gear tooth flank suits UCI better. Part size, thickness, and material all factor in.
Step 2 – Prepare the Surface
Clean the test area. Remove scale, paint, or coatings. Verify the surface roughness meets the method's requirements. A rough, oxidized surface will give you a bad reading regardless of instrument quality.
Step 3 – Take Calibrated Readings
Verify your instrument against certified reference blocks before testing. ASTM A956 and ASTM E18 both require this verification step for Leeb and Rockwell instruments respectively. Skip it, and your readings mean nothing.
Step 4 – Apply Correct Conversion
Use ASTM E140 or ISO 18265 tables to convert readings to Brinell, Rockwell, or Vickers equivalents. These conversions are approximate and material-specific. Alloy, grain structure, and heat treatment all affect the result.
Use conversions only when direct testing under specified conditions isn't possible, and always record the original measured scale alongside any converted value.
Step 5 – Document and Certify Results
Record readings against mill certs or acceptance criteria. This creates the traceability chain auditors and customers expect on regulated components.
Common Methods Compared
| Method | Standard | Best For | Key Limitation |
|---|---|---|---|
| Leeb Rebound | ASTM A956, ISO 16859 | Large forgings, castings, pressure vessels | Surface-only; sensitive to part support and geometry |
| UCI | ASTM A1038 | Thin sections, case-hardened layers, hard-to-reach spots like gear roots | Depends on material's elastic modulus; needs correlation |
| Portable Rockwell | ASTM E18, E110 | Near-lab accuracy where a small indentation is acceptable | Alignment and support affect accuracy versus fixed machines |
| Shore/Durometer | ASTM D2240 | Elastomers, gaskets, seals — not metals | Not applicable to metal hardness specs at all |

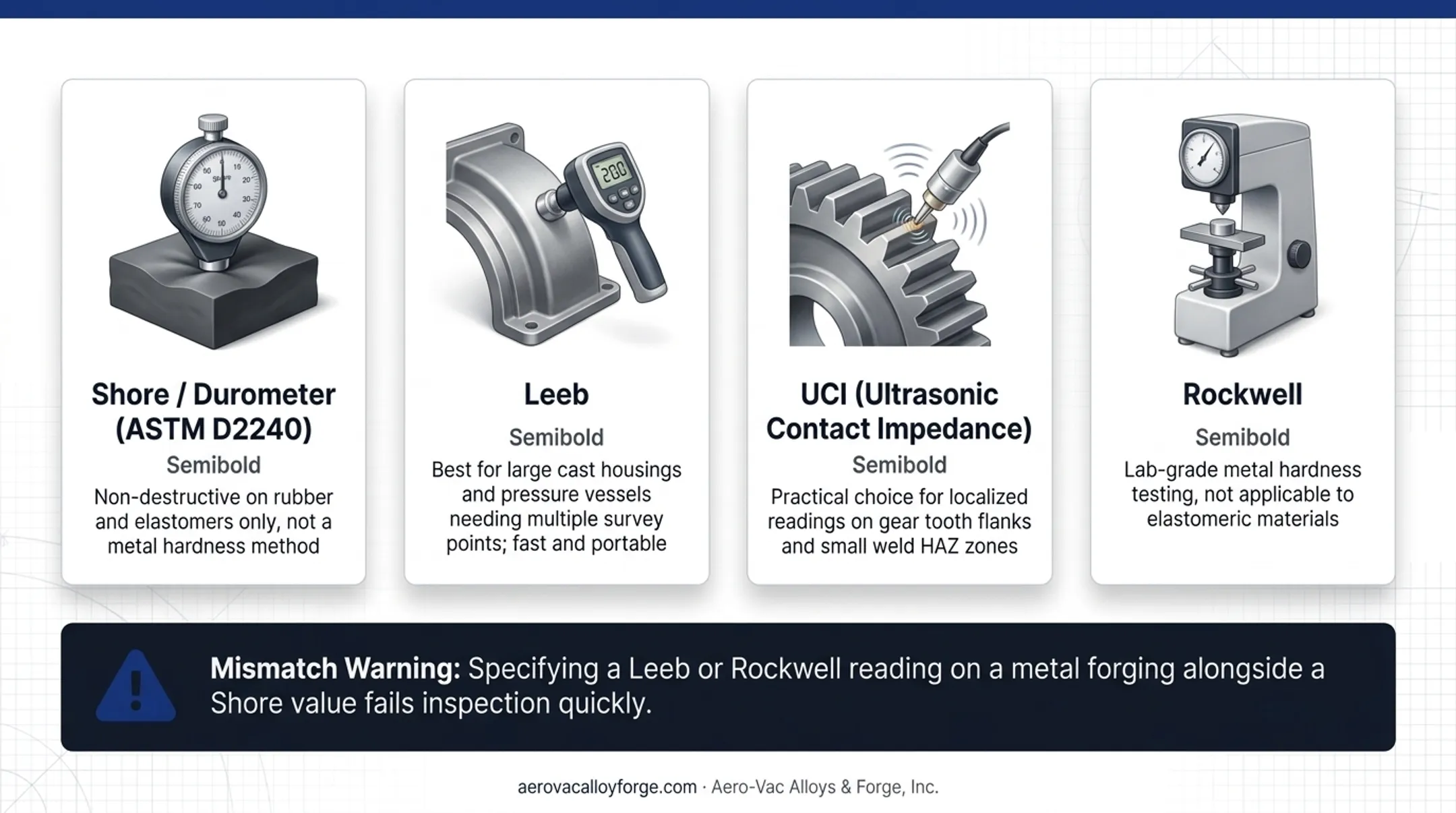

Shore/durometer is genuinely non-destructive on soft materials, but it is not metal hardness testing. ASTM D2240 covers rubber and elastomeric materials only. Specifying a Leeb or Rockwell reading on a metal forging with a Shore value is a mismatch that fails inspection quickly.
For localized readings on a gear tooth flank or small weld HAZ zone, UCI is usually the practical choice. For a large cast housing or pressure vessel that needs multiple survey points across a big surface, Leeb wins on speed and portability.
How Aero-Vac Alloys & Forge Supports Your Hardness-Critical Projects
Hardness testing only matters if the base material meets spec. That starts with sourcing.

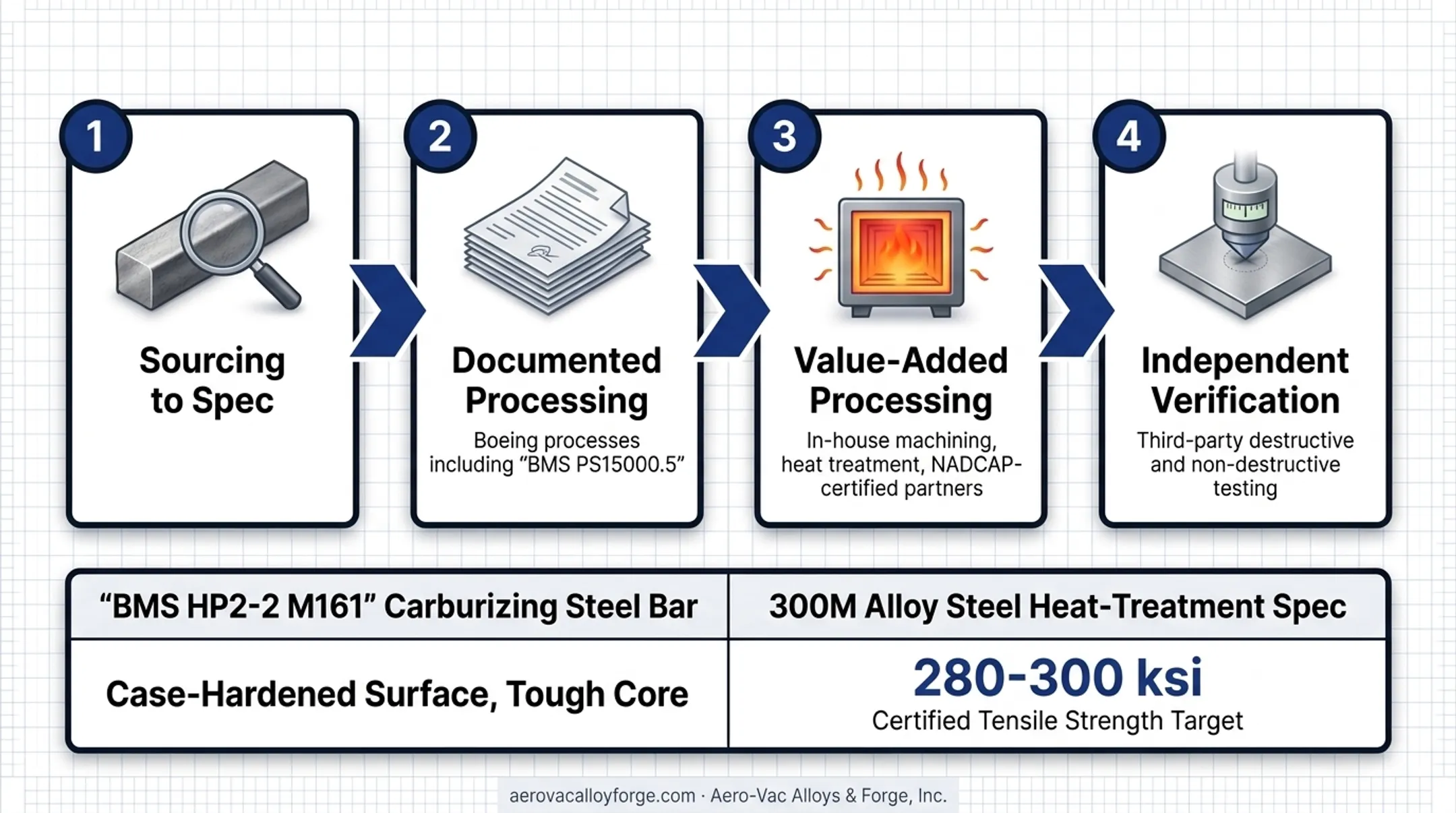

Aero-Vac Alloys & Forge is an ISO 9001 and AS9100-certified manufacturing distributor supplying alloy and forging steels to aerospace, defense, and energy manufacturers. We supply products processed to documented specifications, including Boeing processes such as BMS PS15000.5, which controls high-tensile steel to strength levels below 200 ksi—targets your hardness testing then verifies on the floor.
What this means for your program:
- Fast procurement to exact specifications through our Rapid Response RFQ process
- Value-added processing: in-house machining and heat treatment, plus NADCAP-certified partner heat treaters when volume or turnaround demands it
- Independent third-party testing—destructive and non-destructive—to confirm conformance
- Knowledgeable staff who understand hardness requirements across gears, bearings, and forging steel applications
Products like BMS HP2-2 M161 carburizing steel bar are processed specifically for surface hardening, supporting aerospace parts that need case-hardened performance without sacrificing core toughness.
We serve major manufacturers—including Boeing, SpaceX, Lockheed, and GE—who rely on properly sourced and processed alloys for hardness-critical components.
Boeing's certified heat-treatment specs for 300M alloy steel, targeting 280–300 ksi tensile strength, show the control these programs demand. We support that level of documented process directly.
Conclusion
NDHT gives quality teams reliable hardness data without sacrificing the part or the schedule. Whether you're screening a landing gear forging, surveying a weld HAZ, or verifying case hardness on a gear set, choosing the right method matters as much as running the test correctly.
Method selection, instrument calibration, and scale conversion aren't one-time decisions. Review them regularly as standards evolve and part designs change. What worked for last year's gear spec might not hold up against a revised NACE limit or a new customer requirement.
