"Low tolerance" machining, often used interchangeably with tight or close tolerance work, means producing parts with minimal allowable deviation from the specified dimension. This guide breaks down what that actually means, how tolerances get classified, which industries demand the tightest bands, and why material quality determines whether you can hit those numbers consistently.
Key Takeaways
- Low tolerance machining keeps dimensional variation within ±0.001" or tighter
- Match tolerance bands to industry, material, and function; not every feature needs the tightest spec
- Material quality and consistency are essential to holding tight tolerances over a full production run
- Sourcing from a certified, quality-controlled supplier reduces downstream machining risk
What Is Low Tolerance Machining?
Low tolerance machining refers to manufacturing parts to the narrowest acceptable dimensional variance, as opposed to standard or general tolerance work where more deviation is acceptable. The terminology trips people up: "low tolerance" doesn't mean loose or relaxed. It means low allowable deviation—tight, demanding precision.
NIST defines tolerance as the amount a manufactured dimension may vary from the design dimension. That covers size, form, surface finish, and relative location: not one number, but several characteristics, each with its own tolerance band.

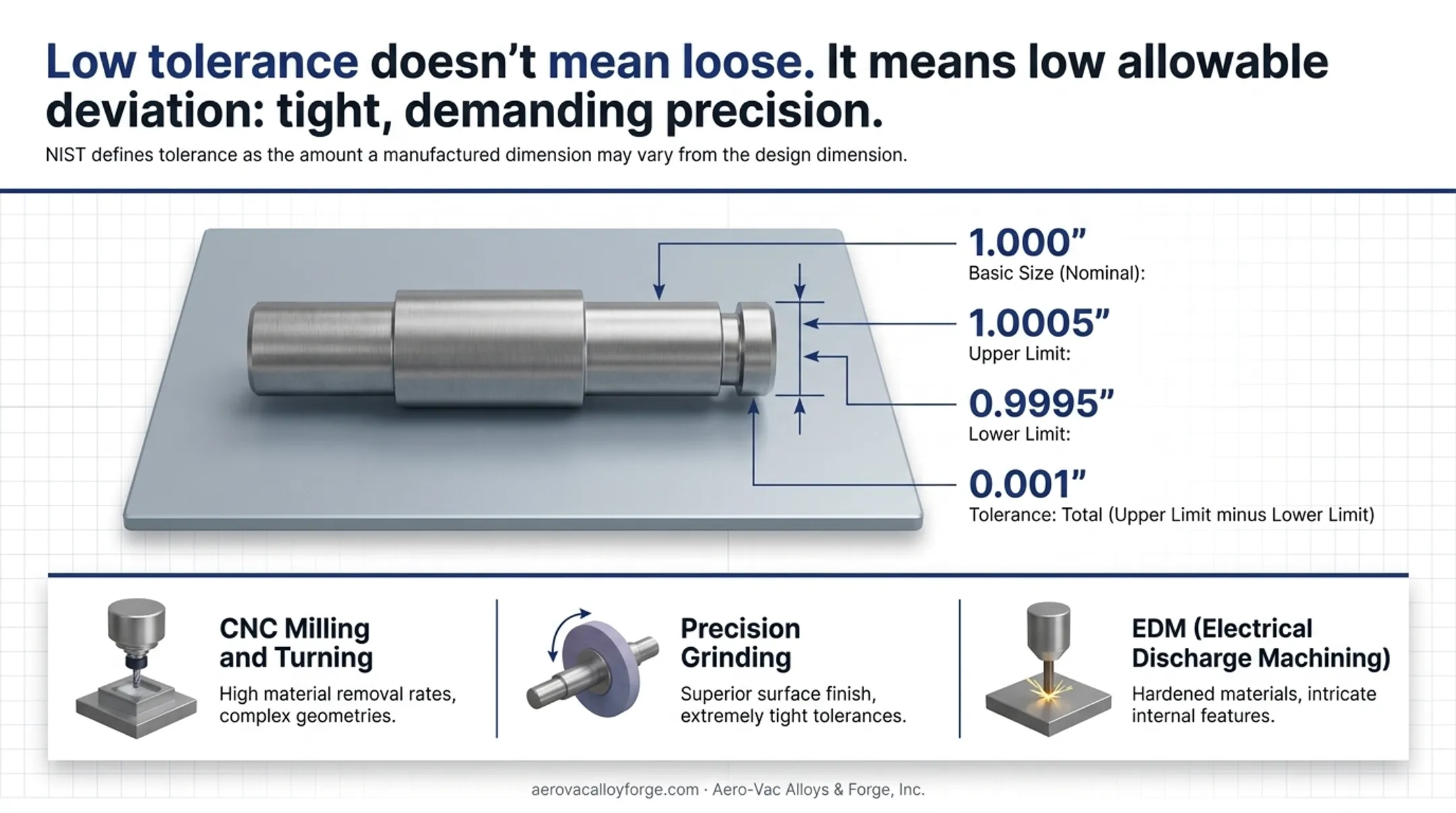

A quick numeric example:
- Basic size (nominal): 1.000"
- Upper limit: 1.0005"
- Lower limit: 0.9995"
- Tolerance: 0.001" total (upper limit minus lower limit)
The actual size of any given part must fall between those limits to pass inspection. Common processes capable of holding these bands include CNC milling and turning, precision grinding, and EDM (electrical discharge machining)—each suited to different geometries and materials.
Is There Such a Thing as Zero Tolerance Machining?
No. True zero tolerance is physically impossible. Tooling wear, thermal expansion, and material behavior all introduce measurable variation, however small. NIST's own guidance on measurement uncertainty confirms that no measured result can be considered exact—there's always a range within which the true value falls.
Even ultra-precision processes carry finite deviation. NASA's White Sands facility machines parts for space-flight applications, including the International Space Station, and commonly holds ±0.0002 inches on CNC work. That is remarkably tight, but it is not zero. "Zero tolerance" is shorthand for extremely tight tolerance, not a literal engineering spec.

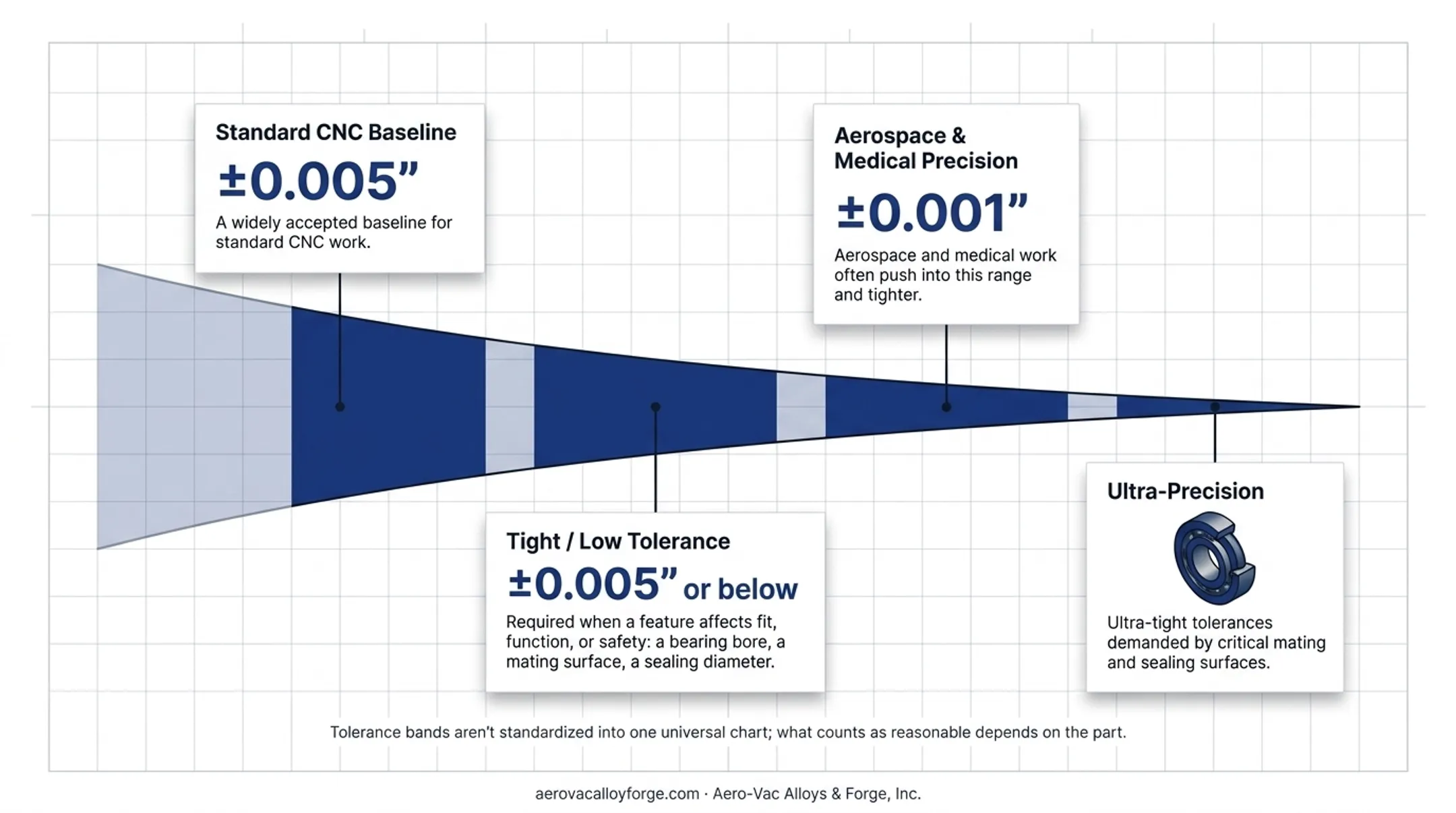

Tolerance Classifications: From General to Ultra-Precision
Tolerance bands aren't standardized into one universal chart, but shops generally work within these rough categories:
| Classification | Typical Range | Common Use |
|---|---|---|
| General purpose | ±0.005" – ±0.020" | Brackets, non-critical fittings |
| Precision | ±0.002" – ±0.005" | Structural aerospace components |
| High precision | ±0.0005" – ±0.002" | Turbine parts, medical implants |
| Ultra-precision | Below ±0.0005" | Optical components, space-flight hardware |
What counts as reasonable depends on the part. For standard CNC work, ±0.005" is a widely accepted baseline. Tighter bands only become necessary when a feature affects fit, function, or safety: a bearing bore, a mating surface, or a sealing diameter.
In practice, "tight" or "low" tolerance usually means ±0.005" or below. Aerospace and medical work often push into the ±0.001" range and tighter.
Standards and the Cost Reality
Two frameworks govern how tolerances get communicated:
- ISO 2768 — Simplifies drawing indications for general tolerances on machined and formed parts, using four broad tolerance classes
- ASME Y14.5 — The GD&T (geometric dimensioning and tolerancing) standard, using datums, position, profile, and modifiers to communicate design intent precisely
Tightening a tolerance does not cost proportionally more. It costs exponentially more. Drivers stack quickly:
- Slower cycle times
- Specialized tooling
- Additional setups
- More rigorous inspection
NIST research confirms that measurement accuracy requirements rise sharply as bands tighten. Identifying which features actually need tight control, rather than blanket-tightening an entire part, is one of the most effective ways to manage that cost.

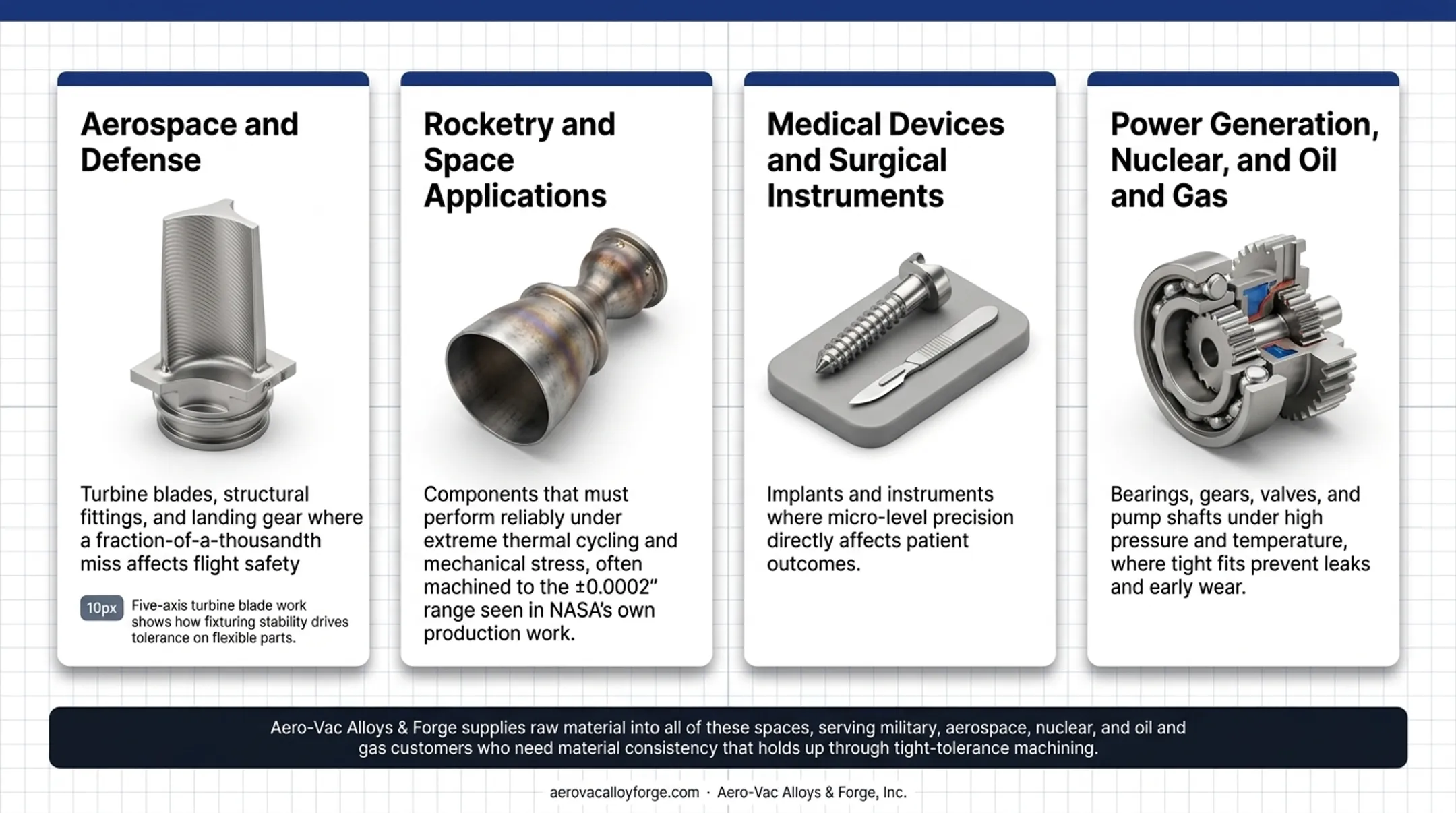

Industries and Applications That Demand Low Tolerance Machining
Some sectors simply can't tolerate loose dimensional control. In these environments, a dimensional miss is a safety event, not a scrap ticket.
- Aerospace and defense — Turbine blades, structural fittings, and landing gear where a fraction-of-a-thousandth miss affects flight safety. Five-axis turbine blade work shows how fixturing stability drives tolerance on flexible parts.
- Rocketry and space applications — Components that must perform reliably under extreme thermal cycling and mechanical stress, often machined to the ±0.0002" range seen in NASA's own production work.
- Medical devices and surgical instruments — Implants and instruments where micro-level precision directly affects patient outcomes.
- Power generation, nuclear, and oil & gas — Bearings, gears, valves, and pump shafts under high pressure and temperature, where tight fits prevent leaks and early wear.
Aero-Vac Alloys & Forge supplies raw material into all of these spaces, serving military, aerospace, nuclear, and oil and gas customers who need material consistency that holds up through tight-tolerance machining.
Why Material Selection Is the Foundation of Low Tolerance Success
Here's something a lot of tolerance discussions skip over: you can have the best CNC machine and the most skilled machinist on the floor, and still miss tolerance if the raw material fights you.

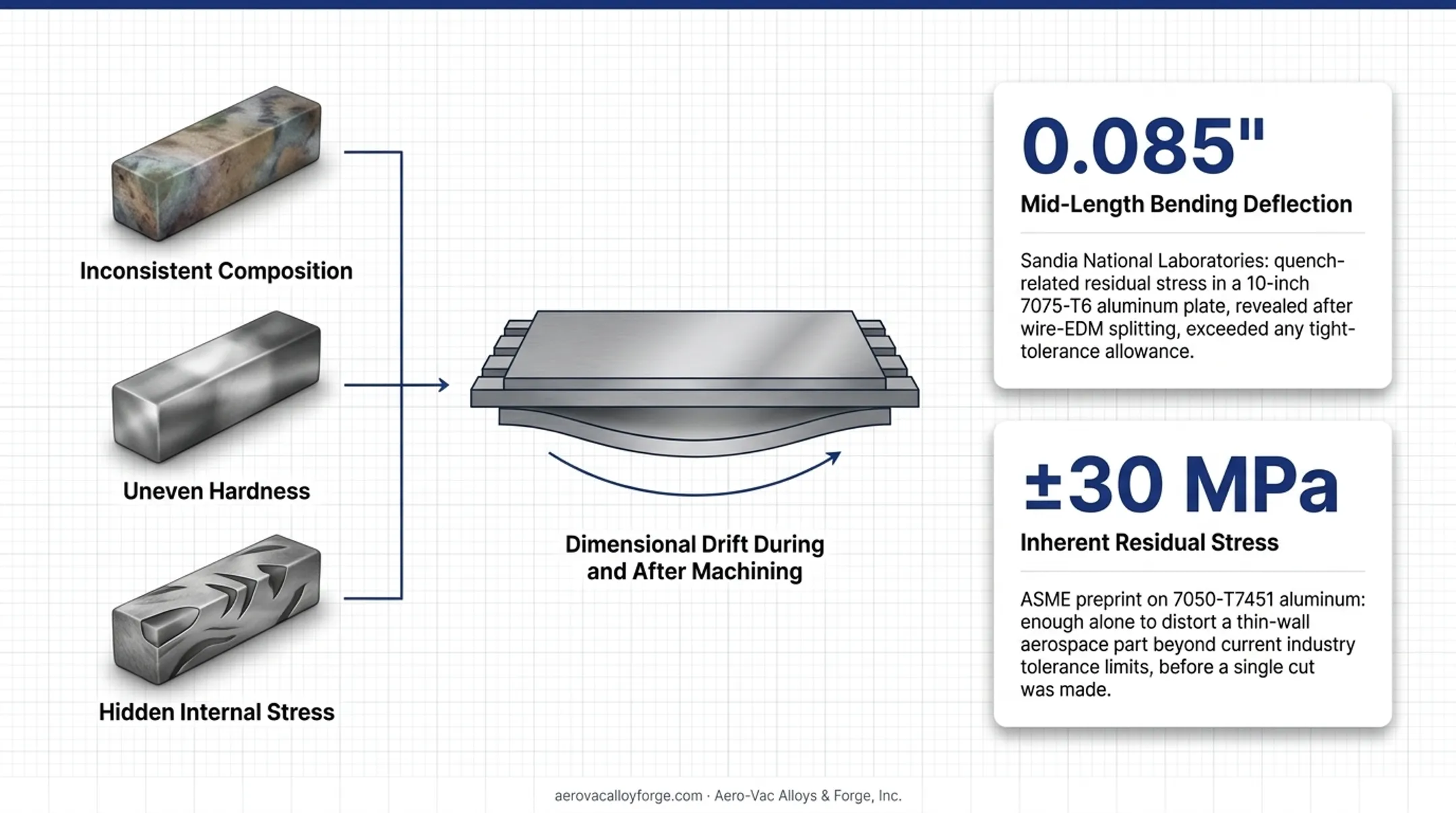

Inconsistent composition, uneven hardness, or hidden internal stress causes dimensional drift during machining and after the part leaves the machine. A part can measure perfectly at the mill, then warp overnight as internal stresses release.
Research backs this up in stark terms. A Sandia National Laboratories study on 7075-T6 aluminum found that quench-related residual stress caused 0.085 inches of mid-length bending deflection when a 10-inch plate was wire-EDM split, well beyond any tight-tolerance allowance.
A more recent ASME preprint on 7050-T7451 aluminum found that inherent residual stress of roughly ±30 MPa was enough by itself to distort a thin-wall aerospace part beyond current industry tolerance limits, even before a single cut was made.
What This Means for Sourcing
- Mill traceability: Documented, consistent metallurgical properties for every bar, plate, or forging
- Stress relief: Pre-machining relief on high-stress alloys such as 7075 and 7050 aluminum to limit post-cut warp
- Defect control: Screening for internal flaws that can undo an otherwise solid CNC program
Those requirements point to an AS9100 and ISO 9001 certified distributor. Aero-Vac Alloys & Forge supplies alloy steels, stainless, nickel alloys, aluminum, and titanium to aerospace and military specs, including AMS 5643, AMS 5737, and 4340 steel, with independent third-party conformance testing before shipment.
That testing covers ASTM E618 machining-performance evaluation, AMS 2303 magnetic-particle inspection for aircraft-quality steel cleanliness, and MIL-STD-2154 ultrasonic testing for forged material verification.
For aerospace, defense, or medical-grade work, upstream verification cuts the risk of parts drifting out of spec for reasons unrelated to the machining itself. Just-in-time delivery of verified, ready-to-machine stock also helps shops avoid mid-job material surprises and the schedule delays that follow.

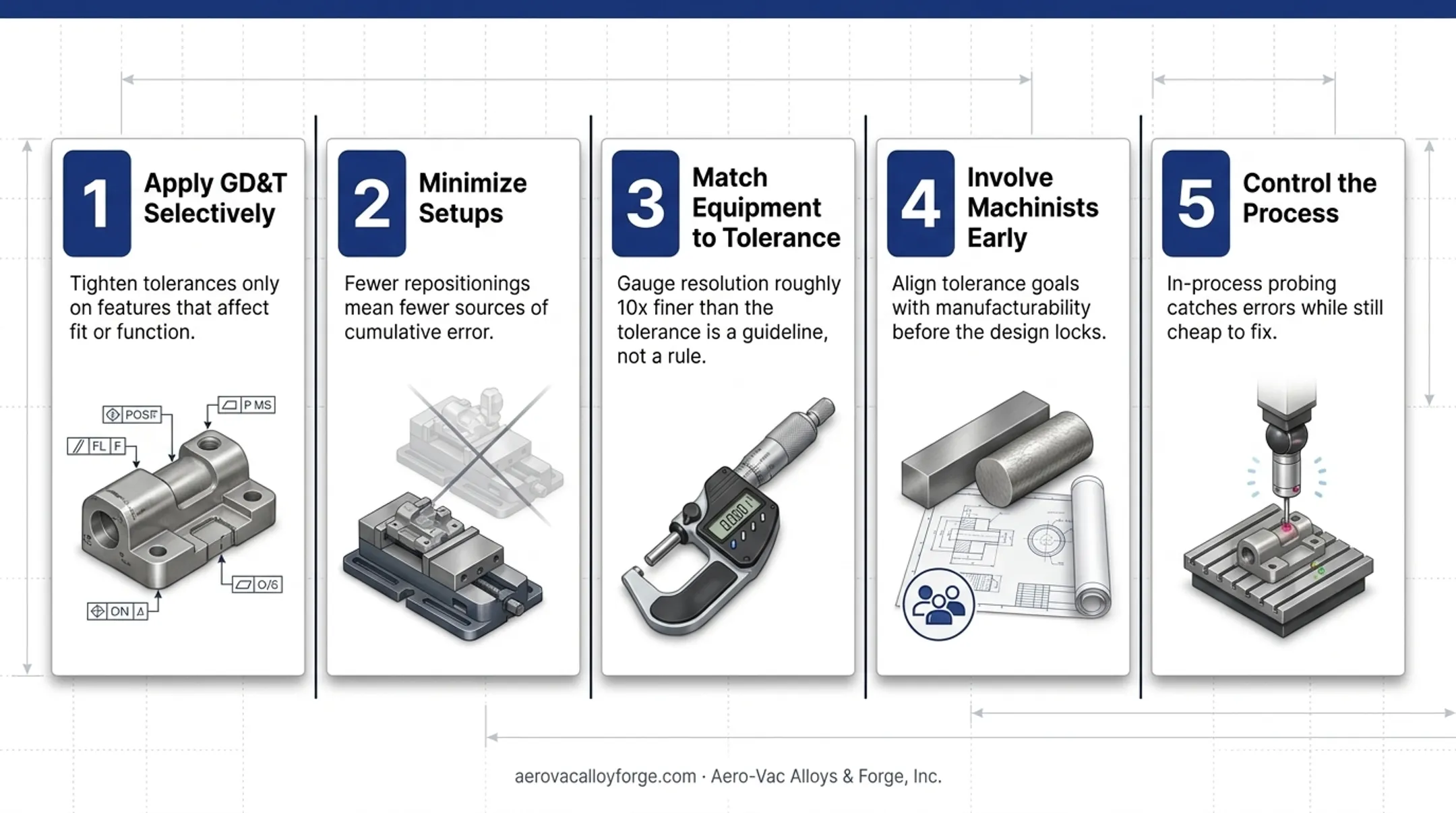

Best Practices to Achieve and Maintain Tight Tolerances
Holding tight tolerances consistently, not just on a single lucky part, comes down to a handful of disciplined practices:
- Apply GD&T selectively. Tighten tolerances only on features that actually affect fit or function. Blanket-tightening an entire part drives up cost without adding value.
- Minimize setups. Every repositioning introduces a new source of cumulative error. Fewer setups mean fewer opportunities for drift.
- Match your measurement equipment to the tolerance. A common rule of thumb calls for gauge resolution roughly 10 times finer than the specified tolerance. Treat that as a planning guideline, not a hard rule, and confirm actual gauge capability and calibration.
- Bring machinists and material suppliers in early. Aligning tolerance goals with real-world manufacturability before the design is locked saves rework later.
- Control the process, not just the final inspection. Catching a defect at final inspection means the cost is already sunk. Process control, including in-process probing, catches errors while they are still cheap to fix.
Frequently Asked Questions
Is there such a thing as zero tolerance machining?
No. Zero tolerance isn't physically achievable because tooling wear, thermal expansion, and material behavior always introduce some measurable deviation. Even ultra-precision aerospace work carries finite tolerance, just an extremely tight one.
What is a reasonable tolerance for machining?
±0.005" is a common baseline for general CNC work. What's "reasonable" really depends on the part's function: a decorative bracket and a bearing bore have very different requirements.
What is considered a tight tolerance in machining?
±0.001" to ±0.005" is considered tight. Aerospace and medical applications often push tighter still, sometimes into the ±0.0002" range for critical components.
How does material quality affect tolerance achievement?
Inconsistent alloy composition or hidden internal stress can cause parts to shift dimensionally during or after machining. Certified, traceable material with verified metallurgical properties reduces that risk significantly.
What certifications should a metal supplier have for tight-tolerance aerospace or defense work?
Look for ISO 9001 and AS9100 certification. These indicate documented quality management practices suited to the traceability and consistency tight-tolerance industries require.
How much more does tight tolerance machining cost compared to standard tolerance?
Costs increase sharply, not linearly, as tolerances tighten. Slower cycle times, specialized tooling, and more rigorous inspection all add up—so reserve tight tolerances for features that truly need them.
