Standard alloy steels cause premature tool wear, generate long tangled chips that jam automated equipment, and force slower cycle times just to protect the tooling. On a CNC line running thousands of parts, that adds up fast in both cost and downtime.
Free-cutting steels solve this by design. This article covers the composition science, the major grades, the ASTM specifications that govern them, and how to source the right one for tight-tolerance aerospace and defense work.
Key Takeaways
- Added sulfur, lead, phosphorus, or bismuth sharply raises machinability versus standard carbon and alloy steels
- Common grades include 12L14, 1215, 1144, and stainless variants like 303, 416, 430F
- ASTM A29/A108 and SAE/AISI composition ranges keep grade selection consistent across mills and specs
- Grade selection balances machinability against strength, corrosion resistance, and weldability
- AS9100-certified supply with heat-lot traceability meets aerospace, defense, and other regulated buy-offs
What Are Free-Cutting Steels?

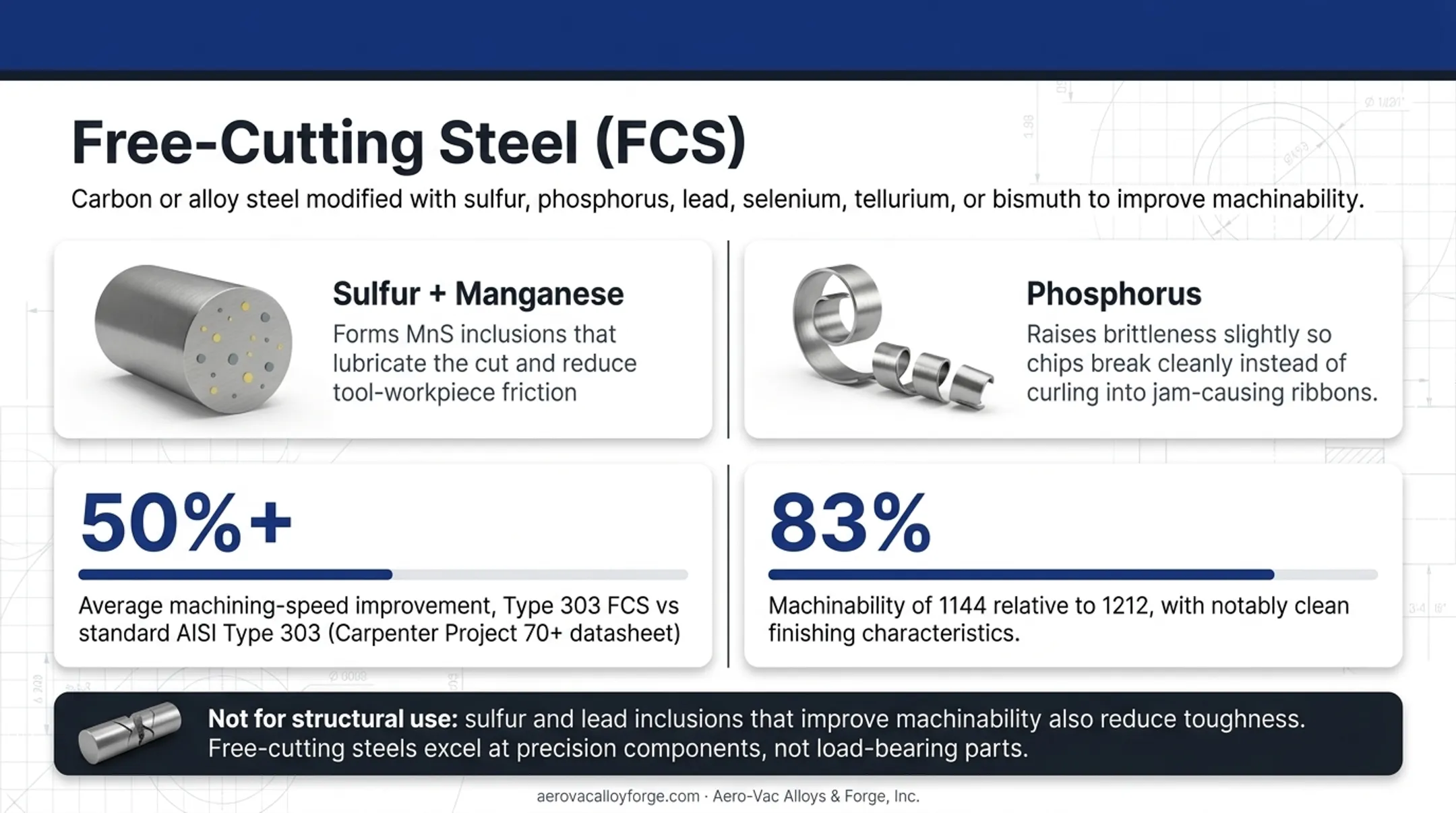

Free-cutting steel (FCS) is carbon or alloy steel modified with elements like sulfur, phosphorus, lead, selenium, tellurium, or bismuth specifically to improve machinability. Two mechanisms drive most of that gain:
- Sulfur reacts with manganese to form MnS inclusions that lubricate the cut and cut friction between tool and workpiece
- Phosphorus raises brittleness slightly so chips break cleanly instead of curling into long ribbons that jam automatic equipment
The performance difference is measurable. Carpenter's Project 70+ Type 303 stainless datasheet reports average machining-speed improvements of 50% and higher compared to standard AISI Type 303. Tool wear drops as well. Separately, 1144 is rated at 83% machinability relative to 1212, with notably clean finishing characteristics.
One critical caveat: free-cutting steels are not structural materials. The same additions that improve machinability — particularly sulfur and lead inclusions — reduce toughness compared to standard alloy steels. These grades excel at precision components, not load-bearing parts.
Grades of Free-Cutting Steel
Free-cutting grades fall into two main families, each suited to different applications.
Leaded and Non-Leaded Carbon Grades
- 12L14 — Leaded, with 0.15–0.35% lead plus sulfur and phosphorus. Rated at 160% machinability, making it a top choice for high-speed screw-machine work.
- 1215 — Non-leaded resulfurized grade, used for automatic screw machines producing pins, couplings, fittings, bushings, and studs.
- 1144 — Medium-carbon resulfurized grade offering higher strength alongside good machinability. Common in nuts, bolts, gears, shafts, and piston rods.
- 11SMnPb30 — European leaded free-cutting steel, cross-referenced to AISI 12L13/12L14, used for turned parts at high cutting speeds.

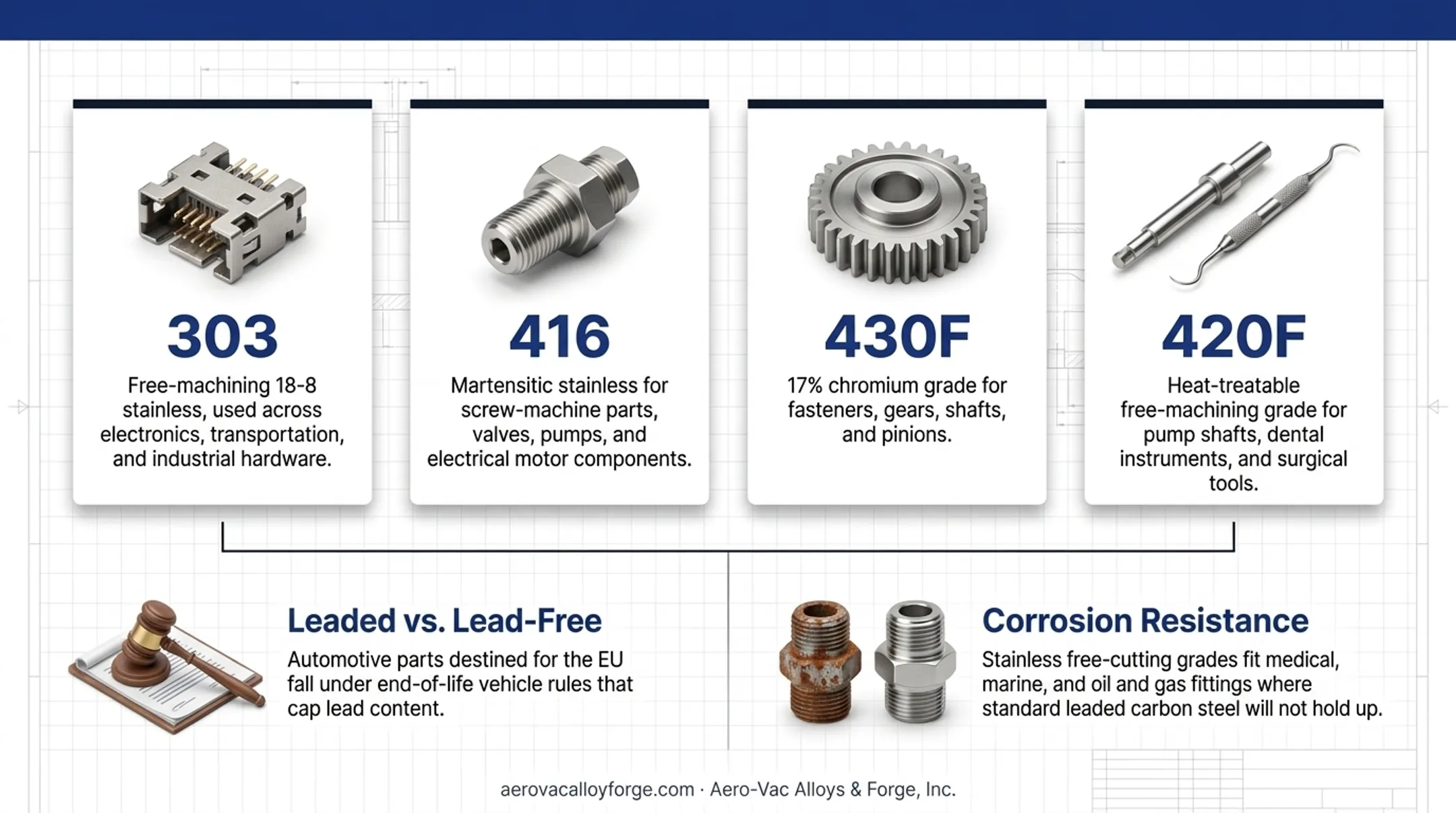

Stainless Free-Machining Grades
- 303 — Free-machining 18-8 stainless, used across electronics, transportation, and industrial hardware.
- 416 — Martensitic stainless for screw-machine parts, valves, pumps, and electrical motor components.
- 430F — 17% chromium grade for fasteners, gears, shafts, and pinions.
- 420F — Heat-treatable free-machining grade for pump shafts, dental instruments, and surgical tools.
| Grade | Key Additive | Typical Use | Machinability Notes |
|---|---|---|---|
| 12L14 | Lead + sulfur | Screw-machine parts | 160% rating |
| 1215 | Sulfur (non-leaded) | Fittings, bushings, studs | High-speed automatic screw work |
| 1144 | Sulfur | Nuts, bolts, gears | 83% relative to 1212, higher strength |
| 303 | Sulfur | Electronic/industrial hardware | 70%+ machinability vs. 304 |
| 416 | Sulfur | Valves, pumps, motors | Good corrosion resistance |
| 430F | Sulfur | Fasteners, gears, shafts | Free-machining ferritic grade |
| 420F | Sulfur | Pump shafts, surgical tools | Heat-treatable free-machining |
Choosing leaded vs. lead-free often comes down to end-market regulation. Automotive parts destined for the EU, for instance, fall under end-of-life vehicle rules that cap lead content.
Stainless free-cutting grades address a different need: machinability plus corrosion resistance. They fit medical, marine, and oil and gas fittings where standard leaded carbon steel will not hold up.

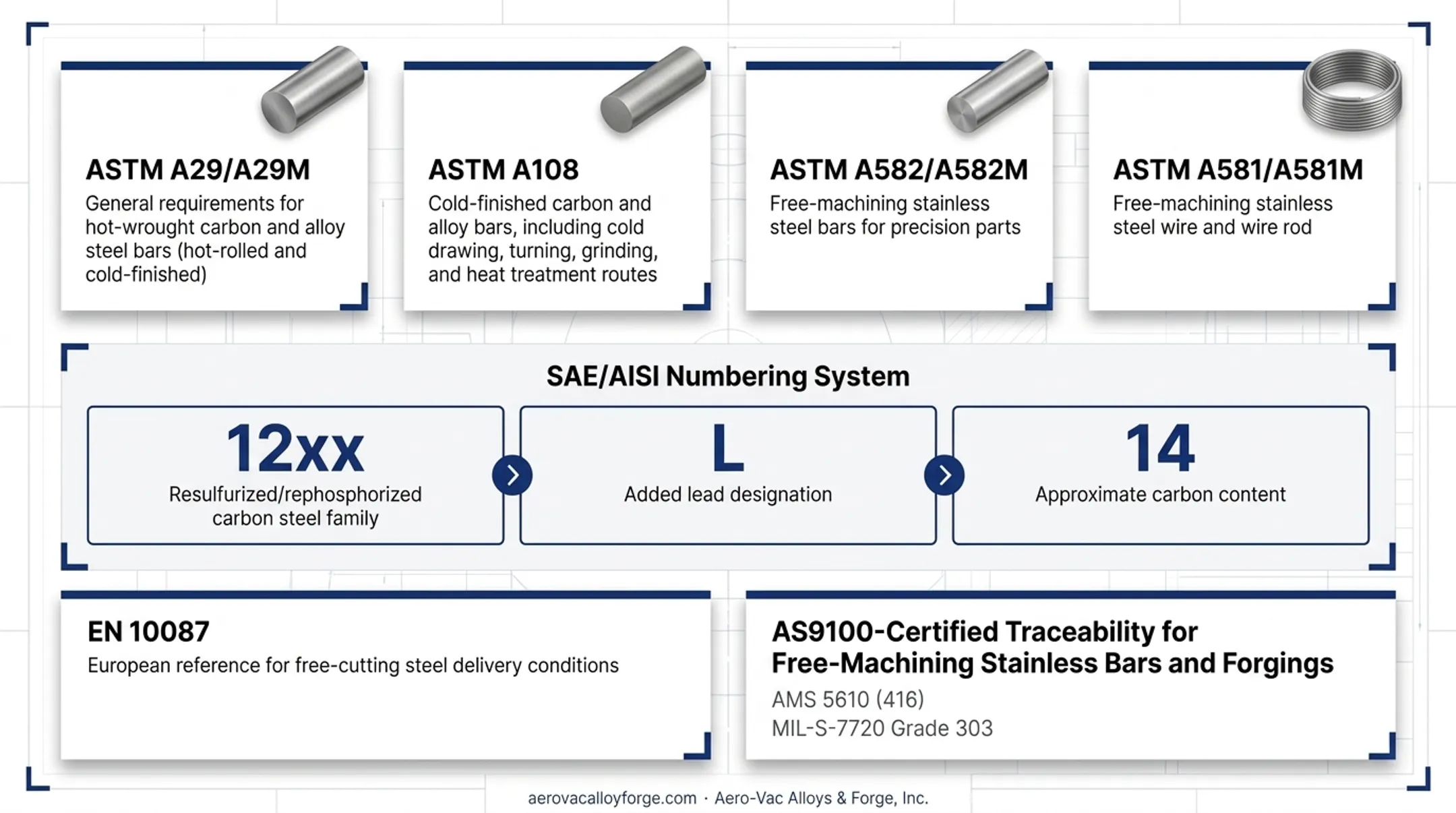

ASTM & Industry Specifications for Free-Cutting Steels
Two ASTM specifications govern most free-cutting steel bar stock sold in the US.
- ASTM A29/A29M — General requirements for hot-wrought carbon and alloy steel bars (hot-rolled and cold-finished)
- ASTM A108 — Cold-finished carbon and alloy bars, including cold drawing, turning, grinding, and heat treatment routes
Aero-Vac Alloys & Forge also documents free-machining stainless under ASTM A582/A582M (bars) and ASTM A581/A581M (wire and wire rod). Both specs target free-machining stainless for precision parts that need corrosion resistance and strong machinability.
The SAE/AISI numbering system maps directly to composition:
- First two digits identify the steel family (12xx = resulfurized/rephosphorized carbon steel)
- "L" designation signals added lead (12L14)
- Last two digits approximate carbon content
When buyers compare US grades to European equivalents, EN 10087 is the usual European reference for free-cutting steel delivery conditions.
Aerospace and defense buyers can't afford ambiguity about bar-stock chemistry or condition. As an AS9100-certified manufacturing distributor, Aero-Vac documents free-machining stainless offerings such as AMS 5610 (416) bars and forgings and MIL-S-7720 Grade 303 against recognized specs. That traceability supports the just-in-time procurement model high-volume machine shops rely on.
Key Properties and Advantages

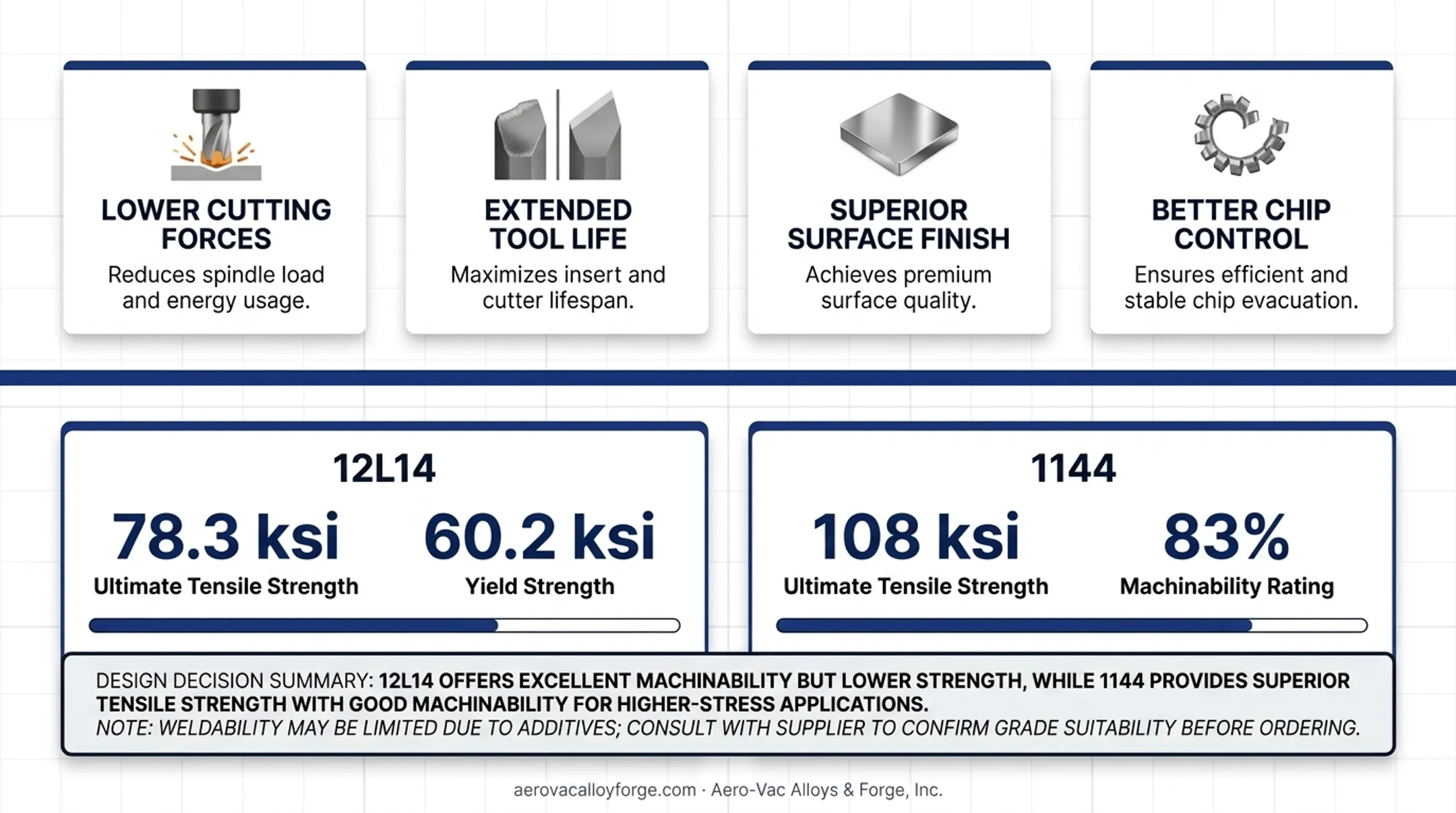

Free-cutting steel delivers four measurable benefits:
- Lower cutting forces: reduced friction from sulfide/lead inclusions means faster feed rates and lower energy use per part
- Extended tool life: internal lubrication from MnS inclusions reduces wear on cutting edges
- Superior surface finish: many applications skip secondary finishing steps entirely
- Better chip control: short, breakable chips enable unattended CNC operation overnight
The trade-off shows up clearly in the numbers. Cold-drawn 12L14 delivers roughly 78.3 ksi ultimate tensile strength and 60.2 ksi yield strength, solid for precision hardware but not comparable to a structural alloy.
Cold-finished 1144, by contrast, reaches 108 ksi ultimate tensile strength while retaining its 83% machinability rating. Added carbon and manganese raise strength without fully giving up free-cutting behavior.
That's the core design decision every buyer faces:
Low-carbon grades like 12L14 maximize machinability at the expense of strength. Medium-carbon grades like 1144 give up some machinability to gain load capacity.
Weldability also drops with sulfur and lead content. The same inclusions that ease cutting create porosity risk in welds. If a part needs both machinability and post-weld assembly, confirm the grade with your supplier before ordering.
Common Applications and Industries
Free-cutting steels show up wherever high-volume precision machining meets tight tolerances.
- Automotive: bolts, shafts, bushings, and fittings produced on automatic screw machines
- Fasteners and hardware: gears, pins, studs, and precision components running through CNC turning cells
- Aerospace and defense: non-structural connectors, fittings, and small precision components
- Medical devices: 420F and 416 grades for surgical instruments, dental tools, and pump shafts requiring both machinability and corrosion resistance
- Power generation and heavy industry: gears, bearings, and precision fittings for equipment running continuous duty cycles
For shops on just-in-time schedules, sourcing matters as much as grade selection. Aero-Vac Alloys & Forge supplies specialty alloys to aerospace and defense customers including Boeing, Lockheed, and General Dynamics, and its in-house saw-cutting department processes both inventory and customer-supplied bar stock—cutting the outsourcing delays that stretch lead times.
Frequently Asked Questions
What are free-cutting steels?
Free-cutting steels are alloy or carbon steels modified with elements like sulfur, phosphorus, or lead to improve machinability. These additions reduce cutting forces and help chips break cleanly during high-volume machining.
What are the different grades of free-cutting steels?
Major families include leaded carbon grades (12L14), non-leaded carbon grades (1215, 1144), and stainless free-machining grades (303, 416, 430F, 420F). Each balances machinability differently against strength and corrosion resistance.
What are the ASTM specifications for free-cutting steels?
ASTM A29/A29M covers general hot-wrought bar requirements, while ASTM A108 covers cold-finished carbon and alloy bars. SAE/AISI designations like 12L14 map directly to the composition ranges these standards define.
Is leaded free-cutting steel banned or restricted?
Lead remains regulated under EU RoHS and end-of-life vehicle rules, but current exemptions allow up to 0.35% lead in steel for machining purposes through mid-2027. Lead-free alternatives continue gaining ground for regulated markets.
How do I choose the right free-cutting steel grade for my project?
Consider required strength, corrosion resistance needs, environmental regulations affecting your end market, and your machining volume. High-volume screw-machine work favors 12L14, while corrosion-exposed parts need a stainless grade like 416 or 303.
