Holding tight tolerances isn't just about a well-calibrated CNC machine. It starts before the part ever hits the spindle, with consistent, traceable raw material. This guide breaks down what "tight tolerance" actually means, how tolerance classes work, and what it takes to hold them reliably.
Key Takeaways
- Tight tolerance machining starts below ±0.005" (±0.13 mm); aerospace and medical work often run tighter
- Tolerances fall into four working categories: general, precision, high precision, and ultra precision
- Machine capability, tooling, environment, and material consistency decide whether tight tolerances hold
- Inconsistent raw stock blocks even skilled machinists from hitting spec
What Does "Tight Tolerance" Mean in CNC Machining?
A tolerance is the permitted variation between a part's designed dimension and its actual manufactured dimension. Engineers set it to control size, form, surface finish, and feature location based on what the part needs to do—not as a scorecard for machine quality.
NIST cites the ANSI Y14.5 definition: the amount by which a manufactured dimension may vary from the design dimension.
"Tight tolerance" is relative to standard capability, not a single fixed number. Common benchmarks:
- Commercial CNC: ±0.005" (±0.13mm) is a widely cited point where "tight" begins; tighter than this usually needs extra process control
- Aerospace: ±0.001" is often the practical baseline
The governing standard matters more than the label. For U.S. drawings, ASME Y14.5-2018 sets the symbols, rules, and definitions used to communicate tolerances through GD&T. ISO 2768-1 provides a comparable international framework for general linear and angular tolerances when a drawing doesn't call out individual limits. Neither standard defines "tight" as a specific number. They define how any tolerance, tight or not, gets specified and interpreted.
Why Tolerances Exist in the First Place
No manufacturing process is perfect. Every cut, every setup, every material batch introduces some variation. Tolerances exist to define how much variation a part can absorb without losing function.
This matters most in assemblies, where tolerance stacking comes into play. If five mating parts each carry a small dimensional error, those errors can accumulate across the assembly, sometimes enough to prevent parts from fitting together at all. Engineers build stack-up analysis into designs precisely to catch this before it becomes a shop-floor problem.
What Are the Main Types of Machining Tolerances?

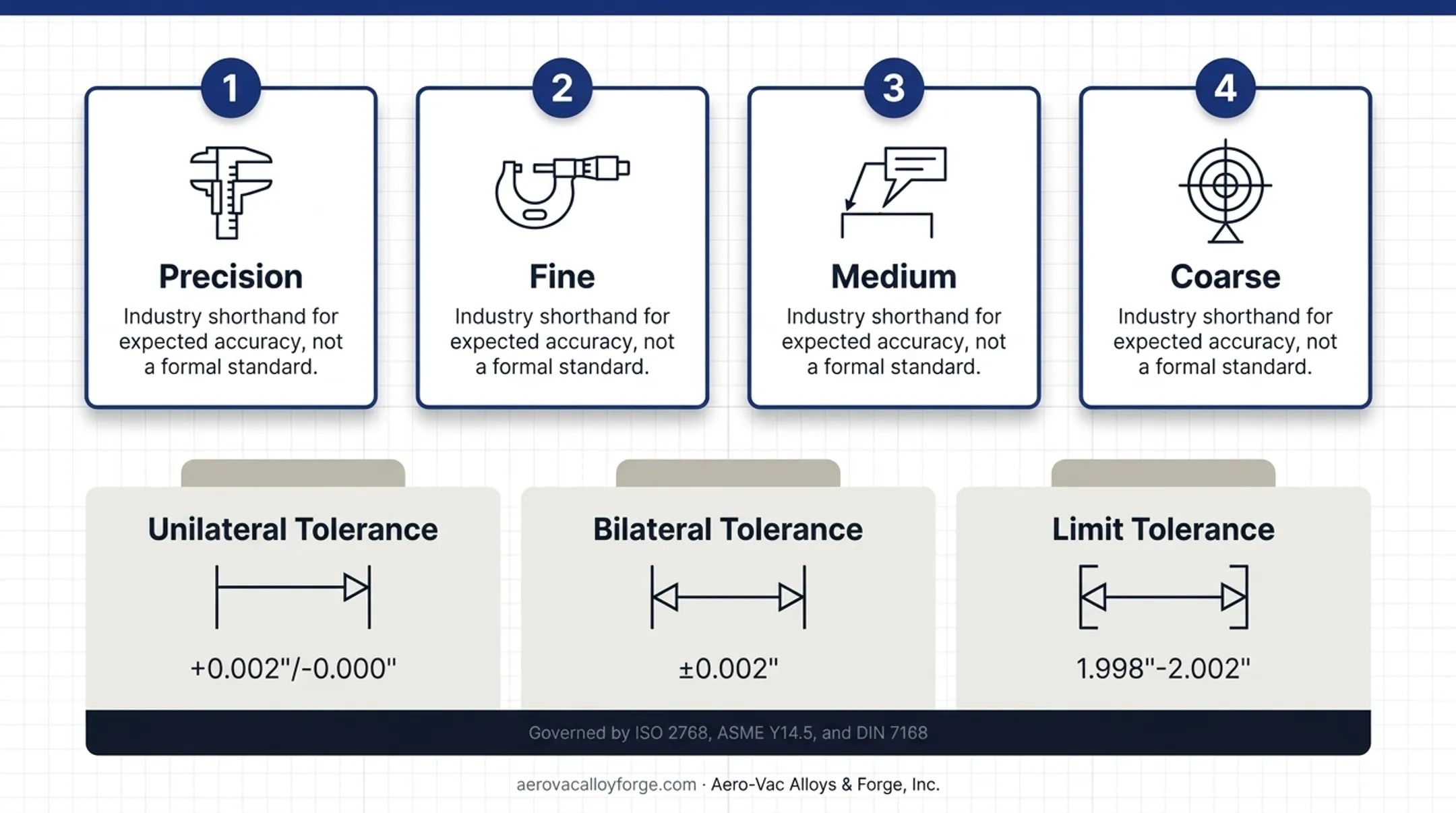

Precision machining commonly groups tolerances into four working categories. These aren't formal standards. They're industry shorthand that shops and buyers use to communicate expectations quickly.
| Classification | Typical range | Common applications |
|---|---|---|
| General purpose | ±0.005" to ±0.020" | Structural housings, brackets, non-critical fixtures |
| Precision | ±0.001" to ±0.002" | Gears, shafts, fittings requiring closer fit |
| High precision | Below ±0.001" (typically to ±0.0005") | Valve bodies, connector housings, surgical instruments, bearings |
| Ultra precision | Below ±0.0005" (down to ±0.0001" and tighter) | Semiconductor equipment, optics, research instrumentation |
Separately from those working ranges, tolerances are written in three formats:
- Unilateral tolerance: variation allowed in only one direction from the nominal (for example, +0.002"/-0.000")
- Bilateral tolerance: variation allowed in both directions (for example, ±0.002")
- Limit tolerance: expressed as a maximum and minimum dimension directly (for example, 1.998"-2.002")
Standards bodies like ISO 2768, ASME Y14.5, and DIN 7168 govern how these classifications get applied on drawings. But the actual acceptance criteria always come down to the specific feature, its function, and the datum scheme, not the label alone.
What Is the Tightest Tolerance Achievable in CNC Machining?

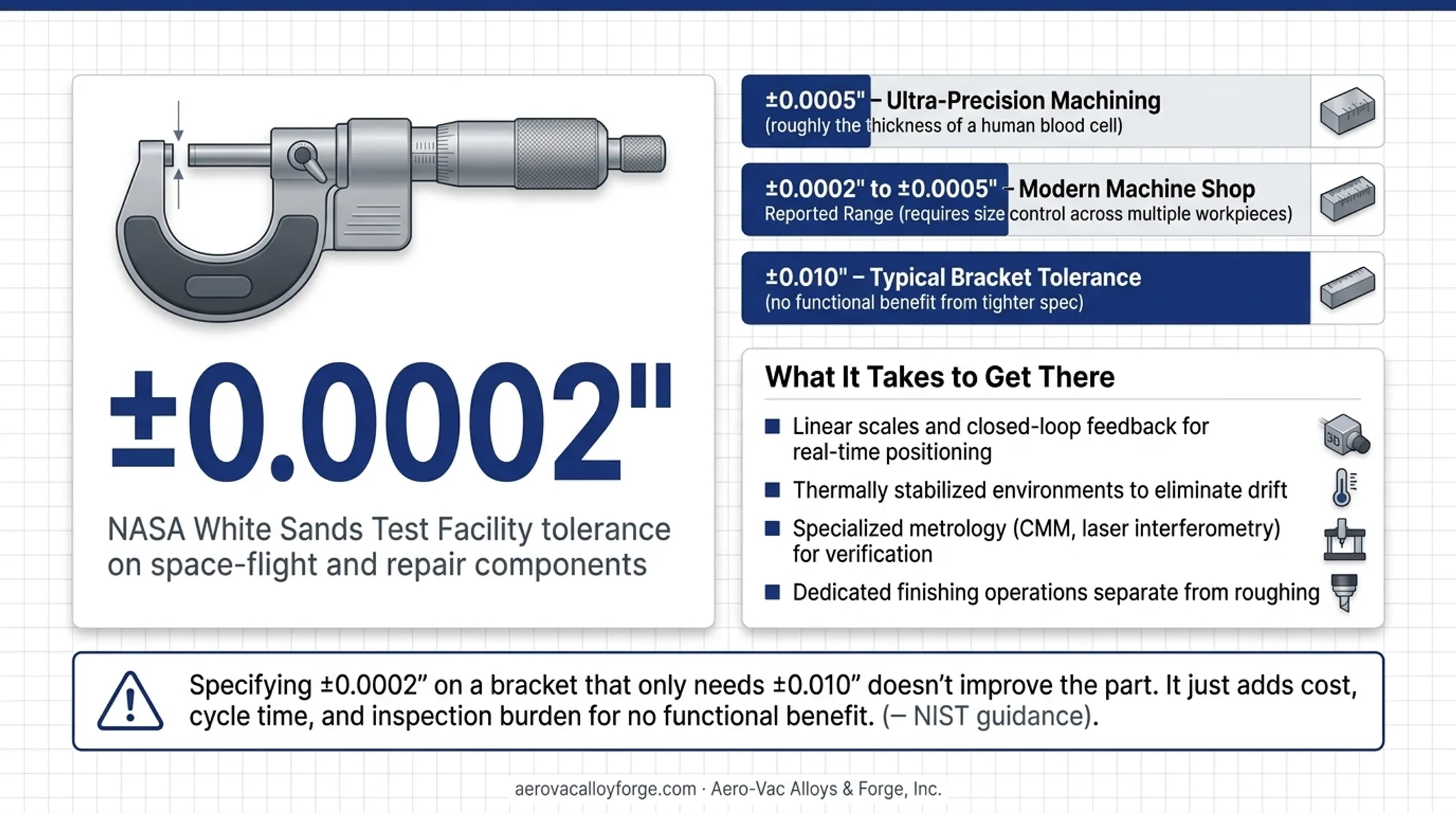

Ultra-precision machining can hold tolerances under ±0.0005", roughly the thickness of a human blood cell. NASA's White Sands Test Facility reports its CNC milling and turning machines commonly hold ±0.0002" (±5 micrometers) on space-flight and repair components. Modern Machine Shop reports that many production shops regularly hold ±0.0002" to ±0.0005", though this level requires deliberate attention to size control across multiple workpieces, not just a single part. Getting there requires:
- Linear scales and closed-loop feedback for real-time positioning
- Thermally stabilized environments to eliminate drift
- Specialized metrology (CMM, laser interferometry) for verification
- Dedicated finishing operations separate from roughing None of this is standard equipment in a typical production shop. Reaching sub-half-thousandth tolerances on a machine built for general work simply isn't realistic without significant investment. The tightest possible tolerance isn't always the right target. NIST guidance notes that only critical features generally need tighter tolerances, and identifying which features actually require it is key to controlling manufacturing cost. Specifying ±0.0002" on a bracket that only needs ±0.010" doesn't improve the part. It just adds cost, cycle time, and inspection burden for no functional benefit.
Why Tight Tolerances Matter Across Critical Industries

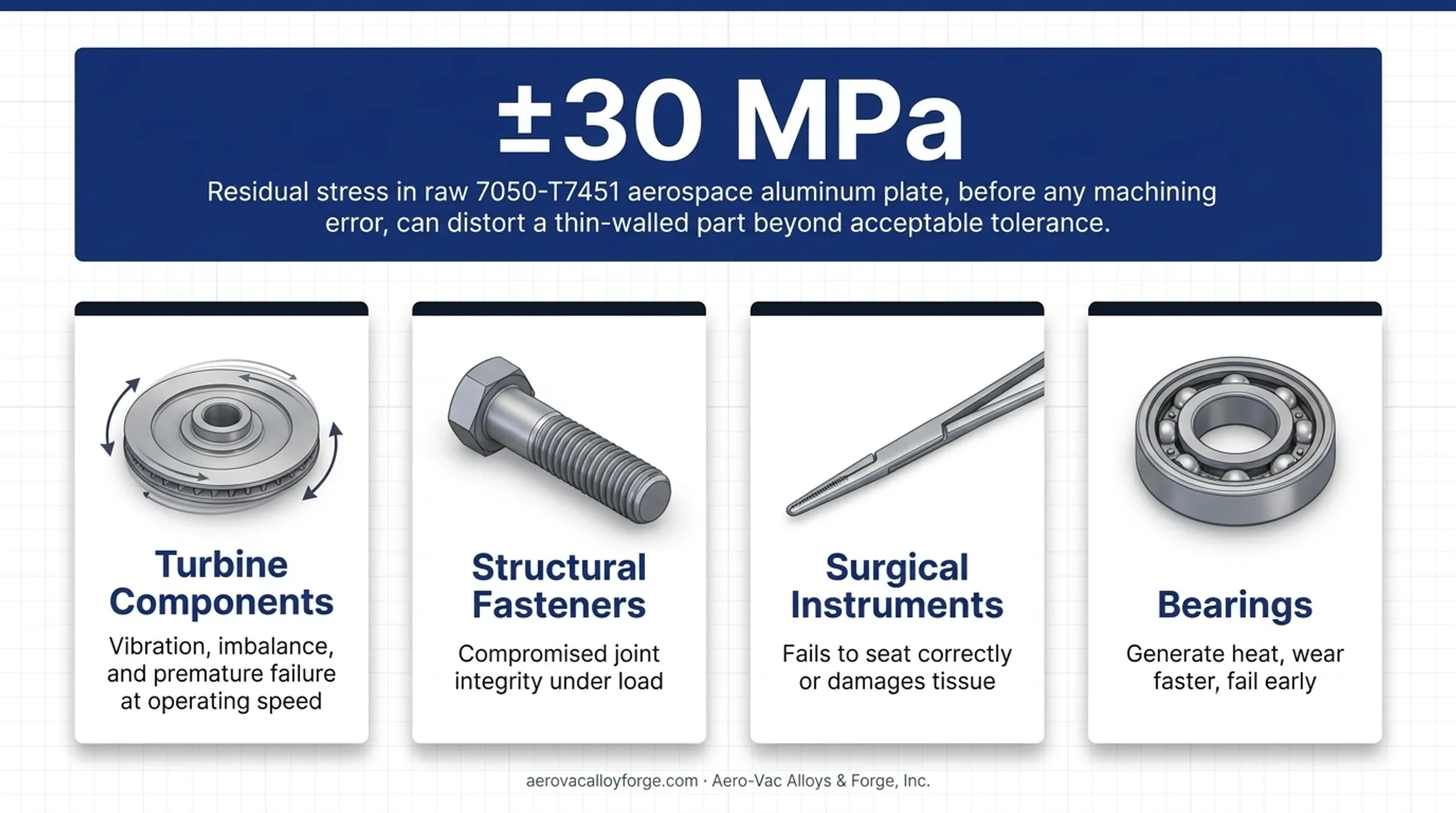

In aerospace, defense, and medical manufacturing, a tolerance failure isn't an inconvenience. It's potentially catastrophic.
- Turbine components that run out of round even slightly can cause vibration, imbalance, and premature failure at operating speed.
- Structural fasteners that don't hold precise thread and shank dimensions compromise joint integrity under load.
- Surgical instruments that vary from spec can fail to seat correctly or damage tissue.
- Bearings with dimensional drift generate heat, wear faster, and fail early.
Research on 7050-T7451 aerospace aluminum found that residual stress of roughly ±30 MPa in the raw plate—before any machining error—can distort a thin-walled part beyond acceptable tolerance. A perfectly capable machine can still produce an out-of-spec part if the starting material carries internal stress or inconsistency.
That is why raw material sourcing belongs in the tolerance conversation, not outside it. A machinist can compensate for a lot, but not for stock that fails its stated specification.
Aero-Vac Alloys & Forge, an ISO 9001 and AS9100 certified distributor supplying alloy steels, titanium, and nickel alloys to aerospace and defense manufacturers, focuses on consistent, traceable material so the shop starts from a known baseline instead of an unknown variable.
Factors That Affect Your Ability to Hold Tight Tolerances
Several variables determine whether a shop can hold a tight spec consistently, not just on a first-piece inspection but across a full production run.
Machine and tooling factors:
- Spindle precision and rigidity under cutting load
- Tool wear — external surfaces grow and internal surfaces shrink as the edge degrades
- Thermal expansion of both the machine structure and the material being cut
Material factors:
- Harder alloys (titanium, hardened steel, stainless, high-temp nickel) work-harden under heat and pressure, speeding tool wear and loosening dimensional control
- Softer alloys like aluminum machine more predictably, though residual stress from prior processing can still distort the part
- Residual stress and work hardening show up most on thin walls, deep pockets, and interrupted cuts
Sourcing factor: Starting with certified, consistent-spec stock removes a major variable before the first cut.
- Documented material against specs such as AMS 5663 (nickel alloy 718) and MIL-H-6875 (stainless heat treatment)
- Traceable starting stock from suppliers like Aero-Vac, so machinists are not guessing chemistry or condition

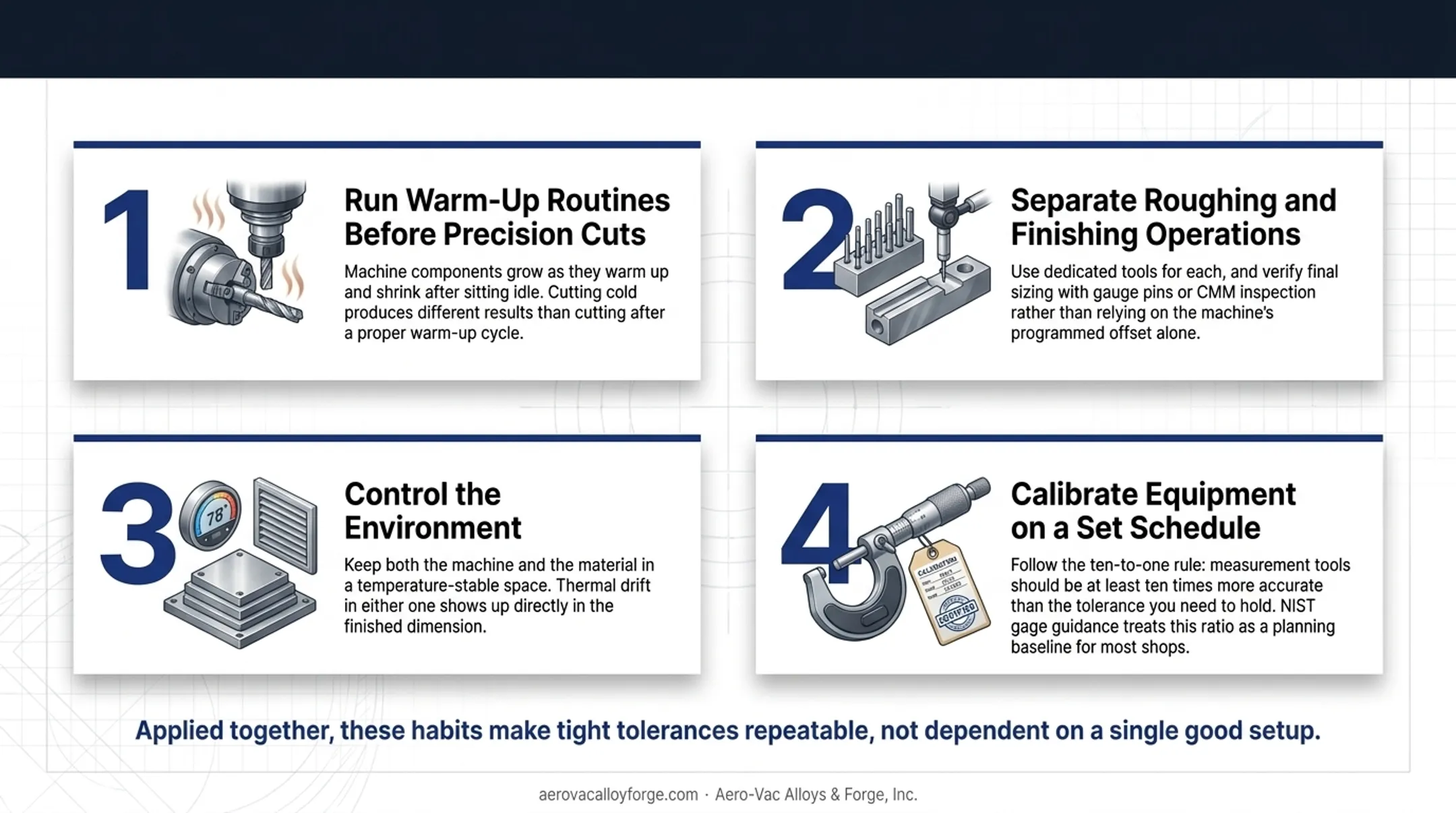

Best Practices for Achieving Tight Tolerances
Holding tight tolerances reliably comes down to process discipline, not just equipment specs.
- Run warm-up routines before precision cuts. Machine components grow as they warm up and shrink after sitting idle. Cutting cold produces different results than cutting after a proper warm-up cycle.
- Separate roughing and finishing operations. Use dedicated tools for each, and verify final sizing with gauge pins or CMM inspection rather than relying on the machine's programmed offset alone.
- Control the environment. Keep both the machine and the material in a temperature-stable space. Thermal drift in either one shows up directly in the finished dimension.
- Calibrate equipment on a set schedule. Follow the ten-to-one rule: measurement tools should be at least ten times more accurate than the tolerance you need to hold. NIST gage guidance treats this ratio as a planning baseline for most shops.
Applied together, these habits make tight tolerances repeatable—not dependent on a single good setup.
Frequently Asked Questions
What does "tight tolerance" mean?
Tight tolerance refers to dimensional variation tighter than standard machining capability, generally below ±0.005" (±0.13mm). Aerospace and medical applications often treat ±0.001" as the practical starting point instead.
What are the main types of tolerances?
Machining tolerances are commonly grouped into general purpose, precision, high precision, and ultra precision classes. These range from ±0.020" down to under ±0.0005", depending on the application.
What is the tightest tolerance achievable in CNC machining?
Ultra-precision machining can reach under ±0.0005" using specialized equipment and thermally controlled environments. This level is typically reserved for semiconductor, optics, and research applications, not standard production work.
Why does material quality matter for holding tight tolerances?
Inconsistent stock, internal residual stress, or impurities can cause unpredictable machining behavior, even on a well-calibrated machine. A part can distort during or after cutting if the raw material itself isn't stable.
How much more expensive is tight tolerance machining?
Costs rise as tolerances tighten, driven by slower cutting speeds, specialized tooling, more frequent inspection, and sometimes secondary operations like grinding. Specifying the loosest tolerance that still meets function helps control that cost.
