This guide covers how the process works, the benefits it delivers, the alloys typically used, and the industries that depend on it. Demand for near net shape components keeps climbing across aerospace, defense, energy, and heavy industry, driven by tighter budgets and stricter performance requirements.
Key Takeaways
- Cuts machining time, material waste, and lead time by forming parts close to final dimensions
- Controlled grain flow delivers higher fatigue resistance and strength than castings or billet-machined parts
- Material choice and supplier expertise drive the largest share of cost savings
- Source certified, traceable alloy stock before forging begins—it sets cost, quality, and schedule
What Is Near Net Shape Forging?
Near net shape forging shapes heated metal inside dies until it reaches a form very close to the finished part. Only light finishing work remains: trimming, drilling critical holes, or machining sealing surfaces.
"Near net shape" isn't the same as "net shape." Net shape parts come out of the die ready for service, with no further machining required. Most forgings fall into the "near" category instead, because tolerances, threads, and precision datums usually still need finishing work. The goal is simple: get the part close to its final contour, then confine cutting to finishing steps.
For procurement and engineering teams, that means buying a part that needs minimal machining—not a raw shape that requires extensive metal removal.
How It Differs From Casting and Billet Machining
- Casting shapes metal by pouring it molten into a mold. There's no plastic deformation, so there's no grain flow control.
- Machining from billet cuts a finished shape out of bar or plate stock. This wastes significant material and cuts across the existing grain structure rather than aligning with it.
- Near net shape forging plastically deforms the metal, causing grains to elongate and follow the part's geometry.
This approach applies lean manufacturing to metal shaping: less scrap, less energy spent removing material, and fewer machine hours per part.
How the Near Net Shape Forging Process Works
The basic mechanics are straightforward. A heated billet is placed between dies, and force pushes the metal to fill the die cavity while aligning the grain structure with the part's shape.

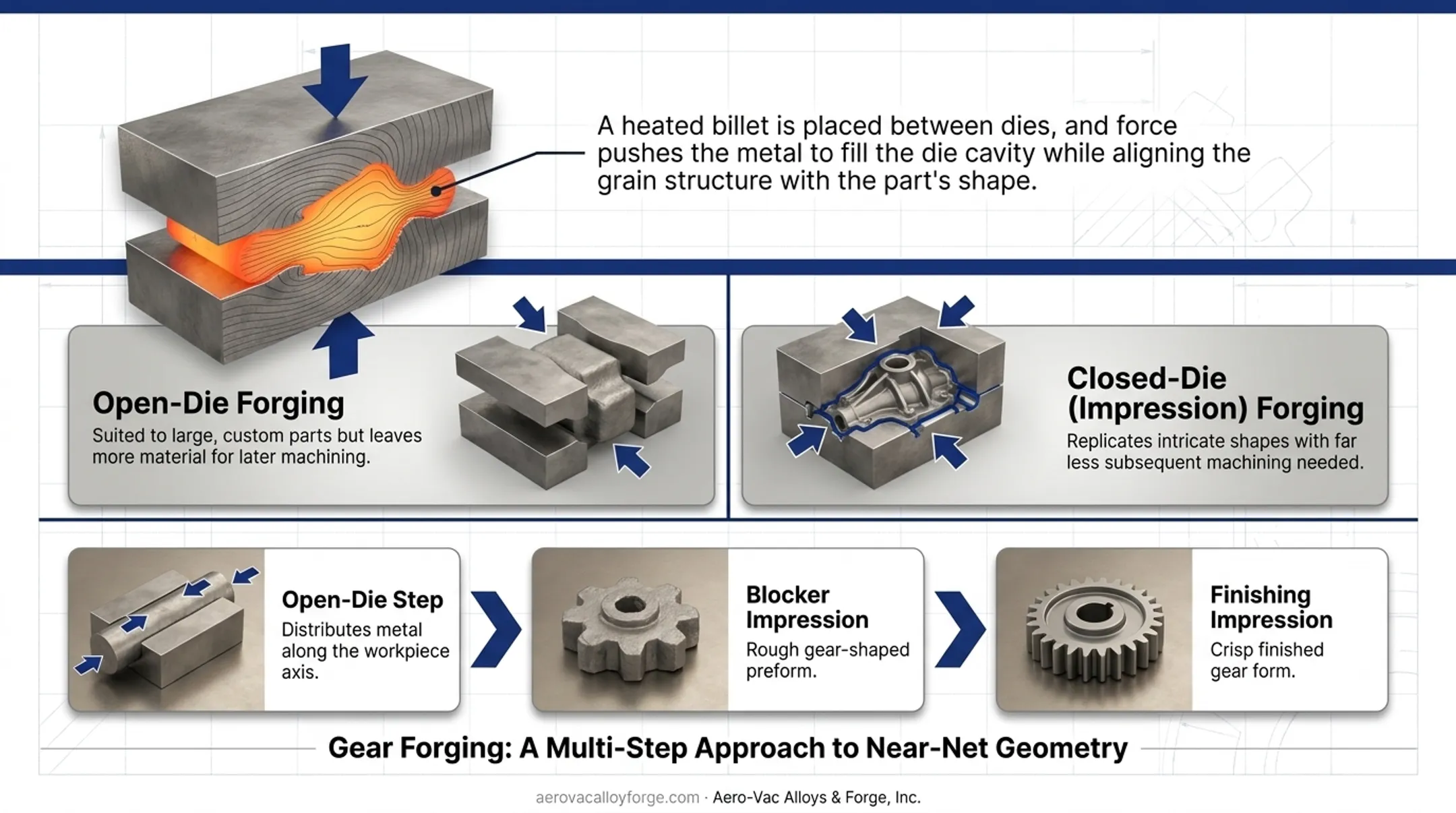

Open-die vs. closed-die forging determines how close to net shape the part ends up:
- Open-die forging uses dies that don't fully enclose the workpiece. It's suited to large, custom parts but leaves more material for later machining.
- Closed-die (impression) forging fully encloses the workpiece, replicating intricate shapes with far less subsequent machining needed.
For gear forging specifically, published research describes a multi-step approach: an initial open-die step distributes metal along the workpiece axis, followed by blocker and finishing impressions to reach the near-net geometry.
Simulation Before Steel Ever Gets Hot
Before cutting any tooling, engineers run finite-element analysis (FEA) to model material flow, predict underfill or laps, and optimize die design. A 2023 peer-reviewed study on a pinion-shaft forging built and validated a DEFORM 3D process model comparing two near net shape die designs.
The design that incorporated gear teeth directly used 10-15% less feedstock than the alternative, though it also produced higher die loads and faster tooling wear. Material savings and die life often trade off against each other.
Why a Small Margin Gets Left On Purpose
Nobody forges a part to exact final dimensions. A small "over-thickness" or machining allowance is built in on purpose so finishing cuts leave clean surfaces.

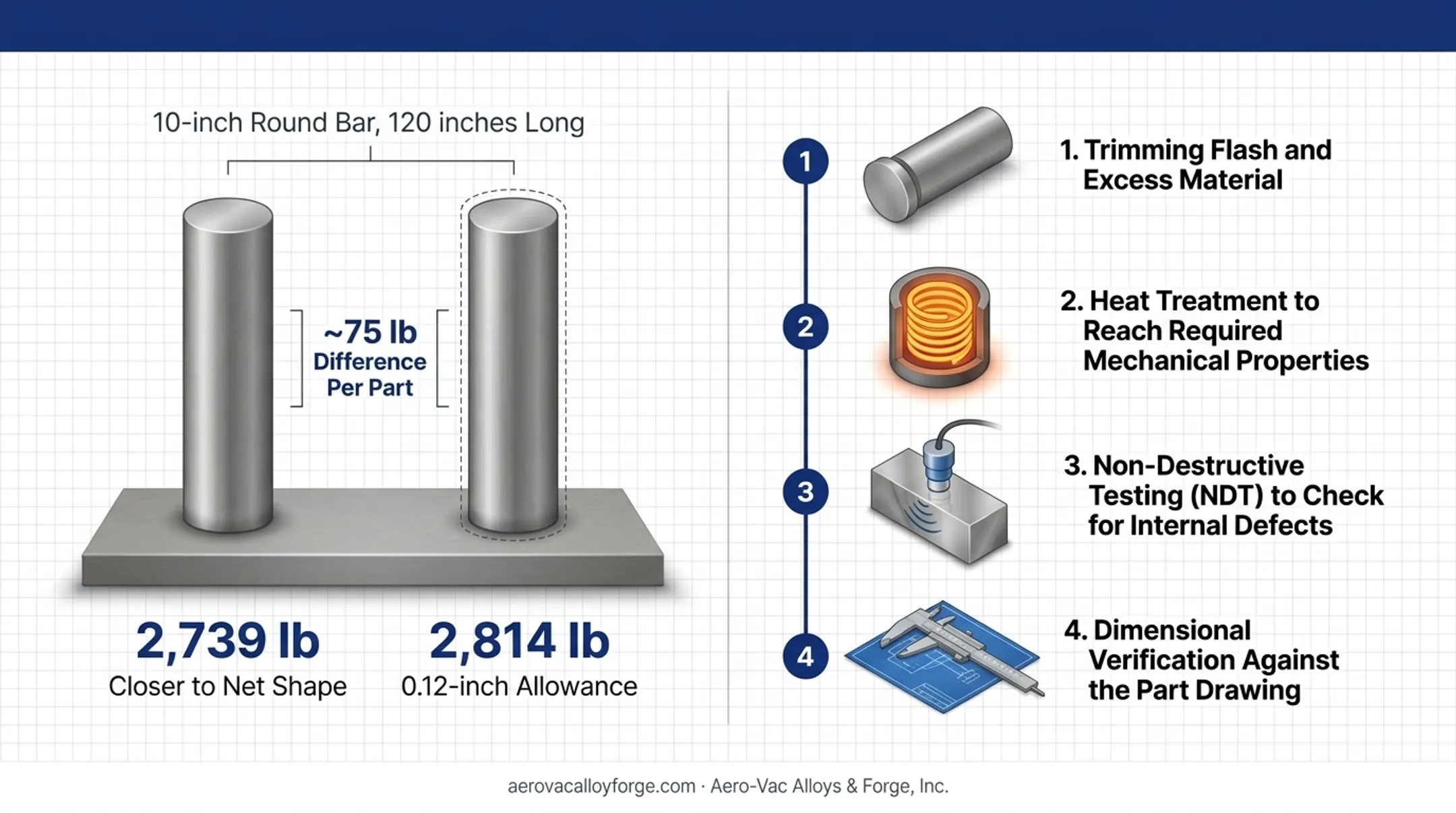

One 2024 supplier example shows why the margin size counts: a 10-inch round bar, 120 inches long, weighed roughly 2,739 lb when forged closer to net shape versus 2,814 lb with a 0.12-inch allowance. That is about 75 lb on a single part. Multiply the difference across a production run of expensive alloy, and allowance size matters.
Post-forging steps typically include:
- Trimming flash and excess material
- Heat treatment to reach required mechanical properties
- Non-destructive testing (NDT) to check for internal defects
- Dimensional verification against the part drawing

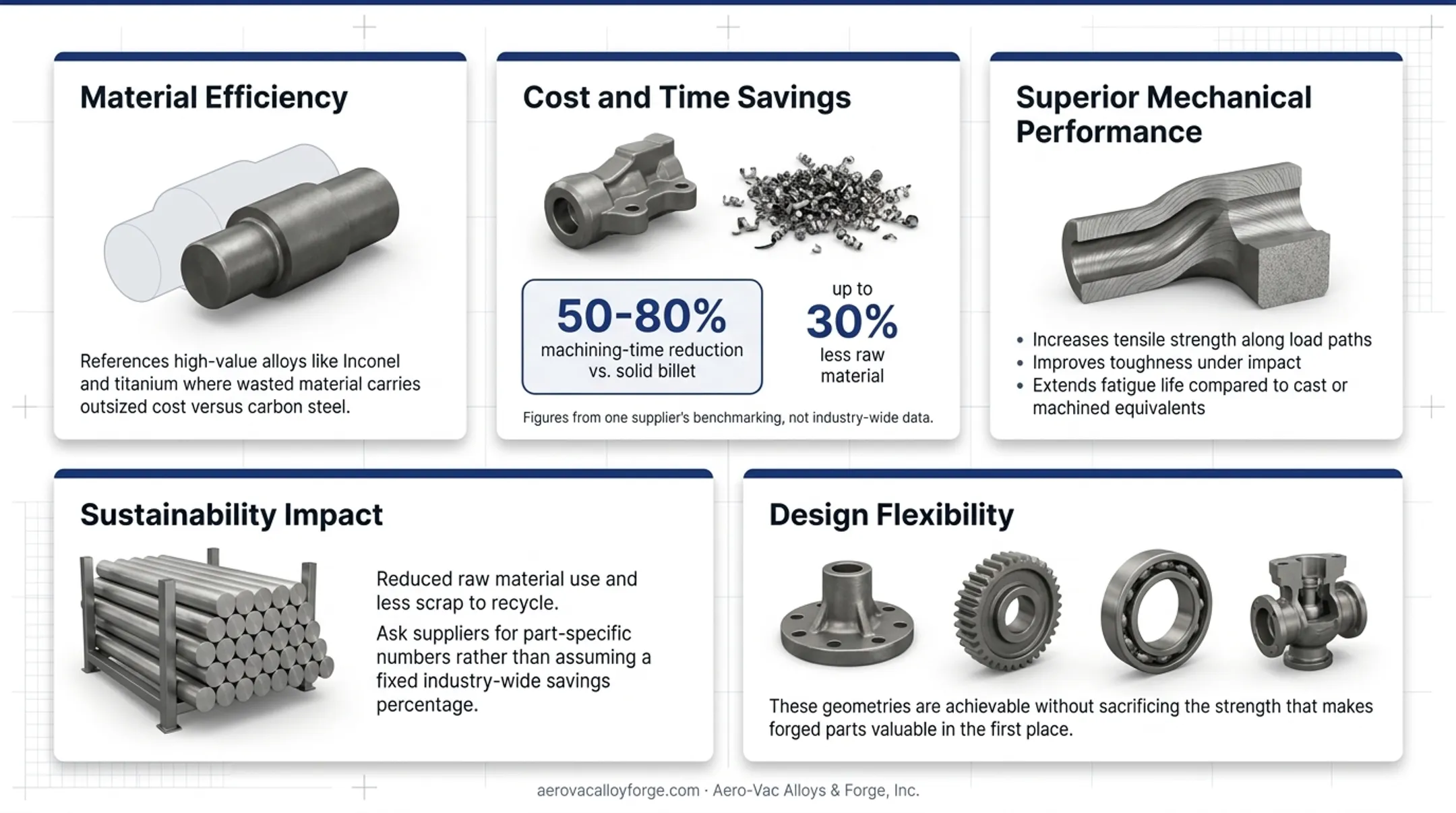

Key Benefits of Near Net Shape Forging
Material efficiency cuts waste at the source. Buying less raw stock and scrapping less of it matters for high-value alloys like Inconel or titanium, where a pound of wasted material can cost far more than the equivalent pound of carbon steel.
Cost and time savings build on that efficiency. One supplier reports machining-time reductions of 50-80% versus solid billet, plus up to 30% less raw material—figures from that supplier's own benchmarking, not independent industry-wide data.
Fewer machine hours and less tool wear still translate into faster turnaround.
Superior mechanical performance shows up in the finished part. Controlled grain flow:
- Increases tensile strength along load paths
- Improves toughness under impact
- Extends fatigue life compared to cast or machined equivalents
Sustainability impact comes from using less raw material and generating less scrap to recycle. Ask suppliers for part-specific numbers rather than assuming a fixed industry-wide savings percentage.
Design flexibility supports complex part families. Near net shape forging enables geometries such as flanges, gears, bearings, and valve bodies without sacrificing the strength that makes forged parts valuable in the first place.
Materials and Alloys Used in Near Net Shape Forging
Alloy selection comes down to the application's temperature, corrosion, and load requirements. The most common families include:
| Alloy Family | Examples | Typical Use Case |
|---|---|---|
| Carbon/alloy steel | 4140, 4340 | Shafts, gears, structural forgings |
| Stainless steel | 17-4PH, 410 | Pumps, valves, turbine components |
| Nickel superalloys | Inconel 718, Inconel 625 | Jet engines, gas turbines |
| Titanium | Ti-6Al-4V | Airframes, discs, hubs |

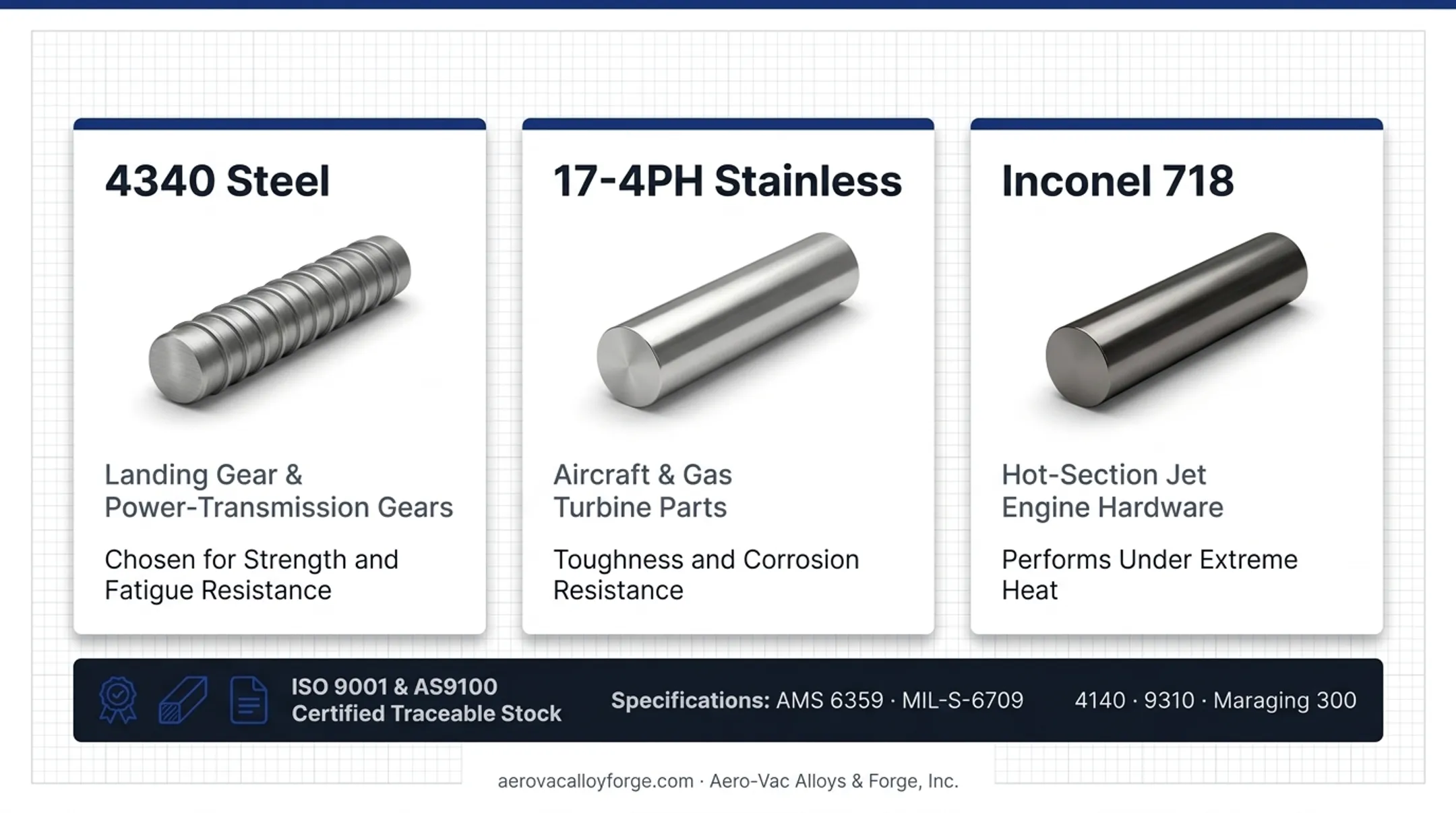

A few grades show up again and again:
- 4340 steel: Landing gear and power-transmission gears, chosen for strength and fatigue resistance
- 17-4PH stainless: Aircraft and gas turbine parts that need toughness and corrosion resistance
- Inconel 718: Hot-section jet engine hardware under extreme heat
None of these properties transfer automatically from bar stock to a finished forging. The exact ASTM, AMS, or SAE specification and heat-treatment condition still need to be nailed down before quoting.
That's where sourcing gets critical. Aero-Vac Alloys & Forge, an ISO 9001 and AS9100 certified distributor, supplies forging-grade alloy steels and superalloy stock across these families, including 4340, 4140, 9310, Inconel 718, and Maraging 300. Material is available in bar, billet, and plate forms tied to specifications such as AMS 6359 and MIL-S-6709.
Getting the right certified, traceable stock in hand before forging starts is the first real step toward hitting cost and quality targets.

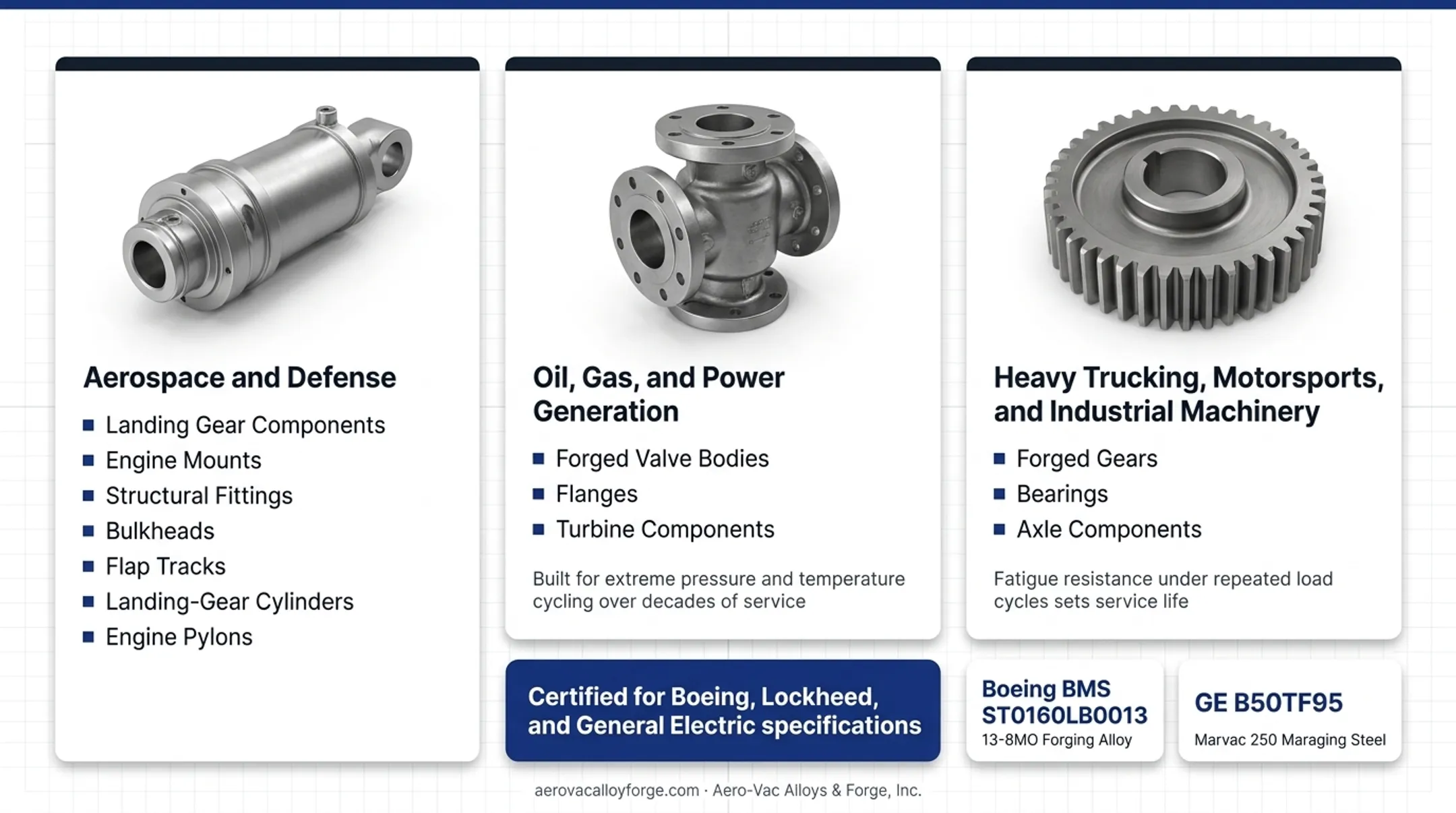

Industries and Applications Relying on Near Net Shape Forgings
Near net shape forgings serve industries where component reliability and certified material traceability are non-negotiable:
- Aerospace and defense — landing gear components, engine mounts, structural fittings, bulkheads, flap tracks, landing-gear cylinders, and engine pylons
- Oil, gas, and power generation — forged valve bodies, flanges, and turbine components built for extreme pressure and temperature cycling over decades of service
- Heavy trucking, motorsports, and industrial machinery — forged gears, bearings, and axle components where fatigue resistance under repeated load cycles sets service life
These are the same high-stakes sectors—Boeing, Lockheed, and General Electric among them—where certified material sourcing and full documentation are required. Aero-Vac supplies alloys that meet these specs, including Boeing BMS ST0160LB0013 for 13-8MO forging alloy and GE B50TF95 for Marvac 250 maraging steel.
Choosing the Right Material Partner for Near Net Shape Forging Projects
Forgers and manufacturers need a distributor who can deliver exact specifications, odd sizes, and both small and large quantities without long mill lead times. When a production run is waiting on a specific alloy heat, waiting weeks isn't an option.
A live sales team beats an automated ordering portal for custom cuts and urgent just-in-time needs. Aero-Vac starts with a rapid RFQ routed to a knowledgeable representative who checks inventory and, if needed, sources the right alloy quickly rather than defaulting to standard mill lead times.
Look for a partner that can:
- Handle odd-size and custom-cut orders with in-house saw cutting
- Fill exact alloy specifications without long mill waits
- Support both small quantities and large production runs
- Provide order tracking from processing through shipment
Global projects raise the stakes on logistics. Aero-Vac supports worldwide distribution and export, with tracking that keeps forging schedules visible when material crosses borders or feeds a tight production window.
Frequently Asked Questions
What are near net shapes?
Near net shapes are components produced very close to their final dimensions through forging, casting, or additive methods. They require only minimal finishing machining rather than extensive metal removal.
What is the difference between net shape and near net shape?
Net shape parts need no further processing after production. Near net shape parts require light finishing, such as trimming, drilling, or machining critical surfaces, to meet final tolerances.
Why is grain flow important in forged parts?
Grain flow aligns with the part's geometry and load paths during forging, improving fatigue resistance and load-bearing strength. Cast or machined parts don't get this same directional grain structure.
How much material and cost can near net shape forging save?
One peer-reviewed study found a 10-15% feedstock reduction for a specific pinion-shaft design, while a supplier benchmark reports up to 50-80% less machining time. Actual savings depend heavily on part geometry and volume.
What industries benefit most from near net shape forging?
Aerospace, defense, oil and gas, and power generation see the biggest advantages, since these industries need high-strength, fatigue-resistant components under strict certification requirements.
What alloys are commonly used in near net shape forging?
Common choices include alloy steels like 4140 and 4340, stainless steels like 17-4PH and 410, nickel superalloys like Inconel 718, and titanium alloys like Ti-6Al-4V.
